Agent Platform OCI - Developer Guide
This guide teaches you how to implement a new agent from agent_template_backend, using the framework as a corporate execution engine.
The central idea is simple:
Framework = reusable engine
Agent = specific business rule
MCP Server = standardized boundary with external systems
Config YAML = changeable behavior without recompiling code
IC/NOC/GRL = business, operation and governance traceability
The goal is for each new agent to implement only its domain logic — prompts, business rules, tools, schemas, and specific nodes — without recreating engines that already belong to the framework.
Note: If you want to test the DEMO, go to the Section 17 and 18.
SPECs / SDDs of the Agent Platform OCI
The Agent Platform OCI documentation is organized into numbered SPECs/SDDs, each covering an architectural, operational, or governance area of the platform. The objective is to standardize the construction, evolution, operation, and certification of enterprise agents based on the Agent Framework OCI.
/agent_platform_oci/specs
SPEC-001 — Architecture
Defines the overall platform architecture, its main components, repository structure, logical and physical architecture, core contracts, primary flow, non-functional requirements, and acceptance criteria.
SPEC-002 — Agent Runtime
Describes the conversational execution runtime for agents, including LangGraph, state management, memory, checkpoints, routing, supervisor, BusinessContext, MCP integration, RAG, events, and error handling.
SPEC-003 — Agent Gateway
Specifies the gateway responsible for centralizing LLM and embedding calls, including request/response contracts, profiles, providers, OCI authentication, fallback, rate limiting, metrics, security, and observability.
SPEC-004 — MCP Gateway
Defines the MCP integration model, including the tool catalog, routing, execution, authorization, caching, retries, timeouts, parameter mapping, events, metrics, and standardized tool responses.
SPEC-005 — Guardrails
Describes the platform guardrail model, covering input, output, tool, RAG, and final response policies. It also defines phases, execution modes, guardrail types, LLM profiles, base codes, events, tests, and acceptance criteria.
SPEC-006 — Evals
Defines the platform evaluation layer, including online evaluation, offline evaluation, regression testing, certification, datasets, judges, metrics, CLI, API, result persistence, and evidence publication.
SPEC-007 — Observability
Specifies the observability model, including logs, traces, metrics, Langfuse, OpenTelemetry, IC/NOC/GRL events, dashboards, alerts, data masking, and operational evidence generation.
SPEC-008 — Deployment
Describes the platform packaging and deployment process, including deployable components, CI/CD pipelines, Kubernetes/OKE, Docker, secrets, OCI authentication, health checks, rollback, smoke tests, and certification stages.
SPEC-009 — Channel Gateway
Defines the channel gateway responsible for normalizing external payloads into the platform's canonical contract and translating responses for each channel. Covers operating modes, idempotency, versioning, security, errors, and anti-patterns.
SPEC-010 — Agent Development
Describes the standard for agent development using templates, YAML configuration, BusinessContext, MCP, guardrails, judges, RAG, memory, observability, and evaluations. It also differentiates framework and agent responsibilities.
SPEC-011 — Governance Model
Defines the platform governance model, including ownership, roles and responsibilities, RACI, agent governance, prompts, guardrails, judges, models, MCP, datasets, approval processes, and mandatory evidence.
SPEC-012 — Canonical Contracts
Documents the platform's canonical contracts, including GatewayRequest, ChannelResponse, BusinessContext, AgentState, ToolInvocation, ToolResult, LLMRequest, LLMResponse, EvaluationRun, and EventEnvelope. It also defines contract evolution rules.
SPEC-013 — Versioning and Compatibility Model
Defines the platform versioning and compatibility model, including Semantic Versioning, versioned artifacts, contract versioning, compatibility matrices, deprecation policies, migration, and rollback.
SPEC-014 — Templates and Agent Creation Model
Describes the official templates and the agent creation model from scratch. Explains what belongs to the framework, what belongs to the agent, the standard structure, and the step-by-step process for copying templates, defining scope, registering agents, configuring routes, tools, BusinessContext, prompts, datasets, and tests.
SPEC-015 — Adoption and Eligibility Criteria
Defines clear platform adoption criteria, including recommended and non-recommended use cases, business entry criteria, architecture, security, quality, operations, exception processes, and adoption checklists.
SPEC-016 — Agent Development Lifecycle
Describes the complete agent development lifecycle, from discovery and scope definition through design, prompting, MCP, RAG, implementation, testing, evaluation, certification, validation, and production.
SPEC-017 — Release Management and CI/CD
Defines the release and CI/CD model, including standard pipelines, stages, release artifacts, quality gates, rollback strategies, common errors, and acceptance criteria.
SPEC-018 — Security and Identity Model
Specifies the platform security and identity model, covering authentication, Workload Identity, authorization, secrets, data protection, MCP security, channel security, auditing, and acceptance criteria.
SPEC-019 — Evaluation and Certification Framework
Details the evaluation and certification framework, including evaluation architecture, metrics, datasets, EvaluationRun, CLI, certification processes, mandatory evidence, and acceptance criteria.
SPEC-020 — Operational Readiness and SRE Model
Defines the platform operational readiness and SRE model, including managed components, health checks, readiness, SLOs, metrics, dashboards, alerts, runbooks, incident management, capacity planning, and production checklists.

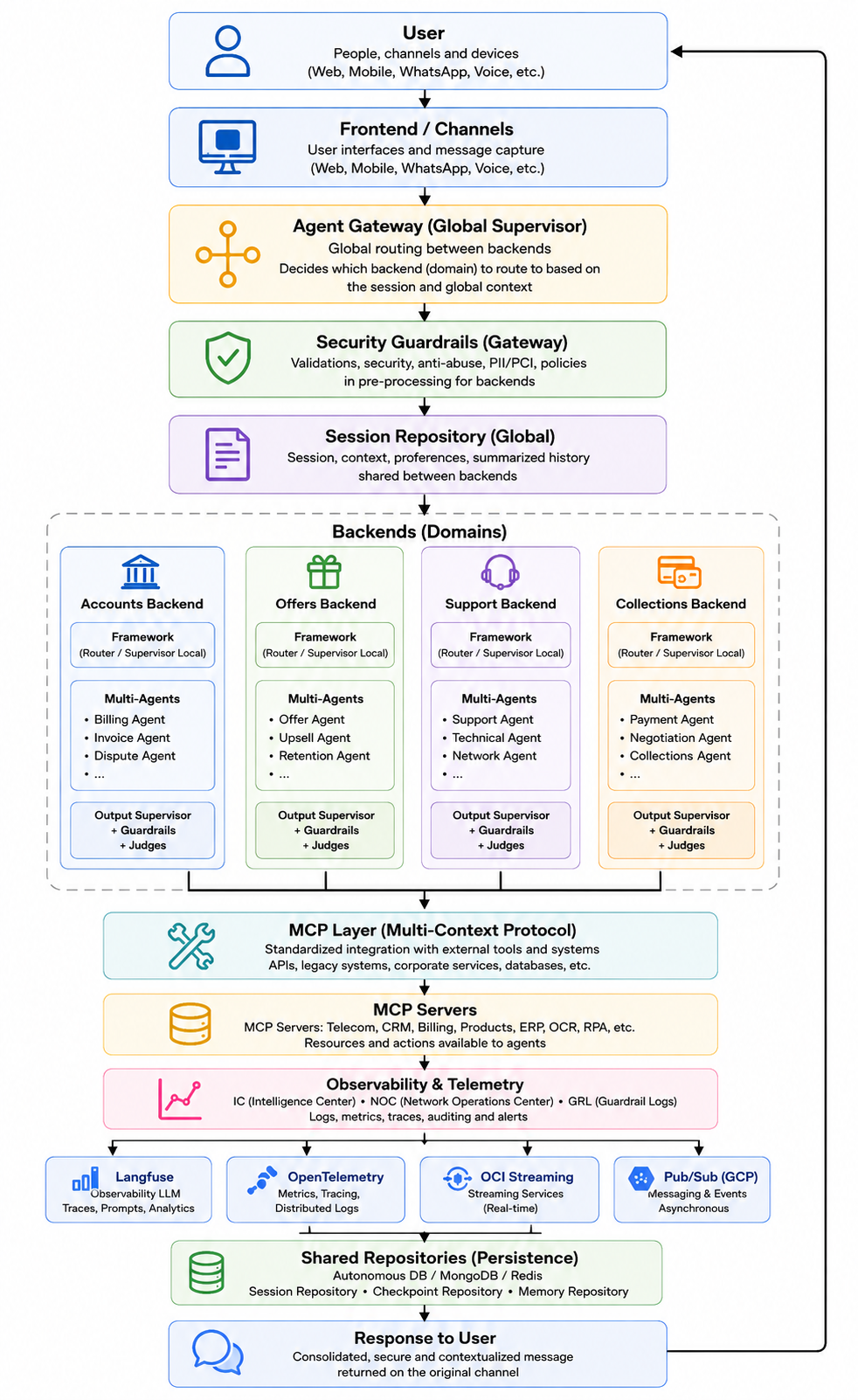

1. Architecture overview
The template separates what is generic from what is specific.
agent_template_backend/
├── app/
│ ├── main.py # FastAPI API, gateway, session, SSE, and workflow input
│ ├── state.py # LangGraph shared state contract
│ ├── workflows/
│ │ └── agent_graph.py # Enterprise workflow with router, guardrails, agents, judges, and persistence
│ ├── agents/
│ │ ├── runtime.py # Common resources for agents: MCP, RAG, cache, IC, LLM
│ │ ├── billing_agent.py # Example of an invoice agent
│ │ ├── product_agent.py # Example of a product agent
│ │ ├── orders_agent.py # Example of an order agent
│ │ └── support_agent.py # Example of a support agent
│ └── examples/ # Examples of IC, NOC, GRL, MCP, and observer
├── config/
│ ├── agents.yaml # Record of available agents
│ ├── routing.yaml # Intents, keywords, fallback and route decision
│ ├── tools.yaml # Catalog of tools available for the backend
│ ├── mcp_servers.yaml # Local MCP endpoints
│ ├── mcp_servers.docker.yaml # MCP endpoints in Docker Compose
│ ├── mcp_parameter_mapping.yaml # Mapping between canonical keys and tool parameters
│ ├── identity.yaml # Business identity resolution
│ ├── guardrails.yaml # Global guardrails
│ ├── judges.yaml # Global judges
│ ├── prompt_policy.yaml # Global prompt policy
│ └── agents/<agent_id>/ # Isolated settings by agent
├── data/
│ └── agent_framework.db # Local sample database, when applicable
├── Dockerfile
├── requirements.txt
└── .env # Local configuration
1.1. What belongs to the framework
The framework should concentrate the reusable engines:
- LangGraph and workflow assembly.
- Checkpoint.
- Memory.
- Session repository.
- Channel gateway.
- Enterprise Router.
- Supervisor.
- Guardrails.
- Output Supervisor.
- Judges.
- Langfuse/OpenTelemetry Telemetry.
- Analytics IC/NOC/GRL.
- MCP Tool Router.
- Cache.
- Generic RAG.
1.2. What belongs to the agent
The agent should focus only on domain customizations:
- Specific prompts.
- Business rules.
- Own schemas.
- Specific tools.
- Clients from external systems, preferably encapsulated behind MCP.
- Parameter mapping.
- Specialized nodes, if any.
- Journey business ICs.
When a rule only makes sense for one domain, it belongs to the agent. When a capability is to be used by multiple agents, it belongs to the framework.
2. Template execution flow
The main flow starts at app/main.py, at the endpoint/gateway/message.
Channel / Frontend / API
↓
POST /gateway/message
↓
ChannelGateway.normalize()
↓
IdentityResolver
↓
SessionRepository
↓
MemoryRepository
↓
AgentWorkflow.ainvoke()
↓
LangGraph
↓
Input Guardrails
↓
Enterprise Router or Supervisor
↓
Specialized agent
↓
MCP Tool Router / RAG / Cache / LLM
↓
Output Supervisor
↓
Output Guardrails
↓
Judges
↓
Supervisor Review
↓
Persistence / Checkpoint / Memory
↓
Response
AgentWorkflow, in app/workflows/agent_graph.py, usually already contains corporate nodes such as:
input_guardrails
routing_decision
billing_agent
product_agent
orders_agent
support_agent
handoff
supervisor_agent
output_supervisor
output_guardrails
judge
supervisor_review
persist
To create a new agent, you usually change:
app/agents/<new_agent>.py
app/workflows/agent_graph.py
app/state.py, if you need new fields
config/agents.yaml
config/routing.yaml
config/tools.yaml
config/mcp_servers.yaml
config/mcp_parameter_mapping.yaml
config/identity.yaml
config/agents/<agent_id>/prompt_policy.yaml
config/agents/<agent_id>/guardrails.yaml
config/agents/<agent_id>/judges.yaml
.env
3. Prerequisites
3.1. Local requirements
- Python 3.12 or 3.13.
piporuv.Agent_frameworkproject available in the same workspace, if the template uses local installation.- MCP servers, if the agent uses tools.
- Redis, Oracle Autonomous Database, MongoDB and Langfuse are optional depending on the configuration.
Recommended structure:
workspace/
├── agent_framework/
└── agent_template_backend/
3.2. Local installation
Inside the agent_template_backend directory:
python -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
If agent_framework is in local development:
pip install -e ../agent_framework
In Windows PowerShell:
python -m venv .venv
.\.venv\Scripts\Activate.ps1
pip install -r requirements.txt
pip install -e ..\agent_framework
4. .env configuration
The .env defines which engines will be activated. It's not just a properties file: it changes the agent's behavior at runtime.
Secure example for local development:
APP_NAME=ai-agent-template
APP_ENV=local
LOG_LEVEL=INFO
API_HOST=0.0.0.0
API_PORT=8000
CORS_ORIGINS=http://localhost:5173,http://127.0.0.1:5173
LLM_PROVIDER=mock
LLM_TEMPERATURE=0.2
LLM_MAX_TOKENS=2048
LLM_TIMEOUT_SECONDS=120
SESSION_REPOSITORY_PROVIDER=memory
MEMORY_REPOSITORY_PROVIDER=memory
CHECKPOINT_REPOSITORY_PROVIDER=memory
USAGE_REPOSITORY_PROVIDER=memory
ENABLE_REDIS_CACHE=false
REDIS_URL=redis://localhost:6379/0
CACHE_TTL_SECONDS=300
VECTOR_STORE_PROVIDER=memory
GRAPH_STORE_PROVIDER=memory
RAG_TOP_K=5
EMBEDDING_PROVIDER=mock
ENABLE_LANGFUSE=false
LANGFUSE_HOST=http://localhost:3005
ENABLE_OTEL=false
OTEL_SERVICE_NAME=ai-agent-template
ENABLE_ANALYTICS=false
ANALYTICS_PROVIDERS=noop
ENABLE_OCI_STREAMING=false
OCI_STREAM_ENDPOINT=
OCI_STREAM_OCID=
OCI_STREAM_PARTITION_KEY=agent-events
ENABLE_INPUT_GUARDRAILS=true
ENABLE_OUTPUT_GUARDRAILS=true
ENABLE_OUTPUT_SUPERVISOR=true
ENABLE_JUDGES=true
ENABLE_SUPERVISOR=true
ENABLE_PARALLEL_GUARDRAILS=true
GUARDRAILS_FAIL_FAST=true
OUTPUT_SUPERVISOR_MAX_RETRIES=3
GUARDRAILS_CONFIG_PATH=./config/guardrails.yaml
JUDGES_CONFIG_PATH=./config/judges.yaml
PROMPT_POLICY_PATH=./config/prompt_policy.yaml
ROUTING_CONFIG_PATH=./config/routing.yaml
ROUTING_MODE=router
ENABLE_LLM_ROUTER=false
ENABLE_MCP_TOOLS=true
MCP_SERVERS_CONFIG_PATH=./config/mcp_servers.yaml
TOOLS_CONFIG_PATH=./config/tools.yaml
MCP_PARAMETER_MAPPING_PATH=./config/mcp_parameter_mapping.yaml
MCP_TOOL_TIMEOUT_SECONDS=30
IDENTITY_CONFIG_PATH=./config/identity.yaml
4.1. How to think about .env
Before testing a new agent, answer:
Will the LLM be mock or real?
Will the memory be local or in a database?
Does the checkpoint need to survive a restart?
Will the MCP tools be called for real or simulated?
Will routing be by rule/intent or supervisor?
Should guardrails, judges, and supervisor block, review, or just observe?
Will Langfuse/OTEL/Streaming be used in this environment?
For a first test, use LLM_PROVIDER=mock, in-memory persistence, and mock/local MCP. Then move on to real LLM, database, Langfuse, and real services.
To use Oracle Autonomous Database, set:
SESSION_REPOSITORY_PROVIDER=autonomous
MEMORY_REPOSITORY_PROVIDER=autonomous
CHECKPOINT_REPOSITORY_PROVIDER=autonomous
USAGE_REPOSITORY_PROVIDER=autonomous
ADB_USER=<usuario>
ADB_PASSWORD=<senha>
ADB_DSN=<dsn>
ADB_WALLET_LOCATION=<caminho-wallet>
ADB_WALLET_PASSWORD=<senha-wallet>
ADB_TABLE_PREFIX=AGENTFW
To use Langfuse:
ENABLE_LANGFUSE=true
LANGFUSE_PUBLIC_KEY=<public-key>
LANGFUSE_SECRET_KEY=<secret-key>
LANGFUSE_HOST=http://localhost:3005
4.1.1. LLM Provider and OCI Authentication Configuration
The Agent Framework OCI supports multiple LLM providers and authentication mechanisms.
LLM_PROVIDEROCI_AUTH_MODEOCI_GENAI_API_KEY
LLM_PROVIDER
LLM_PROVIDER=mock
Uses a simulated model for testing and development.
LLM_PROVIDER=oci_openai
Uses the OCI Generative AI OpenAI-Compatible endpoint.
Uses OCI_GENAI_API_KEY.
LLM_PROVIDER=oci_sdk
Uses the native OCI Generative AI SDK.
Uses OCI_AUTH_MODE.
LLM_PROVIDER=openai_compatible
Uses any endpoint compatible with the OpenAI API.
OCI_AUTH_MODE
Used only when:
LLM_PROVIDER=oci_sdk
OCI_AUTH_MODE=config_file
Authenticates using ~/.oci/config.
OCI_AUTH_MODE=instance_principal
Authenticates using OCI Instance Principals.
OCI_AUTH_MODE=resource_principal
Authenticates using OCI Resource Principals.
OCI_GENAI_API_KEY
API Key used by the oci_openai provider.
Configuration Matrix
| LLM_PROVIDER | OCI_AUTH_MODE | OCI_GENAI_API_KEY | Method |
|---|---|---|---|
| mock | Ignored | No | None |
| oci_openai | Ignored | Yes | API Key |
| oci_sdk | config_file | No | OCI Config File |
| oci_sdk | instance_principal | No | Instance Principal |
| oci_sdk | resource_principal | No | Resource Principal |
| openai_compatible | Ignored | No | Endpoint API Key |
4.2.llm_profiles.yaml
4.2.1. Purpose of llm_profiles.yaml
The llm_profiles.yaml file is used to centrally and granularly configure which LLM model each part of the framework should use.
Without this file, the framework usually relies on a single model defined in .env, for example:
LLM_PROVIDER=oci_openai
OCI_GENAI_MODEL=openai.gpt-4.1
LLM_TEMPERATURE=0.2
LLM_MAX_TOKENS=2048
This means that the supervisor, router, agents, RAG, memory, guardrails, and judges tend to use the same default model, unless something specific is hardcoded elsewhere.
With llm_profiles.yaml, each inference point can use a different model with its own parameters.
Example:
profiles:
default:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0.2
max_tokens: 2048
guardrail:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 600
judge:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 800
rag_generation:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0.1
max_tokens: 1800
4.2.2. Why this file matters
In an enterprise agent framework, not every component should necessarily use the same model.
For example:
- The main agent may use a more flexible model.
- The supervisor may use temperature
0for predictable routing. - Guardrails should be strict and stable.
- Judges should evaluate answers with low variability.
- RAG may use different models for rewriting, compression, and final generation.
- Memory summarization may use a cheaper or shorter-context model.
llm_profiles.yaml separates these responsibilities.
4.2.3. General behavior
The expected framework rule is:
If llm_profiles.yaml exists:
the framework uses the profiles defined in it for each component.
If llm_profiles.yaml does not exist:
the framework keeps the previous behavior and uses .env as the global configuration.
So llm_profiles.yaml is optional.
It does not completely replace .env. It acts as a per-component override layer.
4.2.4. When the file does NOT exist
If llm_profiles.yaml does not exist, the framework should only use the global .env configuration.
Example:
LLM_PROVIDER=oci_openai
OCI_GENAI_MODEL=openai.gpt-4.1
LLM_TEMPERATURE=0.2
LLM_MAX_TOKENS=2048
In this scenario, all LLM-based components tend to use the same global provider/model:
supervisor -> .env
router -> .env
LLM guardrails -> .env
LLM judges -> .env
RAG -> .env
summary memory -> .env
agents -> .env
This mode is useful for simple environments, proof-of-concepts, or when per-component model control is not needed yet.
4.2.5. When the file exists
If llm_profiles.yaml exists, the framework starts looking for a specific profile for each inference point.
Example:
profiles:
supervisor:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 700
judge:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 800
When the supervisor calls an LLM, it should use the supervisor profile.
When an LLM judge calls an LLM, it should use the judge profile.
4.2.6. Relationship between default and specific profiles
The default profile works as a base profile.
Example:
profiles:
default:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0.2
max_tokens: 2048
supervisor:
temperature: 0
max_tokens: 700
If the resolver supports inheritance, the supervisor profile may inherit provider and model from default, while overriding only temperature and max_tokens.
However, to avoid ambiguity, the safest configuration is to explicitly declare provider and model in every profile:
supervisor:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 700
This is the recommended format.
4.2.7. Main framework profiles
| Profile | Purpose |
|---|---|
default |
Base/fallback configuration |
supervisor |
Next-agent or flow decision |
router |
Intent or policy routing |
guardrail |
Input or general safety guardrails |
grl |
Output guardrails and response rules |
judge |
LLM judges such as quality and groundedness |
rag_rewriter |
Query rewriting for RAG |
rag_compressor |
Retrieved context compression |
rag_generation |
Final RAG-grounded answer generation |
summary_memory |
Conversational memory summarization |
noc |
Operational/NOC analysis |
billing_agent |
Billing/invoice agent-specific model |
product_agent |
Product agent-specific model |
backoffice_agent |
Backoffice agent-specific model |
4.2.8. Guardrails and llm_profiles.yaml
Guardrails can be deterministic or LLM-based.
Deterministic guardrails do not need to call a model. Therefore, even if the guardrail profile contains an invalid model, a purely deterministic rail may block the request before any LLM call happens.
Example:
guardrail:
provider: oci_openai
model: xopenai.gpt-4.1
If the input triggers a deterministic prompt-injection pattern, the model error may not appear because the LLM was not called.
To validate that the profile is being used, test a guardrail path that actually calls the LLM.
Typical profile mapping:
guardrail -> PINJ, TOX, OOS, DLEX_IN, RAGSEC
grl -> REVPREC, AOFERTA, DLEX_OUT
4.2.9. Judges and llm_profiles.yaml
judges.yaml defines which judges exist and whether they are enabled.
Example:
judges:
- name: response_quality
enabled: true
threshold: 0.7
- name: groundedness
enabled: true
threshold: 0.6
If these judges are calibrated as LLM judges, they use the judge profile from llm_profiles.yaml.
Example:
judge:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 800
The important separation is:
judges.yaml -> defines which judges run and their rules
llm_profiles.yaml -> defines which model the LLM judge uses
If the judge profile points to an invalid model and the LLM judge is executed, the framework should fail according to the policy configured in judges.yaml, for example fail_closed.
4.2.10. RAG and llm_profiles.yaml
RAG may use LLMs in multiple stages:
rag_rewriter -> rewrites the user question
rag_compressor -> compresses retrieved documents/context
rag_generation -> generates the final grounded answer
Example:
rag_rewriter:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 300
rag_compressor:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 1200
rag_generation:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0.1
max_tokens: 1800
This allows different models to be used for different RAG pipeline tasks.
4.2.11. Memory and llm_profiles.yaml
LLM-based summary memory should use the summary_memory profile.
Example:
summary_memory:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0.1
max_tokens: 1200
This profile is used when the framework needs to summarize long conversations, compact history, or preserve conversational memory without loading all previous messages.
4.2.12. Supervisor and router
The supervisor and router are critical flow-control components.
Example:
supervisor:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 700
router:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 500
They usually use temperature 0 because routing decisions should be predictable.
4.2.13. Recommended full example
profiles:
default:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0.2
max_tokens: 2048
supervisor:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 700
router:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 500
guardrail:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 600
grl:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 700
judge:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 800
rag_rewriter:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 300
rag_compressor:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 1200
rag_generation:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0.1
max_tokens: 1800
summary_memory:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0.1
max_tokens: 1200
noc:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0
max_tokens: 700
billing_agent:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0.2
product_agent:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0.2
backoffice_agent:
provider: oci_openai
model: openai.gpt-4.1
temperature: 0.2
4.2.14. How to test whether a profile is being respected
A simple test is to intentionally configure a non-existent model in a specific profile.
Example:
judge:
provider: oci_openai
model: xopenai.gpt-4.1
temperature: 0
max_tokens: 800
Then run a flow that actually invokes an LLM judge.
If the framework respects the profile, the call should fail because the model does not exist.
The same test can be done with:
guardrail
grl
rag_rewriter
rag_compressor
rag_generation
summary_memory
supervisor
router
billing_agent
However, you must ensure that the component is actually executed in the flow.
4.2.15. Warning about silent fallback
One important concern in agent architectures is avoiding silent fallback when an explicit profile was configured.
If the user configured:
judge:
provider: oci_openai
model: xopenai.gpt-4.1
then the framework should not silently ignore the error and fall back to another model, unless that fallback is explicitly configured.
Recommended rule:
explicit profile + real provider + invalid model = visible error
This prevents situations where the team believes it is testing one model, while the framework silently uses another.
4.2.16. Final summary
llm_profiles.yaml is the framework's per-component LLM configuration layer.
It allows you to:
- Separate models by function.
- Use different temperatures per component.
- Test specific models in specific inference points.
- Avoid depending on a single global model in
.env. - Make guardrails, judges, RAG, memory, supervisor, and agents more controllable.
Main rule:
Without llm_profiles.yaml:
.env controls everything.
With llm_profiles.yaml:
each component uses its own profile.
.env remains as fallback for missing keys or legacy mode.
5. Creating a new agent
In this example, we will create an agent called finance_agent for generic financial service.
5.1. Before the code: what is an agent in this framework?
An agent is a domain class that receives the state from LangGraph, interprets the intent chosen by the router or supervisor, collects evidence, calls tools/RAG/LLM when necessary, and returns a decision for the workflow to continue.
It should not decide on its own everything that the framework already decides. For example:
The agent does not create a session.
The agent does not open SSE.
The agent does not compile LangGraph.
The agent does not create a checkpoint.
The agent does not run global guardrails.
The agent does not call the external system directly when there is an MCP Tool Router.
The agent must answer questions such as:
What business problem am I solving?
What data do I need to respond securely?
Which tools can provide this data?
Which domain rules prevent or authorize an action?
What response should be returned to the user?
What IC events do I need to issue for the journey audit?
5.1.1. Channel Gateway — Internal and External in the Agent Framework
This chapter explains the role of the Channel Gateway within the Agent Framework architecture and why it can run in two different ways:
1. Internal Channel Gateway
Embedded in the framework backend itself.
2. External Channel Gateway
Run as a separate service, maintained by a channel or integration team.
The main function of the Channel Gateway is to protect the Agent Framework from varied, unstable, or unknown external channel message formats.
Central rule:
The agent must not know raw channel payloads.
The agent must receive only messages normalized by the framework.
5.1.1.1. The problem solved by the Channel Gateway
In real environments, each channel sends messages in different formats.
Examples:
Web
WhatsApp
Teams
Email
Voice
IVR
Genesys
Twilio
Zendesk
CRM
Mobile app
Customer proprietary channel
Each channel may have a completely different payload.
A WhatsApp channel may send something like:
{
"wa_id": "5511999999999",
"messages": [
{
"type": "interactive",
"interactive": {
"button_reply": {
"id": "segunda_via_fatura",
"title": "Segunda via de fatura"
}
}
}
]
}
A voice channel may send:
{
"event": "voice.transcript.completed",
"caller": "+5511999999999",
"transcript": "quero consultar minha fatura",
"confidence": 0.94
}
A web frontend may send:
{
"message": "Quero consultar minha fatura",
"session_id": "abc123",
"customer_key": "11999999999"
}
If the framework accepted all these formats directly, the core would become contaminated with channel-specific rules.
The result would be bad:
agents knowing WhatsApp
agents knowing IVR
agents knowing Teams
workflow handling external payloads
guardrails receiving unexpected objects
MCP receiving inconsistent parameters
channel maintenance falling onto the framework team
The Channel Gateway exists to prevent this.
5.1.1.2. Channel Gateway responsibility
The Channel Gateway is the layer responsible for transforming external messages into a format accepted by the Agent Framework.
It bridges:
External world
channel-specific payloads
and
Agent Framework
standardized input contract
Typical responsibilities:
receive external payload
validate minimum structure
validate channel authentication or signature
extract user text
extract technical identifiers
extract business identifiers
normalize session
normalize metadata
map data to business_context
build GatewayRequest
call the Agent Framework backend
translate the framework response back to the channel
The Channel Gateway must not perform agent reasoning.
It must not:
decide the final user response
execute LangGraph
execute domain guardrails
call MCP directly
perform RAG
call the LLM as an agent
persist framework conversational memory
implement agent business rules
5.1.1.3. Agent Framework responsibility
The Agent Framework starts working after the message has already been placed into the contract accepted by the backend.
Framework responsibilities:
validate the input contract
normalize context
resolve business identity
create or recover session
execute input guardrails
route intent
execute LangGraph
trigger specialized agent
call MCP Tool Router
execute RAG
call LLM
execute output guardrails
execute judges
persist memory and checkpoint
emit telemetry
return standardized response
The framework must be protected from raw channel payloads.
5.1.1.4. Current operational contract: GatewayRequest
In the current backend version, the /gateway/message endpoint expects an envelope referred to here as GatewayRequest.
Format:
{
"channel": "web",
"tenant_id": "default",
"agent_id": "telecom_contas",
"payload": {
"message": "Quero consultar minha fatura",
"session_id": "curl-contract-test-001",
"user_id": "user-curl-001",
"message_id": "msg-curl-contract-001",
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872",
"session_key": "curl-contract-test-001",
"business_context": {
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872",
"session_key": "curl-contract-test-001"
},
"metadata": {
"source": "curl",
"request_id": "req-curl-contract-001"
}
}
}
Conceptual schema:
from typing import Any
from pydantic import BaseModel
class GatewayRequest(BaseModel):
channel: str = "web"
payload: dict[str, Any]
agent_id: str | None = None
tenant_id: str | None = None
The Channel Gateway, internal or external, must produce this format before delivering the message to the workflow.
5.1.1.5. Internal Channel Gateway
5.1.1.5.1. Definition
The internal Channel Gateway is the implementation embedded within the Agent Framework backend.
In this mode, the backend itself receives the request and performs normalization.
Flow:
Frontend / Simple channel
↓
POST /gateway/message
↓
Agent Framework Backend
↓
ChannelGateway.normalize()
↓
IdentityResolver
↓
SessionRepository
↓
LangGraph Workflow
↓
Response
Representation:
┌──────────────────────────────────────────────────────┐
│ Agent Framework Backend │
│ │
│ ┌──────────────────────┐ │
│ │ Channel Gateway │ │
│ │ internal │ │
│ └──────────┬───────────┘ │
│ ↓ │
│ ┌──────────────────────┐ │
│ │ Identity Resolver │ │
│ └──────────┬───────────┘ │
│ ↓ │
│ ┌──────────────────────┐ │
│ │ LangGraph Workflow │ │
│ └──────────────────────┘ │
└──────────────────────────────────────────────────────┘
5.1.1.5.2. When to use the internal Channel Gateway
Use internal mode when:
the environment is local
the goal is a demo
the channel is simple
the payload is controlled
the framework team also controls the frontend
the project is an MVP
the customer has not yet defined a channel team
Examples:
local agent_frontend
curl
Postman
automated tests
customer demo
development lab
5.1.1.5.3. Advantages of internal mode
simpler to start
fewer services to run
less infrastructure
easier to test locally
good for demos and tutorials
reduces friction for new developers
5.1.1.5.4. Limitations of internal mode
Internal mode is not ideal when there are many channels or proprietary channels.
Risks:
the framework starts accumulating channel parsers
the framework team becomes responsible for WhatsApp, Teams, IVR, etc. payloads
external changes break the backend
channel authentication rules enter the core
framework deployment starts depending on channel changes
architectural responsibility becomes mixed
The main problem is maintenance.
If every new channel requires a change in the framework backend, the framework stops being a generic engine and becomes a collection of specific integrations.
5.1.1.6. External Channel Gateway
5.1.1.6.1. Definition
The external Channel Gateway is an independent service, outside the Agent Framework backend.
It is responsible for receiving channel-specific payloads and converting them to the operational contract accepted by the framework.
Flow:
External channel
↓
External Channel Gateway
↓
GatewayRequest
↓
Agent Framework Backend
↓
LangGraph Workflow
↓
Current ChannelResponse
↓
External Channel Gateway
↓
Response in the original channel
Representation:
┌─────────────────────────────┐
│ External channel │
│ WhatsApp / Voice / Teams │
└──────────────┬──────────────┘
↓
┌─────────────────────────────┐
│ External Channel Gateway │
│ Channel adapter │
│ Auth │
│ Parser │
│ Normalization │
└──────────────┬──────────────┘
↓ GatewayRequest
┌─────────────────────────────┐
│ Agent Framework Backend │
│ /gateway/message │
│ LangGraph / Agents / MCP │
└──────────────┬──────────────┘
↓ ChannelResponse
┌─────────────────────────────┐
│ External Channel Gateway │
│ Response translation │
└──────────────┬──────────────┘
↓
┌─────────────────────────────┐
│ External channel │
└─────────────────────────────┘
5.1.1.6.2. When to use the external Channel Gateway
Use external mode when:
the environment is enterprise
there are multiple channels
there is a channel team
the customer has proprietary channels
the channel payload is not known by the framework team
there is channel-specific authentication
there are security or compliance requirements
there are channel-specific rate limit, retry, and idempotency rules
the framework team must not maintain specific adapters
Examples:
official WhatsApp
corporate IVR
Genesys
Twilio
Microsoft Teams
Zendesk
Salesforce
customer mobile app
legacy portal
proprietary customer service channel
5.1.1.6.3. Advantages of external mode
separates responsibilities
delegates channel maintenance
protects the framework
avoids coupling with external APIs
allows different teams to evolve at different speeds
facilitates enterprise governance
allows separate deployment
allows channel-specific authentication
allows channel-specific observability
The main idea is:
The channel team owns the channel.
The framework team owns the agent engine.
5.1.1.6.4. Responsibility of the team owning the external Channel Gateway
The team owning the external gateway must implement:
public channel endpoint
signature/authentication validation
rate limit control
channel event deduplication
retry handling
raw payload parser
text extraction
attachment extraction
technical ID extraction
mapping to customer_key, contract_key, etc.
GatewayRequest assembly
call to the Agent Framework
response handling
response translation to the original channel
channel logs and metrics
5.1.1.6.5. Responsibility of the Agent Framework team
The framework team must provide:
GatewayRequest contract
response contract
documentation of accepted fields
curl examples
Pydantic schemas
standardized errors
stable endpoint
contract versioning
authentication rules between external gateway and framework
workflow observability
The framework team must not take ownership of raw channel payload maintenance.
5.1.1.7. Comparison between internal and external Channel Gateway
| Criterion | Internal | External |
|---|---|---|
| Where it runs | Inside the framework backend | Separate service |
| Best use | Demo, lab, MVP | Enterprise production |
| Typical owner | Framework team | Channel/integration team |
| Does raw payload enter the framework? | It may in simple scenarios | It should not |
| Organizational scalability | Low/Medium | High |
| Coupling with channel | Higher | Lower |
| Deployment | Together with framework | Independent |
| Channel-specific security | Limited to backend | Specialized per channel |
| Parser maintenance | Framework | Channel team |
| Production recommendation | Simple cases only | Recommended |
5.1.1.8. Detailed flow with internal Channel Gateway
1. Frontend sends POST /gateway/message.
2. Backend receives GatewayRequest.
3. ChannelGateway.normalize() extracts:
- message
- session_id
- user_id
- message_id
- business_context
- metadata
4. IdentityResolver complements business keys.
5. SessionRepository resolves conversation_key.
6. LangGraph starts the workflow.
7. Input guardrails run.
8. Router decides intent and route.
9. Specialized agent runs.
10. MCP Tool Router calls tools, if necessary.
11. RAG retrieves documents, if necessary.
12. LLM generates response, if necessary.
13. Output guardrails run.
14. Judges evaluate the response.
15. Framework returns channel, session_id, text, and metadata.
5.1.1.9. Detailed flow with external Channel Gateway
1. External channel sends an event to the external gateway.
2. External gateway validates authentication/signature.
3. External gateway deduplicates the message using the channel ID.
4. External gateway interprets the raw payload.
5. External gateway extracts text, event, or transcript.
6. External gateway extracts technical IDs from the channel.
7. External gateway maps data to business_context.
8. External gateway builds GatewayRequest.
9. External gateway calls POST /gateway/message in the Agent Framework.
10. Framework executes the workflow normally.
11. Framework returns the current ChannelResponse.
12. External gateway transforms text/metadata into a channel response.
13. External gateway sends the response to the user in the original channel.
5.1.1.10. Example: raw WhatsApp payload to GatewayRequest
5.1.1.10.1. Hypothetical raw payload
{
"wa_id": "5511999999999",
"messages": [
{
"id": "wamid.123",
"type": "interactive",
"interactive": {
"button_reply": {
"id": "segunda_via_fatura",
"title": "Segunda via de fatura"
}
}
}
]
}
5.1.1.10.2. GatewayRequest sent to the framework
{
"channel": "whatsapp",
"tenant_id": "default",
"agent_id": "telecom_contas",
"payload": {
"message": "Segunda via de fatura",
"session_id": "5511999999999",
"user_id": "5511999999999",
"message_id": "wamid.123",
"customer_key": "5511999999999",
"interaction_key": "wamid.123",
"session_key": "5511999999999",
"business_context": {
"customer_key": "5511999999999",
"interaction_key": "wamid.123",
"session_key": "5511999999999",
"metadata": {
"source_channel": "whatsapp",
"source_message_type": "interactive"
}
},
"metadata": {
"external_gateway": "customer-channel-gateway",
"original_channel": "whatsapp",
"original_message_id": "wamid.123",
"interactive_type": "button_reply",
"raw_reference": "segunda_via_fatura"
}
}
}
5.1.1.11. Example: raw voice payload to GatewayRequest
5.1.1.11.1. Hypothetical raw payload
{
"event": "voice.transcript.completed",
"call_id": "call-9988",
"caller": "+5511999999999",
"transcript": "minha fatura veio muito alta esse mês",
"confidence": 0.94,
"language": "pt-BR"
}
5.1.1.11.2. GatewayRequest sent to the framework
{
"channel": "voice",
"tenant_id": "default",
"agent_id": "telecom_contas",
"payload": {
"message": "minha fatura veio muito alta esse mês",
"session_id": "call-9988",
"user_id": "+5511999999999",
"message_id": "call-9988-turn-1",
"customer_key": "5511999999999",
"interaction_key": "call-9988",
"session_key": "call-9988",
"business_context": {
"customer_key": "5511999999999",
"interaction_key": "call-9988",
"session_key": "call-9988",
"metadata": {
"source_channel": "voice",
"transcription_provider": "speech-service",
"confidence": 0.94,
"language": "pt-BR"
}
},
"metadata": {
"external_gateway": "voice-channel-gateway",
"call_id": "call-9988",
"event": "voice.transcript.completed"
}
}
}
5.1.1.12. Curl example to validate the contract
curl -s -X POST "http://localhost:8000/gateway/message" \
-H "Content-Type: application/json" \
-d '{
"channel": "web",
"tenant_id": "default",
"agent_id": "telecom_contas",
"payload": {
"message": "Quero consultar minha fatura",
"session_id": "curl-contract-test-001",
"user_id": "user-curl-001",
"message_id": "msg-curl-contract-001",
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872",
"session_key": "curl-contract-test-001",
"business_context": {
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872",
"session_key": "curl-contract-test-001",
"metadata": {
"source_channel": "web",
"frontend": "curl",
"version": "legacy-envelope-with-business-context"
}
},
"metadata": {
"source": "curl",
"request_id": "req-curl-contract-001"
}
}
}' | jq
5.1.1.13. Expected framework response
The current framework response returns:
{
"channel": "web",
"session_id": "default:telecom_contas:curl-contract-test-001",
"text": "[BillingAgent] Aqui estão as informações da sua fatura mais recente...",
"metadata": {
"tenant_id": "default",
"agent_id": "telecom_contas",
"original_session_id": "curl-contract-test-001",
"conversation_key": "default:telecom_contas:curl-contract-test-001",
"message_id": "msg-curl-contract-001",
"route": "billing_agent",
"intent": "billing_invoice_explanation",
"mcp_tools": [
"consultar_fatura",
"consultar_pagamentos"
],
"mcp_results": [],
"business_context": {},
"guardrails": [],
"judges": []
}
}
Main fields:
channel
Origin channel.
session_id
Final session resolved by the framework.
text
Final agent response.
metadata
Technical data, routing, business context, MCP, guardrails, judges, and traceability.
5.1.1.14. How the external Channel Gateway should handle the response
The framework returns a backend-oriented response.
The external Channel Gateway must translate it into the format expected by the channel.
Example:
Framework:
text = "Encontrei sua fatura..."
WhatsApp:
send text message through the WhatsApp API
Voice:
send text to TTS
Teams:
build a Teams card or message
Email:
build email body
CRM:
register response in the service interaction
The external gateway may use metadata to decide additional behavior, for example:
requires_user_input
missing_fields
intent
route
handoff
mcp_results
guardrails
But the main user-facing response is in:
text
5.1.1.15. Security and validation
The Channel Gateway must apply validations before calling the framework.
Recommended validations:
channel authentication
webhook signature
allowed origin
rate limit
maximum message size
allowed event type
deduplication by message_id
text normalization
HTML/script removal
sensitive data minimization
attachment control
The Agent Framework must also validate the received contract.
Recommended framework validations:
channel present
payload present
payload.message present
valid tenant_id
valid or routable agent_id
valid session_id
consistent business_context
traceable message_id
metadata within acceptable size
5.1.1.16. Idempotency
External channels may resend events.
Therefore, whenever possible, the Channel Gateway must fill in:
payload.message_id
Recommended idempotency key:
tenant_id:channel:user_id:message_id
Example:
default:whatsapp:5511999999999:wamid.123
Possible behaviors:
first time:
process the message
duplicate resend:
ignore
return previous response
return controlled conflict
The policy can live in the external Channel Gateway, in the Agent Framework, or in both.
5.1.1.17. Relationship with IdentityResolver
The Channel Gateway sends canonical data in payload and business_context.
The framework IdentityResolver can complement or standardize these keys.
Example:
payload.customer_key
payload.contract_key
payload.interaction_key
payload.session_key
May become:
metadata.business_context.customer_key
metadata.business_context.contract_key
metadata.business_context.interaction_key
metadata.business_context.session_key
Recommended rule:
The Channel Gateway should normalize what it knows.
The IdentityResolver complements what is missing.
5.1.1.18. Relationship with MCP Parameter Mapping
The Channel Gateway must not know the exact parameter name of each MCP tool.
It should send canonical keys.
Example:
customer_key
contract_key
interaction_key
session_key
The framework, through mcp_parameter_mapping.yaml, translates them to the parameters expected by the tools.
Example:
tools:
consultar_fatura:
map:
customer_key: msisdn
contract_key: invoice_id
interaction_key: ura_call_id
session_key: session_id
Flow:
GatewayRequest.payload.business_context.customer_key
↓
AgentRuntime / MCP Tool Router
↓
mcp_parameter_mapping.yaml
↓
consultar_fatura.msisdn
This keeps the Channel Gateway decoupled from the MCP Server.
5.1.1.19. Anti-patterns
Avoid these patterns:
Agent reading raw WhatsApp payload.
Workflow with if channel == "whatsapp".
Guardrail depending on native Teams fields.
MCP Server receiving the entire channel payload.
Frontend sending arbitrary fields outside payload.
External gateway calling the agent directly, bypassing /gateway/message.
External Channel Gateway executing agent business logic.
Framework being changed for every new channel.
Sensitive data or channel tokens sent in metadata.
The correct design is:
Specific channel
↓
Specific adapter
↓
GatewayRequest
↓
Agent Framework
5.1.1.20. Contract versioning
For enterprise environments, it is recommended to version the contract.
Example:
{
"channel": "web",
"tenant_id": "default",
"agent_id": "telecom_contas",
"payload": {
"message": "Quero consultar minha fatura",
"metadata": {
"contract_version": "gateway-request-v1"
}
}
}
Or in the HTTP header:
X-Agent-Framework-Contract: gateway-request-v1
Recommended rules:
compatible changes keep the same version
new fields must be optional
field removal requires a new version
semantic changes require a new version
external gateway must declare the version used
framework must reject incompatible versions
5.1.1.21. Observability
The Channel Gateway and the Agent Framework must emit traceability at different levels.
5.1.1.21.1. Channel Gateway observability
event received from channel
signature validation
deduplication
parsed payload
GatewayRequest built
framework call
response received
response sent to channel
channel error
authentication error
retry error
5.1.1.21.2. Agent Framework observability
GatewayRequest received
ChannelGateway.normalize()
IdentityResolver
SessionRepository
Guardrails
Routing
Agent execution
MCP tools
RAG
LLM
Output guardrails
Judges
Persistence
Final response
Correlation should use:
request_id
message_id
session_id
conversation_key
trace_id
5.1.1.21.3. Automatic Langfuse instrumentation for the OpenAI client
ENABLE_LANGFUSE_OPENAI_AUTO_INSTRUMENTATION=true
enables automatic Langfuse instrumentation for the OpenAI client.
When enabled, every request executed through the Langfuse-instrumented OpenAI client automatically generates detailed spans and generations within Langfuse.
Benefits
With automatic instrumentation enabled, Langfuse can automatically capture and display information such as:
- OpenAI-generation
- Prompt sent to the model
- Model response
- Model name used
- Token consumption
- Estimated costs
- Request latency
- Execution errors
All of this information is linked to the main conversation trace, making troubleshooting, auditing, and performance analysis significantly easier.
Behavior When Disabled
When:
ENABLE_LANGFUSE_OPENAI_AUTO_INSTRUMENTATION=false
or when the variable is not defined:
- LLM calls continue to function normally.
- Custom framework spans are still emitted.
- Langfuse no longer automatically creates OpenAI-generation entries.
- Less detailed information is available for analyzing model interactions.
Recommended Usage
It is recommended to enable this setting in:
- Development environments
- Testing and staging environments
- Production environments that require detailed LLM observability
- Prompt engineering, troubleshooting, and cost analysis scenarios
Important Note
This setting only affects Langfuse automatic telemetry and observability.
It does not change:
- Agent behavior
- Supervisor routing
- Guardrails
- Judges
- MCP Tool Router
- LangGraph workflows
Its sole purpose is to enrich the observability of language model interactions and provide more detailed execution insights within Langfuse.
5.1.1.22. Architecture recommendations
5.1.1.22.1. For demos and development
Use the internal Channel Gateway.
Reasons:
lower complexity
fewer services
quick testing
better for tutorials
easier to use with curl and local frontend
5.1.1.22.2. For enterprise production
Use the external Channel Gateway.
Reasons:
separation of responsibility
control by channel team
channel-specific security
independent deployment
lower coupling
better governance
5.1.1.22.3. Decision rule
If the channel is simple and controlled by the framework team:
internal Channel Gateway may be enough.
If the channel is external, proprietary, regulated, or maintained by another team:
external Channel Gateway is recommended.
5.1.1.23. Checklist to create an external Channel Gateway
[ ] Define which channels will be supported.
[ ] Document the raw payload of each channel.
[ ] Implement authentication/signature validation.
[ ] Implement deduplication by message_id.
[ ] Extract the user's main text.
[ ] Extract attachments, if applicable.
[ ] Extract stable session_id.
[ ] Extract channel user_id.
[ ] Map business identifiers.
[ ] Build canonical business_context.
[ ] Build GatewayRequest.
[ ] Call POST /gateway/message.
[ ] Interpret response text.
[ ] Translate response to the original channel.
[ ] Handle 400/401/403/422/429/500/503 errors.
[ ] Emit logs and metrics.
[ ] Version the contract used.
[ ] Create tests with real channel payloads.
5.1.1.24. Checklist to accept a new channel in the framework
[ ] Does the channel send a valid GatewayRequest?
[ ] Is the channel field standardized?
[ ] Is payload.message filled in?
[ ] Is session_id stable?
[ ] Is message_id traceable?
[ ] Does business_context use canonical keys?
[ ] Are channel-specific fields inside payload.metadata?
[ ] Is no huge raw payload being sent?
[ ] Are no channel tokens or secrets entering the framework?
[ ] Is the response text sufficient for the channel to reply to the user?
[ ] Is metadata sufficient for debugging and observability?
[ ] Is the 422 error handled by the external gateway?
5.1.1.25. Recommended architectural decision
The recommended decision is:
Channel Gateway should be a framework capability,
but it should not be mandatory as an internal component.
The framework should support two modes:
Embedded Mode
Internal Channel Gateway for demos, labs, MVPs, and simple environments.
External Mode
External Channel Gateway for enterprise production and delegated responsibility.
The current operational contract between Channel Gateway and Agent Framework is:
GatewayRequest
And the current response is:
channel
session_id
text
metadata
5.1.1.26. Final summary
The Channel Gateway exists to protect the Agent Framework.
Without this layer:
the agent needs to understand external payloads
the workflow accumulates channel logic
the framework becomes a collection of adapters
channel maintenance belongs to the wrong team
each new channel threatens to break the core
With this layer:
each channel is translated before entering the framework
the backend receives GatewayRequest
the agent works with normalized context
MCP receives canonical parameters
the response returns in a stable format
channel responsibility can be delegated
Final rule:
Raw payload belongs to the Channel Gateway.
GatewayRequest belongs to the Agent Framework boundary.
Reasoning and execution belong to the Agent Framework.
5.2. Responsibilities of the app/agents/financeiro_agent.py file
This file must contain the specific logic of the financial agent. It must:
- Receive the
state. - Separate
context,session,business_contextandtool_arguments. - Issue start IC using
AgentRuntimeMixin. - Collect context from MCP tools, if any, using the framework's MCP Tool Router.
- Collect RAG context, if any, using the framework's generic RAG.
- Set up a domain prompt.
- Call the LLM through the common runtime, with cache and telemetry.
- Assemble a standardized response.
- Issue completion IC.
- Return data to the workflow.
5.2.1. Understanding state, context, session, business_context and tool_arguments
Before copying the agent code, the developer needs to understand where the data comes from. In a corporate agent, the most common mistake is to take any field directly from the state without knowing if that data came from the channel, the gateway, the identity resolver, the router, or the user.
The state is the complete envelope of the LangGraph execution. Within it, there is usually a context, which is the context normalized by the framework.
Within context, if the project uses Agent Gateway / Global Supervisor, it is common to also have a session block:
ctx = state.get("context") or {}
session = ctx.get("session") or {}
Each block has a different role:
state
Complete state of the current workflow. Loads text, intent, route, partial response,
MCP results, guardrail data, checkpoint, and other technical fields.
context
Normalized context of the current message. It usually comes from the Channel Gateway,
Identity Resolver, and Agent Gateway.
session
Session and channel data. Helps you know who is talking, through which channel,
in which tenant, which global session is active, and which backend/agent is responding.
business_context
Business data that has already been normalized. Example: customer_key, contract_key,
interaction_key, session_key, protocol_id, invoice_id, order_id.
tool_arguments
Explicit parameters already prepared for tools/MCP. When it exists, it must have
priority over inferences made by the agent.
The recommended order of trust is:
1. explicit tool_arguments
2. business_context resolved by the framework
3. standardized context
4. session and session.metadata, when they come from the Agent Gateway
5. direct state
6. original user text, for complementary extraction only
This order avoids two problems:
Problem 1: ignoring data already resolved by the Gateway/Identity Resolver.
Problem 2: overwriting a canonical parameter with a raw and less reliable value.
Practical example: if the business_context.customer_key has already been resolved by the framework, the agent should not prefer a generic session user_id just because it exists. The user_id identifies the user in the channel; the customer_key identifies the customer in the business.
Even if a simple agent does not use session directly, there is a difference between technical session and business context.
5.2.2. Understanding the AgentRuntimeMixin class in runtime.py
Before writing a new agent, the developer needs to understand why almost all examples inherit from:
from app.agents.runtime import AgentRuntimeMixin
AgentRuntimeMixin is an operational convenience layer for the agent. It is not the agent, it is not the workflow, and it does not contain a business rule. It exists to prevent each agent from having to re-implement the same technical capabilities in different ways.
In simple terms:
AgentRuntimeMixin = standardized agent toolbox
FinanceiroAgent = business rule that uses this toolbox
AgentWorkflow = LangGraph engine that calls the agent
Framework = complete corporate infrastructure
Without AgentRuntimeMixin, each developer would tend to write their own code to:
issue IC/NOC/GRL
call MCP Tool Router
call RAG
mount LLM cache
call LLM
mount cache key
handle absence of observer, cache, RAG or tools
This would generate inconsistent agents. One agent would issue IC one way, another would call MCP directly, another would ignore cache, another would break when the observer was disabled. The mixin avoids this problem.
5.2.2.1. What AgentRuntimeMixin offers
In the template, AgentRuntimeMixin concentrates utility methods such as:
| Method | What it's for | When the agent uses it |
|---|---|---|
_emit_ic() |
Emits business/audit event | start, end, business decision, collected context |
_emit_noc() |
Emits operational event | technical error, timeout, fallback, unavailability |
_emit_grl() |
Issues custom governance event | domain rule blocked or sanitized something |
_retrieve_rag_context() |
Queries the framework's generic RAG | agent needs document context |
_collect_mcp_context() |
Calls the MCP tools declared in state.mcp_tools |
agent needs to consult external systems |
_cache_get() |
Reads generic cache | advanced use, usually indirect |
_cache_set() |
Writes generic cache | advanced use, usually indirect |
_llm_cache_key() |
Creates a stable LLM cache key | normally used internally |
_invoke_llm_cached() |
Calls the LLM with cache and telemetry | we need to generate a response with LLM |
The developer should think like this:
I write the business rule in run().
When I need infrastructure, I call a helper from AgentRuntimeMixin.
5.2.2.2. What AgentRuntimeMixin should not do
The mixin must not contain a specific business rule, for example:
calculate invoice dispute
consult ANATEL protocol directly
open SR Siebel directly
classify TIM cancellation
calculate payment slip amount
validate specific retail product
These rules belong to the agent or the domain's MCP Server.
The correct boundary is:
AgentRuntimeMixin
knows how to call MCP, RAG, cache, LLM and observer
Specific agent
knows what evidence it needs, what rules to apply, and how to respond
MCP Server
knows how to talk to a real system, mock, bank, REST, SOAP or legacy service
5.2.2.3. How the mixin receives its resources
AgentRuntimeMixin does not create llm, tool_router, rag_service, cache or observer. It expects the workflow to inject these objects into the agent constructor.
Therefore, this pattern appears in the agent:
class FinanceiroAgent(AgentRuntimeMixin):
name = "financeiro_agent"
def __init__(self, llm, telemetry=None, tool_router=None, rag_service=None, cache=None, settings=None, observer=None):
self.llm = llm
self.telemetry = telemetry
self.tool_router = tool_router
self.rag_service = rag_service
self.cache = cache
self.settings = settings
self.observer = observer
This means:
llm = generation engine configured by the framework
telemetry = spans/technical events
tool_router = standardized MCP router
rag_service = document/graph/vector search
cache = Redis/memory/etc. cache
settings = settings loaded from .env/YAML
observer = IC/NOC/GRL emitter
memory = conversation memory
summary_memory=summary memory
The agent receives these objects ready-made. It should not create a new instance on its own within run().
5.2.2.4. How_emit_ic(),_emit_noc(), and_emit_grl() help
An agent needs to be auditable, but it should not break if observability is turned off.
Therefore, the mixin's emission methods are fail-open: if there is no observer, or if an error occurs when emitting an event, the business journey continues.
Example of IC:
await self._emit_ic(
"IC.FINANCEIRO_AGENT_STARTED",
state,
{"business_component": "financeiro"},
component="agent.financeiro.start",
)
The developer does not need to manually assemble all the basic metadata. The mixin already tries to include information such as:
session_id
conversation_key
tenant_id
agent_id
route
intent
message_id
channel_id
The rule of thumb is:
Use _emit_ic() for business milestones.
Use _emit_noc() for an operational problem.
Use _emit_grl() for domain-specific governance.
5.2.2.5. How_collect_mcp_context() works
The _collect_mcp_context(state) method reads the list of tools already chosen by the router:
tools = state.get("mcp_tools") or[]
Then it calls the framework's tool_router for each tool. The agent does not need to know if the tool uses HTTP, Docker, mock or a real service.
Conceptual flow:
routing.yaml chooses intent
↓
intent defines mcp_tools
↓
state.mcp_tools receives the list of tools
↓
AgentRuntimeMixin._collect_mcp_context()
↓
MCP Tool Router
↓
MCP Server
↓
normalized result returns to the agent
Example in the agent:
tool_context = await self._collect_mcp_context(state)
The developer should use this method when it is sufficient to call the tools defined by the intent.
If the agent needs to choose special arguments per tool, skip dangerous tools, require confirmation, or set up additional parameters, it can implement its own method in the agent and call the router in a more controlled way, as in the BackofficeAgent example.
5.2.2.6. How_retrieve_rag_context() works
The _retrieve_rag_context(state) method queries the generic RAG configured in the framework.
It uses as base text:
state.sanitized_input or state.user_text
And it tries to define a search namespace from:
agent_profile.rag_namespace
agent_id
route
default
You can also use information from business_context, such as customer_key or contract_key, to enrich graph search or related context.
Example:
rag_context, rag_metadata = await self._retrieve_rag_context(state)
The agent uses rag_context in the prompt and can return rag_metadata for auditing/debugging.
Rule of thumb:
Use RAG when the answer depends on a document, policy, knowledge base, or uncoded content.
Do not use RAG to replace an operational query that must be made by an MCP tool.
5.2.2.7. How_invoke_llm_cached() works
The _invoke_llm_cached() method calls the LLM by passing messages in chat format:
answer = await self._invoke_llm_cached(state, "FinanceAgent", messages)
Before calling the LLM, it assembles a cache key considering elements such as:
agent name
tenant_id
agent_id
intent
customer_key
contract_key
interaction_key
user text
prompt content
If a response already exists in the cache, the method returns the cached value. If it does not exist, it calls the LLM, writes to the cache, and returns the response.
This prevents each agent from implementing caching differently.
The developer should understand that caching is useful for deterministic prompts or repeated queries, but should be used with caution for sensitive actions. The agent should not confirm an external operation just because an LLM response came from the cache. Operational confirmations must depend on the actual return from the tool.
5.2.2.8. When to use_collect_mcp_context() and when to create your own logic
Use _collect_mcp_context() when:
the intent has already defined the correct tools
the canonical parameters are already in the business_context
the execution can call all the tools in the list
no tool represents a sensitive action
Create your own logic in the agent when:
a tool can only be called after explicit confirmation
a tool requires additional arguments derived from the message
a tool must be skipped if a required field is missing
a registration/change tool cannot run automatically
a sequence of tools depends on the previous result
Example of a safe rule:
if tool.startswith("registrar_") and not action_text:
return {"ok": False, "skipped": True, "reason": "action without explicit confirmation"}
This is a domain rule and should stay in the agent, not in the mixin.
5.2.2.9. How the dev should read the run() of an agent that inherits the mixin
When opening an agent, the developer should look for this mental structure:
1. Does the agent issue an initial IC?
2. Does it read context/session/business_context in an organized way?
3. Does it validate mandatory domain data?
4. Does it call MCP using the mixin or its own controlled logic?
5. Does it call RAG when it needs documentary knowledge?
6. Does it build a prompt with evidence, not guesswork?
7. Does it call LLM via _invoke_llm_cached()?
8. Does it issue relevant IC/NOC/GRL?
9. Does it return answer, next_state, mcp_results, and useful metadata?
If the agent does this, it is using the framework correctly.
5.2.2.10. Minimum example of correct use of the mixin
async def run(self, state):
await self._emit_ic(
"IC.FINANCEIRO_AGENT_STARTED",
state,
{"business_component": "financeiro"},
component="agent.financeiro.start",
)
tool_context = await self._collect_tool_context(state)
if tool_context:
await self._emit_ic(
"IC.FINANCEIRO_MCP_CONTEXT_COLLECTED",
state,
{"tool_result_count": len(tool_context)},
component="agent.financeiro.mcp",
)
rag_context, rag_metadata = await self._retrieve_rag_context(state)
if rag_metadata.get("enabled"):
await self._emit_ic(
"IC.FINANCEIRO_RAG_CONTEXT_RETRIEVED",
state,
{
"document_count": rag_metadata.get("document_count"),
"graph_neighbors": rag_metadata.get("graph_neighbors"),
"latency_ms": rag_metadata.get("latency_ms"),
},
component="agent.financeiro.rag",
)
# Prepara ConversationSummaryMemory antes de montar o prompt.
# O build_messages() do framework injeta resumo + últimas mensagens quando habilitado.
await self.prepare_memory_context(state)
messages = self.build_messages(
state,
system_prompt=apply_agent_profile_prompt(
state,
"You are a financial agent. Respond clearly, using data from available tools. Do not confirm financial actions without evidence and explicit confirmation."
),
mcp_results=tool_context,
rag_context=rag_context,
rag_metadata=rag_metadata,
)
answer = await self._invoke_llm_cached(state, "FinanceiroAgent", messages)
result = {
"answer": f"[FinanceiroAgent] {answer}",
"next_state": "FINANCEIRO_ACTIVE",
"mcp_results": tool_context,
"rag": rag_metadata,
"memory_context_metadata": state.get("memory_context_metadata"),
}
await self._emit_ic(
"IC.FINANCEIRO_AGENT_COMPLETED",
state,
{
"answer_chars": len(result.get("answer") or ""),
"has_mcp_results": bool(tool_context),
"rag_enabled": bool(rag_metadata.get("enabled")),
"memory_context": state.get("memory_context_metadata"),
},
component="agent.financeiro.completed",
)
return result
This example shows the intention of the mixin: the developer writes the agent's reasoning, but delegates infrastructure to standardized methods.
5.2.2.11. Common mistakes when using AgentRuntimeMixin
Inherit from AgentRuntimeMixin, but call REST directly inside the agent.
Create another manual cache instead of using _invoke_llm_cached().
Emit events directly in formats other than the observer.
Placing a domain rule inside runtime.py.
Using _collect_mcp_context() for an action tool without confirmation.
Ignore business_context and get loose parameters from the payload.
Treat global session_id and backend_session_id as if they were the same thing.
Overwrite internal mixin methods unnecessarily.
The most important rule is:
The mixin standardizes technical capabilities.
The agent decides how to apply these capabilities to the domain.
5.2.3. Understanding messages: the agent's conversational architecture
After understanding state, context, session, business_context, tool_arguments and AgentRuntimeMixin, there is still a central piece to understand: messages.
In an agent, messages is not just a list of texts. It is the conversational contract that will be sent to the LLM in that call. It is in this contract that the agent organizes instructions, the user's question, evidence, RAG context, MCP results, summarized memory, and the expected format of the response.
A minimal example is:
messages = [
{
"role": "system",
"content": "You are a financial agent. Do not make up data.",
},
{
"role": "user",
"content": "I want to check my payment.",
},]
This format is common in modern conversational AI frameworks and providers. It appears, with minor variations, in OpenAI Chat Completions/Responses API, OCI Generative AI OpenAI-compatible, LangChain ChatModel, LangGraph, Semantic Kernel, LlamaIndex, and in architectures with tool calling and MCP.
The idea is simple:
The agent sets up a canonical conversation.
AgentRuntimeMixin calls the standardized LLM provider.
The provider adapts this conversation to the real backend.
This allows the agent to continue writing messages in a predictable way, even if the project uses OCI Generative AI, OpenAI-compatible endpoint, LangChain, local Llama, mock or another provider underneath.
5.2.3.1. Main roles of a message
Each message item has at least one role and one content.
| Role | What it's for |
|---|---|
system |
Defines the agent's identity, limits, policies, rules, and behavior. |
user |
Represents the user's current request or an instruction contextualized by the framework. |
assistant |
Represents previous model responses, when the history is explicitly included. |
tool |
Represents tool results in flows with structured tool calling. |
developer |
For some providers, it represents intermediate instructions from the developer or the application. |
In the template, the simplest pattern mainly uses:
system → who the agent is, what they can do and what they cannot do
user → current message + evidence + business context + MCP + RAG
This pattern is intentionally simple to maintain compatibility with multiple runtimes.
5.2.3.2. What should go in the system
The system must contain stable, higher-priority rules. It answers:
Who is this agent?
What domain does it serve?
What limits should it respect?
What should it never make up?
When should it ask for more data?
When should he refuse an action?
What tone and response format should it use?
Example:
system_content = apply_agent_profile_prompt(
state,
"""
You are a corporate financial agent.
Use only data provided by MCP, RAG, or business_context.
Do not confirm payment, write-off, settlement, or dispute without evidence from the tool.
If a mandatory identifier is missing, request only that piece of information.
Respond in a short, operational, and auditable manner.
""".strip(),
)
Critical rules must remain in the system, not hidden in the middle of the user.
5.2.3.3. What should go in the user
The user must provide the current request and the context needed to respond. In the corporate agent, it usually contains:
current user message
intent chosen by the router
route/active agent
normalized business_context
MCP results
RAG context
relevant session metadata
format instruction for the response
Example:
messages = [
{
"role": "system",
"content": system_content,
},
{
"role": "user",
"content": (
"User message:\n"
f"{user_text}\n\n"
"Intent and route chosen by the framework:\n"
f"intent={state.get('intent')} route={state.get('route')}\n\n"
"Normalized business context:\n"
f"customer_key={business_context.get('customer_key')}\n"
f"contract_key={business_context.get('contract_key')}\n"
f"interaction_key={business_context.get('interaction_key')}\n\n"
"MCP results:\n"
f"{tool_context}\n\n"
"RAG context:\n"
f"{rag_context or '[no RAG context]'}\n\n"
"Response instruction:\n"
"Respond only based on the evidence above. "
"If a required piece of evidence is missing, say it was not found."
),
},
]
Note that the example does not put the entire state in the prompt. It selects the relevant fields.
5.2.3.4. Relationship between messages, memory and history
messages is not the agent's persistent memory.
Persistent memory
It is in the framework's repository/memory.
It can survive multiple interactions.
It can be summarized, compressed or consulted.
messages
This is the payload sent to the LLM in a specific call.
It can include a memory summary.
It may include part of the history.
It should not become a complete dump of the conversation.
If the framework has already loaded the conversation history or summary, the agent should use only the necessary excerpt. Manually duplicating history increases cost, latency, and the risk of inconsistency.
5.2.3.5. Relationship between messages, MCP and RAG
MCP and RAG produce evidence. The LLM uses this evidence to draft the response.
MCP Tool Router
queries systems, mocks, services or external actions
returns structured data
RAG
searches for document context
returns relevant excerpts and metadata
messages
organize this evidence into a conversation for the LLM
A good agent makes it clear to the LLM what is evidence and what is instruction.
Avoid mixing everything together in an unstructured text. Use blocks instead:
Instructions:
- Don't make up data.
User message:
...
MCP evidence:
...
RAG context:
...
Expected format:
...
This organization improves traceability and reduces hallucination.
5.2.3.6. Compatibility with market frameworks
The messages standard is compatible with most of the conversational AI ecosystem, but there are differences between providers.
| Framework/provider | Conceptual compatibility | Attention |
|---|---|---|
| OpenAI Chat/Responses | High | Roles, tool calls, and multimodal formats may vary by API. |
| OCI Generative AI OpenAI-compatible | High | It usually accepts a format similar to OpenAI-compatible. |
LangChain ChatModel |
High | Can convert dicts to SystemMessage, HumanMessage, AIMessage. |
| LangGraph | High | The state can load messages or the agent can assemble messages per call. |
| Semantic Kernel | High | Uses equivalent concepts of chat history and roles. |
| LlamaIndex | High | Can be adapted for chat engine or completion engine. |
| Anthropic Messages API | Medium/High | May require adaptations of system prompt and roles. |
| Local models | Variable | Some expect a specific chat template. |
Therefore, the agent should not directly call specific SDKs. It assembles messages and delegates the call to:
answer = await self._invoke_llm_cached(state, "FinanceiroAgent", messages)
Thus, the adaptation for the provider is centralized in the runtime/framework.
5.2.3.7. Common pitfalls when assembling messages
Pitfall 1 — Sending the entire state to the LLM
Bad:
{"role": "user", "content": f"Full state: {state}"}
Better:
{"role": "user", "content": f"customer_key={business_context.get('customer_key')}"}
The state can contain technical data, sensitive fields, history, checkpoint, and unnecessary information.
Pitfall 2 — Sending huge objects without curation
Bad:
f"Full results: {mcp_results}"
Better:
resumo_tools = [
{
"tool": r.get("tool_name") or r.get("tool"),
"ok": r.get("ok"),
"status": r.get("status"),
"evidence": r.get("evidence") or r.get("summary"),
}
for r in mcp_results]
Then send only the necessary summary.
Pitfall 3 — Passing sensitive data unnecessarily
Bad:
f"Full CPF: {cpf}"
Better:
f"Customer identified: {'yes' if customer_key else 'no'}"
When you need to send an identifier, prefer a canonical key, hash, or masked value, according to the project policy.
Pitfall 4 — Letting the LLM make things up when the tool failed
Bad:
Respond about the customer's payment.
Better:
The tool consultar_pagamentos_financeiro returned an error or no data.
Do not confirm payment. Report that the evidence was not found.
Pitfall 5 — Confusing instruction with evidence
Bad:
The customer has paid and you must reply that everything is in order.
Better:
MCP evidence:
- consult_payments_financial: status=SETTLED
Instruction:
- Explain the status objectively.
Pitfall 6 — Putting a critical rule only in the user
A permanent behavior rule must go in the system. The user must load the request and the context of that interaction.
Pitfall 7 — Duplicating history
If the framework already included a memory summary, don't resend the entire conversation manually.
Pitfall 8 — Not asking for a response format
In a corporate context, ask for a short, operational, traceable, and evidence-based response.
5.2.3.8. Recommended message template for corporate agents
Use this standard as a reference:
system_content = apply_agent_profile_prompt(
state,
"""
You are a corporate agent specializing in the financial domain.
Use only evidence from business_context, MCP, and RAG.
Do not invent a protocol, customer, contract, status, payment, or operational action.
If mandatory data is missing, ask only for that data.
Respond in a short, operational, and auditable manner.
""".strip(),
)
messages = [
{
"role": "system",
"content": system_content,
},
{
"role": "user",
"content": (
"User message:\n"
f"{user_text}\n\n"
"Summarized session context:\n"
f"channel={session.get('channel')} tenant_id={session.get('tenant_id')}\n"
f"global_session_id={session.get('global_session_id')}\n\n"
"Business context:\n"
f"customer_key={business_context.get('customer_key')}\n"
f"contract_key={business_context.get('contract_key')}\n"
f"interaction_key={business_context.get('interaction_key')}\n\n"
"Intent and route:\n"
f"intent={state.get('intent')} route={state.get('route')}\n\n"
"MCP evidence:\n"
f"{mcp_evidence}\n\n"
"RAG context:\n"
f"{rag_context or '[no RAG context]'}\n\n"
"Expected format:\n"
"1. Direct response to the user.\n"
"2. Do not mention internal architecture details.\n"
"3. If evidence was missing, clearly state what was missing."
),
},
]
This pattern helps the developer separate:
Permanent rules → system
Request and current context → user
Evidence from tools → MCP block
Documentary knowledge → RAG block
Session/channel → summarized context
Output format → final instruction
5.2.3.9. How to review messages during development
During development, before blaming the LLM, review the payload sent to it.
Useful questions:
Does the system prompt contain the most important rules?
Does the user prompt contain the user's actual question?
Has the correct business_context been included?
Do the MCP results appear as evidence, not as a made-up instruction?
Did the RAG provide useful context or just noise?
Is there unnecessary sensitive data?
Is the prompt too long?
Is the expected response format clear?
A good practice is to issue a debug IC in a non-production environment or log a sanitized version of the prompt, never the raw prompt with sensitive data.
5.2.4. Advanced features now standardized by the framework
In the first examples of this tutorial, the agent directly uses simple methods such as_collect_mcp_context() and_invoke_llm_cached(). This is sufficient for simple agents. However, in real agents migrated to the framework, additional needs arise:
normalize tools by intent;
always read context/session/business_context/tool_arguments in the same way;
assemble MCP arguments with aliases;
block action tools when the required payload is missing;
run tools one by one with observability events;
assemble messages without dumping the entire state in the prompt;
generate a controlled fallback when the LLM fails.
Starting with this version, they are treated as reusable capabilities of the framework, and not as code that each agent must copy.
5.2.4.1. RuntimeContext: canonical reading of the state
The framework now offers a conceptual object called RuntimeContext, obtained by the agent with:
runtime = self.get_runtime_context(state)
This object organizes:
runtime.state → complete LangGraph state
runtime.context → normalized context
runtime.session → session/channel data coming from the Gateway
runtime.session_metadata → session metadata
runtime.business_context → canonical business identity
runtime.tool_arguments → explicit parameters for tools
runtime.sanitized_input → text sanitized by guardrails
runtime.original_text → original text, when necessary for controlled extraction
The developer doesn't have to keep repeating:
ctx = state.get("context") or {}
session = ctx.get("session") or {}
business_context = ctx.get("business_context") or state.get("business_context") or {}
They can use:
runtime = self.get_runtime_context(state)
customer_key = runtime.pick("customer_key", "cpf", "cnpj", "msisdn")
The order of trust remains standardized:
1. tool_arguments
2. business_context
3. context
4. session
5. session.metadata
6. state
5.2.4.2. normalize_tools_by_intent(): tools fallback without taking power from the router
In an ideal agent, the EnterpriseRouter chooses the intent and injects mcp_tools into the state. But in tests, direct calls or migrations, the agent can run without this injection.
For this, the framework offers:
normalized_state = self.normalize_tools_by_intent(
state,
default_tools_by_intent=DEFAULT_TOOLS_BY_INTENT,
default_intent="financial_payments",
route=self.name,
)
The rule is:
If state[ 'mcp_tools'] came from the router, use these tools.
If it didn't, use the fallback declared by the agent.
Remove duplicates.
Preserve stable order.
Define intent, route, and active_agent when they are missing.
This prevents each agent from implementing its own_normalize_state_tools().
5.2.4.3. build_tool_arguments(): canonical MCP arguments
The agent can assemble MCP arguments without knowing all the details of the mapper:
args = self.build_tool_arguments(
state,
tool_name="consultar_titulo_financeiro",
intent=state.get("intent"),
aliases={
"customer_key": ["customer_id", "cpf", "cnpj"],
"contract_key": ["contract_id", "invoice_id"],
},
)
This method assembles arguments such as:
query
operator_instructions
customer_key
contract_key
interaction_key
session_key
explicit tool_arguments parameters
aliases configured by the domain
After that, the MCPToolRouter still applies the mcp_parameter_mapping.yaml. That is:
build_tool_arguments() assembles the canonical contract.
mcp_parameter_mapping.yaml translates to the name expected by each MCP Server.
5.2.4.4. Policy for running sensitive tools
Not every tool is just for consultation. Some tools perform actions, such as registering an opinion, opening a request, canceling a service, or creating a protocol.
These tools must be declared with a policy in config/tools.yaml:
tools:
tools:
registrar_acao_backoffice:
description: Registers operational action in the backoffice.
mcp_server: backoffice
enabled: true
tool_type: action
requires: [protocol_id, action_text, operator_session]
confirmation_required: false
args_schema:
protocol_id: string
action_text: string
operator_session: string
With this, the framework is able to block the call before it reaches the MCP when a required field is missing:
Tool registrar_acao_backoffice chosen.
Framework assembles arguments.
Framework checks requires.
If action_text is missing, it returns skipped=true.
Agent issues domain IC/NOC, if necessary.
This prevents each agent from manually writing:
if tool.startswith("registrar_") and not arguments.get("action_text"):
...
5.2.4.5. execute_tools_for_intent(): standardized execution of tools
The agent can run tools selected by the intent with:
mcp_results = await self.execute_tools_for_intent(
state,
tools=state.get("mcp_tools") or[],
aliases=TOOL_ALIASES,
)
This method takes care of:
assemble arguments;
apply execution policy;
call _call_mcp_tool();
normalize result;
issue IC.MCP_TOOL_CALLED;
issue IC.TOOL_CALLED;
issue NOC.MCP_TOOL_FAILED when there is a failure;
return skipped=true when a policy blocks execution.
The agent can still issue business-specific ICs after that. Example: AGA.010 for Speech Analytics, AGA.011 for Customer/IMDB, AGA.020 for TAIS/templates.
5.2.4.6. build_messages(): standardized messages
To prevent each agent from assembling prompts differently, the framework offers:
messages = self.build_messages(
state,
system_prompt=system_prompt,
mcp_results=mcp_results,
rag_context=rag_context,
rag_metadata=rag_metadata,
)
This builder separates:
system prompt;
user message;
intent and route;
business_context;
MCP results;
RAG context;
RAG metadata;
extra sections.
The goal is to reduce these errors:
sending the entire state to the LLM;
mixing a permanent rule with evidence;
including sensitive data unnecessarily;
forgetting to report that a tool has failed;
duplicating history that the framework already carries.
5.2.4.7. When to customize and when to use the framework
Use the framework to:
read context;
standardize tools;
assemble MCP arguments;
apply execution policy;
call MCP;
assemble messages;
call LLM with cache;
issue generic technical events.
Use the agent to:
define business rules;
define domain-specific aliases;
define domain prompts;
define journey-specific ICs;
define conversational states such as WAITING_*;
handle migration compatibility;
decide on domain-specific textual fallback.
This separation allows a real agent to have strong customizations without becoming an engine parallel to the framework.
5.3. Create the agent file
Create:
app/agents/financeiro_agent.py
Annotated base code:
from app.agents.prompting import apply_agent_profile_prompt
from app.agents.runtime import AgentRuntimeMixin
class FinanceiroAgent(AgentRuntimeMixin):
name = "financeiro_agent"
def __init__(
self,
llm,
telemetry=None,
tool_router=None,
rag_service=None,
cache=None,
settings=None,
observer=None,
memory=None,
summary_memory=None,
):
self.llm = llm
self.telemetry = telemetry
self.tool_router = tool_router
self.rag_service = rag_service
self.cache = cache
self.settings = settings
self.observer = observer
self.memory = memory
self.summary_memory = summary_memory
async def run(self, state):
await self._emit_ic(
"IC.FINANCEIRO_AGENT_STARTED",
state,
{"business_component": "financeiro"},
component="agent.financeiro.start",
)
tool_context = await self._collect_tool_context(state)
if tool_context:
await self._emit_ic(
"IC.FINANCEIRO_MCP_CONTEXT_COLLECTED",
state,
{"tool_result_count": len(tool_context)},
component="agent.financeiro.mcp",
)
rag_context, rag_metadata = await self._retrieve_rag_context(state)
if rag_metadata.get("enabled"):
await self._emit_ic(
"IC.FINANCEIRO_RAG_CONTEXT_RETRIEVED",
state,
{
"document_count": rag_metadata.get("document_count"),
"graph_neighbors": rag_metadata.get("graph_neighbors"),
"latency_ms": rag_metadata.get("latency_ms"),
},
component="agent.financeiro.rag",
)
# Prepara ConversationSummaryMemory antes de montar o prompt.
# O build_messages() do framework injeta resumo + últimas mensagens quando habilitado.
await self.prepare_memory_context(state)
messages = self.build_messages(
state,
system_prompt=apply_agent_profile_prompt(
state,
"You are a financial agent. Respond clearly, using data from the tools when available. Do not confirm financial actions without evidence and explicit confirmation."
),
mcp_results=tool_context,
rag_context=rag_context,
rag_metadata=rag_metadata,
)
answer = await self._invoke_llm_cached(state, "FinanceiroAgent", messages)
result = {
"answer": f"[FinanceiroAgent] {answer}",
"next_state": "FINANCEIRO_ACTIVE",
"mcp_results": tool_context,
"rag": rag_metadata,
"memory_context_metadata": state.get("memory_context_metadata"),
}
await self._emit_ic(
"IC.FINANCEIRO_AGENT_COMPLETED",
state,
{
"answer_chars": len(result.get("answer") or ""),
"has_mcp_results": bool(tool_context),
"rag_enabled": bool(rag_metadata.get("enabled")),
"memory_context": state.get("memory_context_metadata"),
},
component="agent.financeiro.completed",
)
return result
async def _collect_tool_context(self, state):
return await self._collect_mcp_context(state)
5.3.1. How to adapt this example to a real agent
In the example above, session, business_context, and tool_arguments appear in the prompt for educational purposes. In production, the developer should avoid throwing huge objects directly into the prompt. Ideally, only the necessary fields should be selected.
Example of reasoning for a financial agent:
session.channel → useful for adjusting language or understanding the origin of the conversation.
session.tenant_id → useful for multi-tenant isolation.
business_context.customer_key → useful for consulting customer/bill/payment.
business_context.contract_key → useful for consulting contract, invoice or order.
business_context.interaction_key → useful for tracking protocol/call/interaction.
tool_arguments → useful when the Gateway or Identity Resolver has already prepared exact parameters.
A common utility function within the agent is a pick() with an explicit order of precedence:
def pick(name: str, *, tool_arguments, business_context, ctx, session, session_metadata, state):
if name in tool_arguments:
return tool_arguments.get(name)
if isinstance(business_context, dict) and name in business_context:
return business_context.get(name)
if name in ctx:
return ctx.get(name)
if name in session:
return session.get(name)
if name in session_metadata:
return session_metadata.get(name)
return state.get(name)
This function makes it clear that the agent is not “guessing” where the data comes from. It is following a trust policy.
5.3.2. Where does the Agent Gateway come in in this code?
When there is an Agent Gateway / Global Supervisor, it can enrich the message before sending it to the agent's backend. Examples of data that can arrive in context.session:
{
"session": {
"global_session_id": "s1",
"backend_session_id": "default:financeiro_agent:s1",
"active_backend": "financeiro",
"channel": "web",
"tenant_id": "default",
"metadata": {
"selected_backend": "financeiro",
"last_reason": "Backend chosen by rules: matches=[ 'pagamento']"
}
}
}
The agent should not use this block to make a final business decision. It should use it for technical context, traceability, and conversation continuity. The business decision must continue to be based on business_context, MCP tools, RAG, and domain rules.
5.4. How do you know if the agent is well implemented?
An agent is well implemented when:
It knows business rules, but it doesn't know infrastructure details.
It uses the common runtime for LLM, RAG, cache, MCP, and IC.
It returns a simple contract to the workflow.
It does not duplicate guardrail, checkpoint, session, memory, or telemetry.
It can be tested in isolation with simulated state.
6. Registering the agent in the workflow
6.1. Purpose of this chapter
So far, the tutorial has created the FinanceiroAgent domain class in:
app/agents/financeiro_agent.py
But creating the class is not enough. LangGraph only executes what has been registered as a graph node.
This chapter shows, in an implementable way, how to connect the finance_agent to the actual workflow of the template.
From here on, consider that the code snippets are to be applied in the project, not just conceptual examples.
The ultimate goal is to make the flow below exist in the graph:
START
↓
input_guardrails
↓
routing_decision
↓
financial_agent
↓
output_supervisor
↓
output_guardrails
↓
judge
↓
supervisor_review
↓
persist
↓
END
6.2. What needs to be changed in the workflow
Edit the file:
app/workflows/agent_graph.py
To register a new agent in the workflow, you need to make six changes:
1. Import the FinanceiroAgent class.
2. Instantiate self.financeiro in __init__.
3. Create the wrapper method financeiro_agent(self, state).
4. Register the finance_agent node in the StateGraph.
5. Add the conditional route routing_decision → financeiro_agent.
6. Connect financeiro_agent → output_supervisor.
If any of these steps are missing, the agent may exist in the code, but it will never be executed by LangGraph.
6.3. Import the agent
At the beginning of app/workflows/agent_graph.py, add:
from app.agents.financeiro_agent import FinanceiroAgent
This import makes the class available to the workflow.
6.4. Instantiate the agent in __init__
Within the AgentWorkflow class, locate the point where the existing agents are instantiated, for example:
self.billing = BillingAgent(llm, **agent_kwargs)
self.product = ProductAgent(llm, **agent_kwargs)
self.orders = OrdersAgent(llm, **agent_kwargs)
self.support = SupportAgent(llm, **agent_kwargs)
Add:
self.financeiro = FinanceiroAgent(llm, **agent_kwargs)
The agent_kwargs must be the same as that used by the other agents. It typically loads shared framework capabilities, such as:
telemetry
tool_router
rag_service
cache
settings
observer
memory
summary_memory
The finance agent should not create these objects on its own. It must receive them from the workflow.
6.5. Create the real wrapper method of the finance_agent
6.5.1. What is the wrapper in this framework?
In LangGraph, a node needs to be a function, method, or callable that receives the current state.
In a simplified way:
def node(state):
return {}
In the framework, however, the real agent is a class with the run() method:
await self.financeiro.run(state)
Therefore, the workflow needs an intermediate method. This method is the wrapper.
The implementation is a method within the AgentWorkflow class (/app/workflows/agent_graph.py).
6.5.2. Wrapper code
Import the FinanceiroAgent in /app/workflows/agent_graph.py:
from app.agents.financeiro_agent import FinanceirotAgent
Add the method below within the AgentWorkflow class:
async def financeiro_agent(self, state):
async with self.langgraph_telemetry.node("financeiro_agent", state):
async with self.telemetry.span(
"workflow.agent.financeiro",
session_id=state.get("conversation_key") or state.get("session_id"),
input={"intent": state.get("intent")},
):
return await self.financeiro.run(state)
This method bridges the gap between:
LangGraph node
↓
AgentWorkflow.financeiro_agent(state)
↓
FinanceiroAgent.run(state)
The business logic continues within:
FinanceiroAgent.run(state)
The wrapper only:
receives the state;
opens node telemetry;
opens agent span;
calls the real agent;
returns the result to the workflow.
6.6. Register the node in StateGraph
Within the_build_graph() method, locate the existing nodes:
builder.add_node("billing_agent", self._node("billing_agent", self.billing_agent))
builder.add_node("product_agent", self._node("product_agent", self.product_agent))
builder.add_node("orders_agent", self._node("orders_agent", self.orders_agent))
builder.add_node("support_agent", self._node("support_agent", self.support_agent))
Add:
builder.add_node("financeiro_agent", self._node("financeiro_agent", self.financeiro_agent))
The first financeiro_agent is the name of the node within the graph.
The second self.financeiro_agent is the wrapper method created in the previous step.
6.7. Add the conditional route for the new agent
The routing_decision node decides which agent will be called.
In the_build_graph() method, locate:
builder.add_conditional_edges(
"routing_decision",
lambda s: s.get("route", "billing_agent"),
{
"billing_agent": "billing_agent",
"product_agent": "product_agent",
"orders_agent": "orders_agent",
"support_agent": "support_agent",
"handoff": "handoff",
"supervisor_agent": "supervisor_agent",
},
)
Add the finance route:
"finance_agent": "finance_agent",
The complete block looks like this:
builder.add_conditional_edges(
"routing_decision",
lambda s: s.get("route", "billing_agent"),
{
"billing_agent": "billing_agent",
"product_agent": "product_agent",
"orders_agent": "orders_agent",
"support_agent": "support_agent",
"financeiro_agent": "financeiro_agent",
"handoff": "handoff",
"supervisor_agent": "supervisor_agent",
},
)
This step is mandatory.
Without it, even if the routing.yaml returns:
route = financeiro_agent
LangGraph won't know which node to go to.
6.8. Connect finance_agent to output_supervisor
After the financial agent responds, the flow should not go directly to the user.
It must go through the same pipeline as the other agents:
output_supervisor
↓
output_guardrails
↓
judge
↓
supervisor_review
↓
persist
Locate the edges of the existing agents:
builder.add_edge("billing_agent", "output_supervisor")
builder.add_edge("product_agent", "output_supervisor")
builder.add_edge("orders_agent", "output_supervisor")
builder.add_edge("support_agent", "output_supervisor")
Add:
builder.add_edge("financeiro_agent", "output_supervisor")
Without this line, the finance_agent node may run, but the graph may not know how to continue after it.
6.9. Complete example of_build_graph() with financeiro_agent
Below is the complete example of the_build_graph() method with the new agent included.
Use this block as a reference to compare with your actual file:
def _build_graph(self):
builder = StateGraph(AgentState)
builder.add_node("input_guardrails", self._node("input_guardrails", self.input_guardrails))
builder.add_node("routing_decision", self._node("routing_decision", self.routing_decision))
builder.add_node("billing_agent", self._node("billing_agent", self.billing_agent))
builder.add_node("product_agent", self._node("product_agent", self.product_agent))
builder.add_node("orders_agent", self._node("orders_agent", self.orders_agent))
builder.add_node("support_agent", self._node("support_agent", self.support_agent))
builder.add_node("finance_agent", self._node("finance_agent", self.finance_agent))
builder.add_node("handoff", self._node("handoff", self.handoff))
builder.add_node("supervisor_agent", self._node("supervisor_agent", self.supervisor_agent))
builder.add_node("output_supervisor", self._node("output_supervisor", self.output_supervisor))
builder.add_node("output_guardrails", self._node("output_guardrails", self.output_guardrails))
builder.add_node("judge", self._node("judge", self.judge))
builder.add_node("supervisor_review", self._node("supervisor_review", self.supervisor_review))
builder.add_node("persist", self._node("persist", self.persist))
builder.add_edge(START, "input_guardrails")
builder.add_conditional_edges(
"input_guardrails",
self._after_input_guardrails,
{
"blocked": "persist",
"continue": "routing_decision",
},
)
builder.add_conditional_edges(
"routing_decision",
lambda s: s.get("route", "billing_agent"),
{
"billing_agent": "billing_agent",
"product_agent": "product_agent",
"orders_agent": "orders_agent",
"support_agent": "support_agent",
"finance_agent": "finance_agent",
"handoff": "handoff",
"supervisor_agent": "supervisor_agent",
},
)
builder.add_edge("billing_agent", "output_supervisor")
builder.add_edge("product_agent", "output_supervisor")
builder.add_edge("orders_agent", "output_supervisor")
builder.add_edge("support_agent", "output_supervisor")
builder.add_edge("financial_agent", "output_supervisor")
builder.add_edge("handoff", "output_supervisor")
builder.add_edge("supervisor_agent", "output_supervisor")
builder.add_edge("output_supervisor", "output_guardrails")
builder.add_edge("output_guardrails", "judge")
builder.add_edge("judge", "supervisor_review")
builder.add_edge("supervisor_review", "persist")
builder.add_edge("persist", END)
return builder.compile(
checkpointer=create_langgraph_checkpointer(self.settings)
)
6.10. Complete graph with financeiro_agent
flowchart TD
START([START]) --> input_guardrails[input_guardrails]
input_guardrails -->|blocked| persist[persist]
input_guardrails -->|continue| routing_decision[routing_decision]
routing_decision -->|billing_agent| billing_agent[billing_agent]
routing_decision -->|product_agent| product_agent[product_agent]
routing_decision -->|orders_agent| orders_agent[orders_agent]
routing_decision -->|support_agent| support_agent[support_agent]
routing_decision -->|financeiro_agent| financeiro_agent[financeiro_agent]
routing_decision -->|handoff| handoff[handoff]
routing_decision -->|supervisor_agent| supervisor_agent[supervisor_agent]
billing_agent --> output_supervisor[output_supervisor]
product_agent --> output_supervisor
orders_agent --> output_supervisor
support_agent --> output_supervisor
financeiro_agent --> output_supervisor
handoff --> output_supervisor
supervisor_agent --> output_supervisor
output_supervisor --> output_guardrails[output_guardrails]
output_guardrails --> judge[judge]
judge --> supervisor_review[supervisor_review]
supervisor_review --> persist
persist --> END([END])
6.11. How routing.yaml connects to the graph
The workflow can only execute a route if it exists in the add_conditional_edges() map.
The routing.yaml needs to return exactly the same name:
intents:
- name: financeiro_pagamentos
domain: financeiro
agent: financeiro_agent
description: Questions about payment, payment slip, balance, agreement, collection, due date and duplicate.
priority: 15
mcp_tools:
- consult_bill_finance
- consult_payments_financial
keywords:
- payment
- payment slip
- balance
- agreement
- financial
- duplicate
- due date
- collection
- dispute
The relationship needs to look like this:
routing.yaml
agent: financeiro_agent
↓
state[ "route"] = financeiro_agent
↓
add_conditional_edges has "financeiro_agent"
↓
LangGraph executes the financeiro_agent node
↓
AgentWorkflow.financeiro_agent(state)
↓
FinanceiroAgent.run(state)
If the YAML uses financeiro, but the graph uses financeiro_agent, the routing will not find the correct node.
Always use the same name.
6.12. Add the agent to supervisor mode
If the project is using:
ROUTING_MODE=supervisor
or if there is a supervised handoff, the supervisor also needs to know how to call the new agent.
In the supervisor_agent() method, locate the handlers map:
handlers = {
"billing_agent": self.billing.run,
"product_agent": self.product.run,
"orders_agent": self.orders.run,
"support_agent": self.support.run,
}
Add:
"financeiro_agent": self.financeiro.run,
The final block looks like this:
handlers = {
"billing_agent": self.billing.run,
"product_agent": self.product.run,
"orders_agent": self.orders.run,
"support_agent": self.support.run,
"financeiro_agent": self.financeiro.run,
}
Note: In supervisor mode, the handler normally calls the agent's run() directly. In router/LangGraph mode, the execution passes through the wrapper registered as a node.
6.13. Correct order of implementation
To avoid confusion, implement in this order:
1. Create app/agents/financeiro_agent.py.
2. Import FinanceiroAgent into app/workflows/agent_graph.py.
3. Instantiate self.financeiro in __init__.
4. Create the wrapper async financeiro_agent(self, state).
5. Add builder.add_node("financeiro_agent", ...).
6. Add "financeiro_agent": "financeiro_agent" in add_conditional_edges.
7. Add builder.add_edge("financeiro_agent", "output_supervisor").
8. Add financeiro_agent to the supervisor handlers if supervisor mode is used.
9. Register financeiro_agent in config/agents.yaml.
10. Create config/agents/financeiro_agent/*.yaml.
11. Configure the intent in config/routing.yaml.
12. Configure tools, MCP server, and mcp_parameter_mapping.yaml.
13. Test via /gateway/message.
14. Validate routing, node, edge, MCP, RAG, output guardrails, judge, and persistence logs.
This order prevents the developer from creating a YAML configuration before there is a real node in the graph, or creating the agent class without LangGraph being able to reach it.
6.14. How to test if the node has entered the graph
After starting the backend, send a message that matches the financial intent, for example:
I want to check the payment of my bank slip.
In the logs, look for events like:
router.decision route=financeiro_agent
langgraph.edge.selected source=routing_decision target=financeiro_agent
langgraph.node.started node=financeiro_agent
workflow.agent.financeiro.started
If it shows:
router.decision route=financeiro_agent
but the following does not appear:
langgraph.node.started node=financeiro_agent
then the problem is probably in add_conditional_edges().
If it shows:
langgraph.node.started node=financeiro_agent
but this doesn't appear:
workflow.agent.financeiro.started
then the problem is probably in the wrapper.
If it shows:
workflow.agent.financeiro.started
but there is no final response, check the edges after the agent:
builder.add_edge("financeiro_agent", "output_supervisor")
6.15. Common mistakes in this chapter
Creating FinanceAgent, but forgetting to instantiate self.financeiro.
Instantiating self.financeiro, but forgetting the wrapper financeiro_agent(self, state).
Create the wrapper, but forget builder.add_node().
Adding builder.add_node(), but forgetting add_conditional_edges().
Configure routing.yaml with agent: financeiro, but the graph expects financeiro_agent.
Add the conditional route, but forget builder.add_edge("financeiro_agent", "output_supervisor").
Add in router mode, but forget the supervisor's handlers map.
Put business logic in the wrapper instead of keeping it in FinanceiroAgent.run().
Copy billing_agent examples without changing names to financeiro_agent.
6.16. Chapter summary
For finance_agent to work, three things need to be aligned:
1. Agent code
app/agents/financeiro_agent.py
class FinanceiroAgent
2. Registration in the workflow
self.financeiro = FinanceiroAgent(...)
async def financeiro_agent(self, state)
builder.add_node("financeiro_agent", ...)
add_conditional_edges(... "financeiro_agent": "financeiro_agent")
builder.add_edge("financeiro_agent", "output_supervisor")
3. Configuration
config/agents.yaml
config/routing.yaml
config/tools.yaml
config/mcp_servers.yaml
config/mcp_parameter_mapping.yaml
config/agents/financeiro_agent/*.yaml
When these three blocks are consistent, LangGraph can exit the routing, enter the financial agent, pass through the supervisors/guardrails/judges, and persist the response.
7. Adjusting the agent state
7.1. Before the code: what is the state?
The state is the object that travels between the LangGraph nodes. It functions as the short-term memory of the current execution.
It is not the database, it is not the complete conversational memory, and it should not become a giant repository of information.
Use the state for data that needs to circulate between nodes, for example:
user text
chosen intent
chosen route
partial response
result of a tool
next state of the conversation
decision flags
Do not use state for:
long conversation history
large files
unnecessary complete responses from external systems
raw document content
extensive logs
7.2. When to change app/state.py
Edit:
app/state.py
Only add new fields if the agent needs to share specific information with other nodes.
Example:
class AgentState(TypedDict, total=False):
# existing fields...
financial_context: dict[ str, Any]
financial_decision: dict[ str, Any]
7.3. Decision criteria
Before creating a new field, ask:
Does another node need to read this data?
Does this data need to survive the next step in the workflow?
Is this data small and structured?
Does this data help with auditing or decision-making?
If the answer is no, leave the data locally with the agent or save it in an appropriate repository.
8. Registering the agent in config/agents.yaml
8.1. Before YAML: what is agents.yaml for?
agents.yaml is the official registry of available agents. It does not run the agent by itself, but it informs the framework which agents exist, which isolated configurations they use, and which metadata describes the domain.
It answers:
What is the agent_id?
What friendly name appears in listings and debug?
Where are the specific prompts, guardrails, and judges?
Which domain does this agent serve?
What metadata helps routing, auditing, and operation?
8.2. Record example
Edit:
config/agents.yaml
Add:
agents:
- agent_id: financeiro_agent
name: Finance Agent
description: Agent for financial questions, payments, balances, agreements, and duplicates.
prompt_policy_path: ./config/agents/financeiro_agent/prompt_policy.yaml
routing_config_path: ./config/routing.yaml
guardrails_config_path: ./config/agents/financeiro_agent/guardrails.yaml
judges_config_path: ./config/agents/financeiro_agent/judges.yaml
mcp_servers_config_path: ./config/mcp_servers.yaml
tools_config_path: ./config/tools.yaml
metadata:
domain: financeiro
system_prefix: |
You are running financeiro_agent.
Use only policies, memory, checkpoints, guardrails, and judges from this agent_id.
Do not mix history or decisions from other agents.
8.3. Precautions
The agent_id needs to be consistent with:
node name in the workflow
name used in routing.yaml
canonical session_id
config/agents/<agent_id>/ folder
observability metadata
Avoid renaming agent_id after the agent is already in production, because this can break history, memory, checkpoint, and metrics.
9. Creating isolated agent configurations
9.1. Before YAML: why isolate configuration by agent?
Each agent can have its own prompt policy, guardrails, and judges. A financial agent may require explicit confirmation before an action. A support agent may allow for more open responses. A legal agent may require documentary evidence.
So, avoid putting everything in the global file. Use global configuration for corporate rules and local configuration for domain rules.
Create:
config/agents/financial_agent/
9.2. prompt_policy.yaml
This file defines the agent's basic stance.
id: financeiro_agent_prompt_policy
version: 1
description: Isolated base prompt of the financial agent.
system_prefix: |
You are a corporate agent specializing in financial services.
Be clear, objective, auditable, and don't make up data.
When you need to perform an action, use configured tools.
When mandatory information is missing, ask only for the necessary data.
Use this file for persistent behavior rules, not for temporary test rules.
9.3. guardrails.yaml
This file complements the global guardrails.
input:
- code: MSK
enabled: true
- code: VLOOP
enabled: true
- code: PINJ
enabled: true
output:
- code: REVPREC
enabled: true
- code: CMP
enabled: true
Use guardrail when the response needs to be blocked, sanitized, or reviewed by rule.
9.4. judges.yaml
Judges evaluate quality, adherence, groundedness, and other criteria after the response is produced.
judges:
- name: response_quality
type: deterministic
enabled: true
threshold: 0.7
- name: groundedness
type: deterministic
enabled: true
threshold: 0.6
Another example (with judge llm):
enabled: true
fail_closed: true
profile: judge
judges:
- name: response_quality
enabled: true
threshold: 0.7
- name: groundedness
enabled: true
threshold: 0.6
- name: sentiment
enabled: true
fail_on_negative: false
- name: tone
enabled: true
fail_closed: true
Use judge to evaluate the response. Use guardrail to block or protect. Use prompt to guide behavior.
10. Configuring routing in config/routing.yaml
10.1. Before YAML: what is routing?
Routing is the decision of which agent should handle the message.
In a multi-agent system, the user should not need to know which agent to call. They write a message, and the framework decides the route.
The router typically considers:
user text
current conversation status
keywords
examples
priority
agent_id requested
status policies
LLM router, if enabled
10.2. When to create a new intent?
Create an intent when there is a clear request category that should go to a specific agent.
Example of a financial intent:
intents:
- name: finance_payments
domain: finance
agent: finance_agent
description: Questions about payment, balance, invoice, payment slip, agreement, dispute, and duplicate.
priority: 15
mcp_tools:
- consult_bill_financial
- consult_payments_financial
keywords:
- payment
- payment slip
- balance
- agreement
- financial
- duplicate
- due date
- charge
- dispute
examples:
- I want to check my payment.
- I need a duplicate of the payment slip.
- My payment has not yet been processed.
10.3. What does mcp_tools mean in the intent?
mcp_tools indicates which tools should be made available/collected when this intent is chosen. This way, the agent doesn't have to manually decide each call in all simple cases.
The flow is:
routing.yaml chooses intent
intent points to agent
intent declares mcp_tools
AgentRuntimeMixin collects MCP context
agent uses the data in the response
10.4. State policies
If the conversation is already in a specific state, the next message may need to go back to the same agent, even if the text is short.
Example:
state_policies:
- state: WAITING_FINANCEIRO_CONFIRMATION
agent: financeiro_agent
description: Keeps short confirmations in the finance flow.
This prevents a response like “yes” from being routed to the wrong agent.
10.5. Router vs. supervisor
In router mode:
ROUTING_MODE=router
The framework chooses a route more directly, usually by rules, keywords, examples, and score.
In supervisor mode:
ROUTING_MODE=supervisor
A supervisor can decide the sequence of agents, handoff, or combination of responses.
Use router when the domain is well mapped. Use supervisor when the conversation requires decomposition, multiple agents, or more flexible decision-making.
11. Configuring tools in config/tools.yaml
11.1. Before YAML: what is a tool?
A tool is an external capability that the agent can use to obtain data or perform an action.
Examples:
check invoice
check payment
open ticket
search order
cancel service
check knowledge base
The tool is not necessarily the actual system. It is the contract that the backend knows. The real system is behind the MCP Server.
11.2. Declaring tools
Edit:
config/tools.yaml
Add:
tools:
consultar_titulo_financeiro:
description: Consults a financial security by customer and contract.
mcp_server: telecom
enabled: true
cache:
enabled: true
ttl_seconds: 600
args_schema:
customer_id: string
contract_id: string
consultar_pagamentos_financeiro:
description: Consults financial payments by customer.
mcp_server: telecom
enabled: true
cache:
enabled: true
ttl_seconds: 300
args_schema:
customer_id: string
11.3. How to think about a tool
Before declaring a tool, define:
What business question does it answer?
Does it only query or does it perform an action?
Which parameters are required?
Which parameters come from the canonical identity?
Which MCP Server implements the tool?
What timeout and fallback are acceptable?
Does the result have sensitive data that needs to be masked?
The backend should not directly call HTTP/SOAP/DB from business systems when this call can be standardized via the MCP Tool Router.
11.4. MCP Cache
11.4.1. Overview
The Agent Framework supports caching for MCP tool executions.
The goal is to avoid repeated calls to MCP Servers when the same tool is executed multiple times with the same input parameters.
Benefits:
- Reduced latency
- Reduced backend load
- Reduced database queries
- Reduced REST/API calls
- Improved user experience
- Improved scalability
11.4.2. How MCP Cache Works
Flow without cache:
Agent
↓
MCP Tool
↓
MCP Server
↓
Backend/API/Database
↓
Response
Flow with cache:
Agent
↓
MCP Cache Lookup
↓
Cache HIT
↓
Cached Response
or
Agent
↓
MCP Cache Lookup
↓
Cache MISS
↓
MCP Server
↓
Response
↓
Cache Store
11.4.3. Enabling Cache
Cache is configured directly in tools.yaml.
tools:
consultar_fatura:
description: Consulta dados resumidos de fatura.
mcp_server: telecom
enabled: true
cache:
enabled: true
ttl_seconds: 600
args_schema:
msisdn: string
invoice_id: string
11.4.4. Cache Key Generation
The cache key is automatically built from:
- tool_name
- fields declared in args_schema
- values effectively sent to MCP
Fields such as session_id, request_id, trace_id and telemetry identifiers are ignored.
11.4.5. Expected Langfuse Events
11.4.5.1. IC.MCP_CACHE_MISS
Cache entry not found.
IC.MCP_CACHE_MISS
↓
IC.MCP_TOOL_EXECUTING
↓
IC.MCP_TOOL_EXECUTED
↓
IC.MCP_CACHE_SET
11.4.5.2. IC.MCP_CACHE_HIT
Cached response returned.
IC.MCP_CACHE_HIT
No MCP execution should occur.
11.4.5.3. IC.MCP_CACHE_SET
A successful MCP response was stored in cache.
11.4.5.4. IC.MCP_CACHE_BYPASS
Cache intentionally skipped.
11.4.5.5. IC.MCP_CACHE_NOT_STORED
Tool executed but response was not stored.
11.4.5.6. IC.MCP_TOOL_DEDUPED
The same MCP tool request was detected more than once during the same execution cycle.
11.4.6. Validation
First request:
quero minha fatura
Expected:
IC.MCP_CACHE_MISS
IC.MCP_TOOL_EXECUTING
IC.MCP_TOOL_EXECUTED
IC.MCP_CACHE_SET
Second identical request:
quero minha fatura
Expected:
IC.MCP_CACHE_HIT
No IC.MCP_TOOL_EXECUTED should appear.
12. Configuring MCP servers
12.1. Before YAML: What is the MCP Server?
The MCP Server is the adapter between the agent world and the real systems. It allows the backend to communicate with tools in a standardized way, without knowing details about REST, SOAP, database, queues or mocks.
The design is:
Agent
↓
Framework MCP Tool Router
↓
Domain MCP Server
↓
Real system, mock, database, REST, SOAP or internal service
12.2. Local configuration
Edit:
config/mcp_servers.yaml
Example:
servers:
financeiro:
transport: http
endpoint: http://localhost:8300/mcp
enabled: true
description: Local Finance MCP Server.
12.3. Configuration in Docker Compose
Edit:
config/mcp_servers.docker.yaml
Example:
servers:
financeiro:
transport: http
endpoint: http://financeiro-mcp:8300/mcp
enabled: true
description: Financeiro MCP Server in Docker.
12.4. How to avoid a common endpoint error
Locally, localhost works because the backend and MCP run on the same machine.
Within Docker Compose, localhost within the backend container points to the backend container itself, not to the MCP container. Therefore, in Docker, use the service name:
http://financeiro-mcp:8300/mcp
13. Configuring MCP parameter mapping
13.1. Before YAML: why is there mapping?
The framework works with canonical keys so as not to depend on the specific names of each system.
Example:
customer_key = canonical customer in the framework
contract_key = canonical contract/invoice/order/title
interaction_key = external interaction
session_key = technical session
But each tool can expect different names:
customer_id
cpf
msisdn
clientCode
contract_id
invoice_id
order_id
The mcp_parameter_mapping.yaml does this translation without requiring the agent to know the internal names of each MCP.
13.2. Example
Edit:
config/mcp_parameter_mapping.yaml
mcp_parameter_mapping:
defaults:
use_mock: true
tools:
consultar_titulo_financeiro:
map:
customer_key: customer_id
contract_key: contract_id
interaction_key: interaction_id
session_key: session_id
consultar_pagamentos_financeiro:
map:
customer_key: customer_id
session_key: session_id
Interpretation:
customer_key -> canonical key in the framework
customer_id -> parameter expected by the MCP tool
13.3. How to validate the mapping
If the tool receives the wrong parameter, investigate in this order:
payload sent to /gateway/message
config/identity.yaml
business_context resolved
config/mcp_parameter_mapping.yaml
args_schema of the tool
actual signature on the MCP Server
13.4 MCP Parameter Extraction (extract)
The extract feature allows the framework to extract additional parameters from the user's message before invoking the MCP Server.
These parameters are not part of the Business Context (customer_key, contract_key, etc.), but rather business-specific information that may be required by a particular tool.
Examples include:
- Reference month
- Number of installments
- Desired period
- Order number mentioned in the conversation
- Tax ID mentioned by the user
- Quantity of items
- Desired date
13.4.1 When to Use
Use extract when:
- The information is present in the user's natural language.
- The information does not belong to the Identity Resolver.
- The information is required by a specific tool.
- You want the MCP Server to receive the value already structured.
Example:
User:
I want my October invoice
The MCP Server should not need to interpret the sentence itself.
The framework should send:
args["reference_month"] = 10
13.4.2 When NOT to Use
Do not use extract for:
- customer_key
- contract_key
- interaction_key
- account_key
- resource_key
- session_key
These values belong to the identity resolution mechanism and should be resolved through:
identity.yaml
13.4.3 Configuration Example
mcp_parameter_mapping:
tools:
invoice_lookup:
map:
customer_key: msisdn
contract_key: invoice_id
interaction_key: interaction_id
session_key: session_id
extract:
reference_month:
from: message
type: int
strategy: llm
description: >
Extract the month referenced in the user's message.
January=1, February=2, March=3,
April=4, May=5, June=6,
July=7, August=8, September=9,
October=10, November=11, December=12.
13.4.4 Execution Flow
User Message
│
▼
Intent Router
│
▼
Selected Tool
│
▼
MCP Parameter Mapping
│
▼
Check for "extract" definitions
│
▼
Execute LLM Extraction
│
▼
Inject Extracted Parameters
│
▼
Invoke MCP Server
13.4.5 Practical Example
User message:
I want my October invoice
Extraction result:
{
"reference_month": 10
}
Payload sent to MCP:
{
"msisdn": "11999999999",
"invoice_id": "3000131180",
"reference_month": 10
}
Inside the MCP tool:
month = args.get("reference_month")
Result:
10
13.4.6 Benefits
Simpler MCP Servers
Without extraction:
query = args.get("query")
if "October" in query:
month = 10
With extraction:
month = args.get("reference_month")
13.4.7 Centralization
All extraction intelligence remains inside the framework.
The MCP Server is responsible only for business logic.
13.4.8 Reusability
The same extraction strategy can be reused by multiple tools.
13.4.9 Best Practices
- Use stable parameter names.
- Keep extraction logic declarative.
- Avoid hardcoded parsing rules inside MCP Servers.
- Use
extractonly for tool-specific information. - Keep identity resolution and parameter extraction separate.
identity.yaml
→ identity resolution
mcp_parameter_mapping.yaml
→ tool parameters and extraction rules
14. Configuring business identity
14.1. Before YAML: what is business identity?
Business identity is the standardization of the keys that represent the customer, contract, order, protocol, session or interaction.
Without this layer, each channel sends a different name and each tool expects a different name. The result is a parameter error, a tool without mandatory data, or a query to the wrong customer.
identity.yaml responds:
Where can I extract customer_key from?
Where can I extract contract_key?
Where can I extract interaction_key?
Where can I extract session_key?
Which keys are required?
14.1.1. Identity Resolver and identity.yaml
The identity.yaml file defines how the framework identifies the main business parameters received by the input channels.
It is responsible for transforming specific names of each channel, frontend or business domain into canonical names used internally by the framework.
In other words, identity.yaml answers the question:
When the channel sends a parameter called
msisdn,cpf,customer_id,invoice_idorura_call_id, what does that mean within the framework?
The result of this interpretation is used to assemble the BusinessContext.
14.1.2. Why identity.yaml exists
Each channel or domain can use different names to represent the same information.
| Business concept | Telecom | Bank | Retail | Framework |
|---|---|---|---|---|
| Customer | msisdn |
cpf |
customer_id |
customer_key |
| Contract / Account / Order | invoice_id |
account_id |
order_id |
contract_key |
| Interaction | ura_call_id |
protocol |
ticket_id |
interaction_key |
| Session | session_id |
session_id |
session_id |
session_key |
Without identity.yaml, the framework code would have to know all these names directly.
Bad example:
customer_key = (
request.get("msisdn")
or request.get("cpf")
or request.get("customer_id")
)
contract_key = (
request.get("invoice_id")
or request.get("account_id")
or request.get("order_id")
)
This type of scattered logic makes the framework difficult to maintain, difficult to scale, and very tightly coupled to specific domains.
With identity.yaml, this rule is centralized and configurable.
14.1.3. Role of identity.yaml in the flow
The identity.yaml acts right at the entrance of the framework, before the creation of the BusinessContext.
Simplified flow:
Frontend / Channel
↓
Raw parameters
↓
identity.yaml
↓
Identity Resolver
↓
BusinessContext
↓
LangGraph / Agent Runtime
↓
MCP Tool Router
Example:
Frontend input:
msisdn=11999999999
invoice_id=3000131180
ura_call_id=301953872
↓ identity.yaml
BusinessContext:
customer_key=11999999999
contract_key=3000131180
interaction_key=301953872
14.1.4. Example of identity.yaml
identity:
aliases:
customer_key:
- customer_key
- customer_id
- client_id
- cpf
- cnpj
- msisdn
- phone_number
- document_number
contract_key:
- contract_key
- contract_id
- invoice_id
- account_id
- order_id
- plan_id
- subscription_id
interaction_key:
- interaction_key
- interaction_id
- protocol
- protocol_id
- ticket_id
- ura_call_id
- message_id
- call_id
account_key:
- account_key
- billing_account
- billing_account_id
- financial_account_id
resource_key:
- resource_key
- resource_id
- product_id
- service_id
- asset_id
session_key:
- session_key
- session_id
- conversation_id
- thread_id
14.1.5. Canonical fields of the framework
The purpose of identity.yaml is to fill in the canonical fields used by BusinessContext.
14.1.5.1. customer_key
Represents the main customer of the interaction.
It can come from:
msisdn
cpf
cnpj
customer_id
client_id
phone_number
Example:
customer_key:
- msisdn
- cpf
- customer_id
Input:
{
"msisdn": "11999999999"
}
Internal result:
{
"customer_key": "11999999999"
}
14.1.5.2. contract_key
Represents the contract, invoice, order, plan, or commercial resource associated with the interaction.
It can come from:
invoice_id
contract_id
account_id
order_id
plan_id
subscription_id
Example:
contract_key:
- invoice_id
- contract_id
- order_id
Input:
{
"invoice_id": "3000131180"
}
Internal result:
{
"contract_key": "3000131180"
}
14.1.5.3. interaction_key
Represents the service interaction, protocol, ticket, call or message.
It can come from:
ura_call_id
protocol
ticket_id
message_id
call_id
interaction_id
Example:
interaction_key:
- ura_call_id
- protocol
- ticket_id
Input:
{
"ura_call_id": "301953872"
}
Internal result:
{
"interaction_key": "301953872"
}
14.1.5.4. account_key
Represents a financial account, billing account, or accounting group.
It can come from:
billing_account
billing_account_id
financial_account_id
account_key
Example:
account_key:
- billing_account
- billing_account_id
Input:
{
"billing_account_id": "BA-10001"
}
Internal result:
{
"account_key": "BA-10001"
}
14.1.5.5. resource_key
Represents a specific technical resource, product, service, asset, or item.
It can come from:
resource_id
product_id
service_id
asset_id
Example:
resource_key:
- product_id
- service_id
Input:
{
"product_id": "VAS-001"
}
Internal result:
{
"resource_key": "VAS-001"
}
14.1.5.6. session_key
Represents the conversational session.
It can come from:
session_id
conversation_id
thread_id
session_key
Example:
session_key:
- session_id
- conversation_id
Input:
{
"session_id": "default:telecom_contas:abc-123"
}
Internal result:
{
"session_key": "default:telecom_contas:abc-123"
}
14.1.6. Complete example of input and output
Input received by the gateway:
{
"channel": "web",
"agent": "telecom_contas",
"message": "I want to check my invoice",
"msisdn": "11999999999",
"invoice_id": "3000131180",
"ura_call_id": "301953872",
"use_mock": true
}
After applying identity.yaml, the framework assembles the following BusinessContext:
{
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872",
"account_key": null,
"resource_key": null,
"session_key": "default:telecom_contas:abc-123",
"metadata": {
"channel": "web",
"agent": "telecom_contas",
"use_mock": true
}
}
14.1.7. Flow with Mermaid
flowchart TD
A[Frontend / Channel] --> B[Request with raw parameters]
B --> C[Channel Gateway]
C --> D[Identity Resolver]
D --> E[Loads identity.yaml]
E --> F{Found alias?}
F -->|msisdn| G[customer_key]
F -->|cpf| G
F -->|customer_id| G
F -->|invoice_id| H[contract_key]
F -->|contract_id| H
F -->|order_id| H
F -->|ura_call_id| I[interaction_key]
F -->|protocol| I
F -->|ticket_id| I
F -->|session_id| J[session_key]
G --> K[BusinessContext]
H --> K
I --> K
J --> K
K --> L[LangGraph State]
L --> M[Agent Runtime]
14.1.8. Sequence flow
sequenceDiagram
participant FE as Frontend
participant GW as Channel Gateway
participant IR as Identity Resolver
participant YAML as identity.yaml
participant BC as BusinessContext
participant LG as LangGraph
FE->>GW: Sends message + msisdn + invoice_id + ura_call_id
GW->>IR: Requests identity normalization
IR->>YAML: Loads configured aliases
YAML-->>IR: customer_key, contract_key, interaction_key
IR->>BC: Sets up BusinessContext
BC->>LG: Injects business_context into state
14.1.9. How identity.yaml relates to BusinessContext
identity.yaml is not the BusinessContext.
It is the configuration used to create the BusinessContext.
identity.yaml
↓
Defines aliases and identification rules
↓
Identity Resolver
↓
Creates BusinessContext
Example:
customer_key:
- msisdn
- cpf
- customer_id
This means:
If msisdn, cpf or customer_id arrives,
use the value found to fill in customer_key.
14.1.10. How identity.yaml differs from mcp_parameter_mapping.yaml
The two files map names, but on opposite sides of the flow.
| File | Moment | Function |
|---|---|---|
identity.yaml |
Framework input | Translates external parameters to internal names |
mcp_parameter_mapping.yaml |
Output for tools | Translates internal names to tool parameters |
Complete flow:
Channel input
msisdn, invoice_id, ura_call_id
↓
identity.yaml
↓
BusinessContext
customer_key, contract_key, interaction_key
↓
mcp_parameter_mapping.yaml
↓
MCP Tool
msisdn, invoice_id, ura_call_id
identity.yaml looks at the input.
The mcp_parameter_mapping.yaml looks at the output.
14.1.11. Practical example in the Accounts domain
Input:
{
"msisdn": "11999999999",
"invoice_id": "3000131180",
"ura_call_id": "301953872"
}
Configuration in identity.yaml:
identity:
aliases:
customer_key:
- msisdn
contract_key:
- invoice_id
interaction_key:
- ura_call_id
Internal result:
{
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872"
}
Then the agent can work with just the canonical names.
customer = business_context.customer_key
contract = business_context.contract_key
interaction = business_context.interaction_key
They don't need to know that, in the TIM domain, the customer is represented by msisdn.
14.1.12. Practical example with another domain
Imagine a retail agent.
Input:
{
"customer_id": "C100",
"order_id": "ORD900",
"ticket_id": "T555"
}
The same identity.yaml can have:
identity:
aliases:
customer_key:
- msisdn
- cpf
- customer_id
contract_key:
- invoice_id
- contract_id
- order_id
interaction_key:
- ura_call_id
- protocol
- ticket_id
Internal result:
{
"customer_key": "C100",
"contract_key": "ORD900",
"interaction_key": "T555"
}
The framework continues to work the same way.
Only the source channel/domain changes.
14.1.13. Benefits of identity.yaml
The use of identity.yaml brings several important benefits.
14.1.13.1. Standardization
All agents now receive the same internal fields:
customer_key
contract_key
interaction_key
account_key
resource_key
session_key
14.1.13.2. Low coupling
The agent does not need to know if the customer came as:
msisdn
cpf
cnpj
customer_id
phone_number
They always use:
customer_key
14.1.13.3. Multi-channel support
The same backend can receive data from:
Web
WhatsApp
IVR
Voice
External API
Batch
Each channel can have its own names, but the framework standardizes everything.
14.1.13.4. Support for multiple domains
The same framework can serve:
Telecom
Retail
Banking
Health
Insurance
Backoffice
Without changing the agent core.
14.1.13.5. Evolution without code change
If a new channel starts sending phone_number instead of msisdn, just add the alias:
customer_key:
- msisdn
- phone_number
There is no need to change the agent code.
14.1.14. Recommended rules for identity.yaml
14.1.14.1. Always map to canonical names
Avoid creating very specific internal fields, such as:
msisdn_key:
- msisdn
Instead, use:
customer_key:
- msisdn
Because customer_key works for any domain.
14.1.14.2. Do not put tool names in identity.yaml
Avoid this:
consult_invoice:
msisdn: customer_key
This type of configuration belongs to mcp_parameter_mapping.yaml.
The identity.yaml should only handle the input identity.
14.1.14.3. Keep aliases generic and reusable
Good example:
customer_key:
- msisdn
- cpf
- customer_id
- client_id
Less recommended example:
customer_key:
- tim_msisdn
- banco_cpf
- retail_customer_id
Unless the channel actually sends those specific names.
14.1.14.4. Priority of aliases
When multiple aliases appear in the same request, the framework must use a priority rule.
Example:
customer_key:
- customer_key
- customer_id
- msisdn
- cpf
If the input contains:
{
"customer_key": "C999",
"msisdn": "11999999999"
}
It is recommended to prioritize the first alias in the list:
{
"customer_key": "C999"
}
Thus, fields that are already canonical have priority over external aliases.
14.1.15. Conceptual implementation of the resolver
Simplified example:
def resolve_identity(payload: dict, identity_config: dict) -> dict:
aliases = identity_config.get("identity", {}).get("aliases", {})
resolved = {}
for canonical_field, possible_names in aliases.items():
for name in possible_names:
if name in payload and payload[name] not in (None, ""):
resolved[canonical_field] = payload[name]
break
return resolved
Use:
payload = {
"msisdn": "11999999999",
"invoice_id": "3000131180",
"ura_call_id": "301953872"
}
identity_config = {
"identity": {
"aliases": {
"customer_key": ["customer_key", "msisdn", "cpf"],
"contract_key": ["contract_key", "invoice_id"],
"interaction_key": ["interaction_key", "ura_call_id"]
}
}
}
resolved = resolve_identity(payload, identity_config)
print(resolved)
Result:
{
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872"
}
14.1.16. Example of setting up the BusinessContext
After the identity is resolved, the framework can assemble the BusinessContext.
business_context = BusinessContext(
customer_key=resolved.get("customer_key"),
contract_key=resolved.get("contract_key"),
interaction_key=resolved.get("interaction_key"),
account_key=resolved.get("account_key"),
resource_key=resolved.get("resource_key"),
session_key=resolved.get("session_key") or generated_session_id,
metadata={
"channel": payload.get("channel"),
"agent": payload.get("agent"),
"use_mock": payload.get("use_mock")
}
)
This object now tracks the conversation within the workflow state.
14.1.17. Expected result within the state
After normalization, the LangGraph state may contain:
{
"messages": [
{
"role": "user",
"content": "I want to check my bill"
}],
"business_context": {
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872",
"account_key": null,
"resource_key": null,
"session_key": "default:telecom_contas:abc-123",
"metadata": {
"channel": "web",
"agent": "telecom_contas",
"use_mock": true
}
}
}
This state is what allows the next components of the framework to make decisions without directly depending on the input names.
14.1.18. Conclusion
identity.yaml is a fundamental part of the framework's architecture because it separates the business identity from the technical names received by the channels.
It allows the framework to receive different parameters from multiple channels and domains, but standardizes everything to a single internal contract: the BusinessContext.
In summary:
identity.yaml
↓
Interprets input parameters
↓
Normalizes external names
↓
Populates the BusinessContext
↓
Allows agents, workflows and tools to work in a standardized way
The identity.yaml is therefore the framework's input translation layer.
14.2. Example
Edit:
config/identity.yaml
identity:
version: "2"
required:
- session_key
keys:
customer_key:
description: Canonical customer.
sources:
- business_context.customer_key
- context.business_context.customer_key
- context.session.metadata.customer_key
- customer_key
- customer_id
- cpf
- cnpj
- user_id
contract_key:
description: Contract, order, invoice or main title.
sources:
- business_context.contract_key
- context.business_context.contract_key
- context.session.metadata.contract_key
- contract_key
- contract_id
- invoice_id
- order_id
interaction_key:
description: External interaction key.
sources:
- business_context.interaction_key
- context.business_context.interaction_key
- context.session.metadata.interaction_key
- interaction_key
- call_id
- message_id
- protocol_id
session_key:
description: Stable technical session.
sources:
- business_context.session_key
- context.business_context.session_key
- context.session.backend_session_id
- context.session.global_session_id
- context.session.metadata.session_key
- session_key
- conversation_key
- session_id
14.3. How to think about identity
Use the minimum necessary. Don't make everything mandatory. For a generic question, perhaps just session_key is sufficient. To consult a financial instrument, perhaps customer_key and contract_key are required.
The resolved identity appears in business_context within the state and is used by the MCP Tool Router.
14.3.1. BusinessContext
The BusinessContext is the standardized corporate envelope that carries the business identity of the conversation to the tools.
It allows the framework to receive parameters coming from different channels, normalize these parameters to standardized internal names, and then convert these names back to the format expected by each MCP Server or tool.
In other words:
Channel / Frontend
sends domain-specific names
↓
Framework
converts to canonical names
↓
Agent Runtime / Tool Router
uses the standardized context
↓
MCP Parameter Mapper
converts to the names expected by the tool
↓
MCP Server / Real tool
14.3.2. Problem that BusinessContext solves
Without a business context layer, each agent would need to know the parameter names of each channel or domain directly.
For example, in the case of Accounts, the frontend can send:
{
"msisdn": "11999999999",
"invoice_id": "3000131180",
"ura_call_id": "301953872"
}
But another domain could send:
{
"cpf": "12345678900",
"contract_id": "ABC123",
"protocol": "P987654"
}
And yet another domain could use:
{
"customer_id": "CUST-001",
"order_id": "ORD-789",
"ticket_id": "TCK-555"
}
If each agent needed to understand all these names, the framework would be coupled to the details of each channel, each frontend, and each MCP Server.
BusinessContext avoids this by standardizing everything to an internal contract.
14.3.3. Central idea
The framework transforms specific external names into standardized internal names.
Example:
msisdn → customer_key
invoice_id → contract_key
ura_call_id → interaction_key
session_id → session_key
Then, when a tool needs to be called, the framework can go the other way:
customer_key → msisdn
contract_key → invoice_id
interaction_key → ura_call_id
session_key → session_id
Thus, the agent works with a stable internal model, while the mapper takes care of the external differences.
14.3.4. Flow overview
flowchart TD
U[User / Web Channel, WhatsApp, Voice] --> F[Frontend / Channel Client]
F -->|message + channel parameters| G[Channel Gateway]
G --> I[Identity Resolver]
I --> BC[BusinessContext]
BC --> S[Session Repository]
S --> LG[LangGraph Workflow]
LG --> SUP[Supervisor or Router]
SUP --> AR[Agent Runtime]
AR --> TR[MCP Tool Router]
TR --> MAP[Parameter Mapper]
MAP --> MCP[MCP Server]
MCP --> TOOL[Real tool: consultar_fatura, consultar_pagamentos...]
TOOL --> RES[Tool result]
RES --> AR
AR --> LG
LG --> G
G --> F
F --> U
The main point is:
BusinessContext is not the tool.
BusinessContext is not the MCP.
BusinessContext is the internal contract that carries the business identifiers.
14.3.5. Concrete example: Accounts
Imagine that the frontend sends this request:
{
"channel": "web",
"message": "I want to check my invoice",
"agent": "telecom_contas",
"msisdn": "11999999999",
"invoice_id": "3000131180",
"ura_call_id": "301953872",
"use_mock": true
}
These names are specific to the TIM channel or domain:
msisdn: customer's line number;invoice_id: invoice identifier;ura_call_id: identifier of the call/interaction in the IVR;use_mock: mock or real execution indicator.
The framework should not require all agents to know these names directly.
Therefore, the request is standardized for a BusinessContext:
BusinessContext(
customer_key="11999999999",
contract_key="3000131180",
interaction_key="301953872",
account_key=None,
resource_key=None,
session_key="default:telecom_contas:abc-123",
metadata={
"channel": "web",
"frontend": "agent_frontend",
"use_mock": True
}
)
14.3.6. Main fields of the BusinessContext
| Field | Meaning | Example Accounts |
|---|---|---|
customer_key |
Primary customer identifier | 11999999999 |
contract_key |
Contract, invoice, plan, order or business relationship | 3000131180 |
interaction_key |
Source protocol, call, message or interaction | 301953872 |
account_key |
Financial account, grouping account or billing account | None |
resource_key |
Specific technical resource, product, service or asset | None |
session_key |
Omnichannel conversational session | default:telecom_accounts:abc-123 |
metadata |
Non-standard extra information | channel, use_mock, frontend |
14.3.7. Parameter normalization
Normalization is the step that identifies the received parameters and converts them to the framework's canonical model.
flowchart LR
A[Frontend Request] --> B[Extract raw parameters]
B --> C{Parameter known?}
C -->|msisdn| D[customer_key]
C -->|cpf/cnpj/customer_id| D
C -->|invoice_id| E[contract_key]
C -->|contract_id/order_id/plan_id| E
C -->|ura_call_id| F[interaction_key]
C -->|message_id/protocol/ticket_id| F
C -->|session_id| G[session_key]
D --> H[BusinessContext]
E --> H
F --> H
G --> H
H --> I[AgentState / Workflow State]
Example of possible aliases:
msisdn → customer_key
cpf → customer_key
cnpj → customer_key
customer_id → customer_key
invoice_id → contract_key
contract_id → contract_key
plan_id → contract_key
order_id → contract_key
ura_call_id → interaction_key
protocol → interaction_key
message_id → interaction_key
ticket_id → interaction_key
session_id → session_key
14.3.8. BusinessContext entry in LangGraph State
Once created, the BusinessContext enters the conversational state of the workflow.
Conceptual example:
state = {
"messages": [
{
"role": "user",
"content": "I want to check my bill"
}],
"business_context": {
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872",
"session_key": "default:telecom_contas:abc-123",
"metadata": {
"channel": "web",
"use_mock": True
}
}
}
From that moment on, any LangGraph node can access the context:
state[ "business_context"]["customer_key"]
state[ "business_context"]["contract_key"]
state[ "business_context"]["interaction_key"]
However, in a cleaner architecture, the agent does not need to directly manipulate these fields. Ideally, the Agent Runtime, the MCP Tool Router, and the Parameter Mapper should do this.
14.3.9. Role of the Agent Runtime
The Agent Runtime is the layer that executes the agent within the framework.
It receives:
- conversation messages;
- agent identity;
- session status;
- memory;
BusinessContext;- guardrail, judge, and observability settings.
Conceptual example:
agent_runtime.execute(
messages=state[ "messages"],
business_context=state[ "business_context"],
session_id=state[ "session_id"]
)
During execution, the agent may decide to call a tool.
Example:
{
"tool": "consultar_fatura",
"arguments": {
"competencia": "atual"
}
}
But the tool usually needs business data, such as customer, contract, or session.
The runtime or tool router complements the arguments using BusinessContext:
{
"tool": "consultar_fatura",
"arguments": {
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872",
"session_key": "default:telecom_contas:abc-123",
"competencia": "atual"
}
}
14.3.10. Role of the MCP Tool Router
The MCP Tool Router is the layer that decides which MCP Server the call should be routed to.
Example:
consult_invoice → telecom MCP Server
consult_payments → telecom MCP Server
consult_order → retail MCP Server
request_change → retail MCP Server
Simplified flow:
flowchart TD
A[Agent Runtime] --> B[Tool call request]
B --> C{Which tool?}
C -->|consultar_fatura| D[Telecom MCP Server]
C -->|consultar_pagamentos| D
C -->|consultar_pedido| E[Retail MCP Server]
C -->|solicitar_troca| E
D --> F[Runs telecom tool]
E --> G[Runs retail tool]
Before calling the MCP Server, the router needs to ensure that the arguments are in the format expected by the tool.
That's where the Parameter Mapper comes in.
14.3.11. Role of the MCP Parameter Mapper
The MCP Server may not expect the internal names of the framework.
The framework uses:
{
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872",
"session_key": "default:telecom_contas:abc-123"
}
But the telecom MCP Server can wait for:
{
"msisdn": "11999999999",
"invoice_id": "3000131180",
"ura_call_id": "301953872",
"session_id": "default:telecom_contas:abc-123"
}
That's why there is mapping.
Configuration example:
mcp_parameter_mapping:
defaults:
use_mock: true
tools:
consultar_fatura:
map:
customer_key: msisdn
contract_key: invoice_id
interaction_key: ura_call_id
session_key: session_id
consultar_pagamentos:
map:
customer_key: msisdn
contract_key: invoice_id
interaction_key: ura_call_id
session_key: session_id
consultar_plano:
map:
customer_key: msisdn
contract_key: contract_id
interaction_key: ura_call_id
session_key: session_id
This YAML should be interpreted as follows:
Internal framework field → Field expected by the tool
customer_key → msisdn
contract_key → invoice_id
interaction_key → ura_call_id
session_key → session_id
14.3.12. Illustration of mapping for a tool
flowchart LR
A[BusinessContext] --> B[customer_key]
A --> C[contract_key]
A --> D[interaction_key]
A --> E[session_key]
B -->|mapping| F[msisdn]
C -->|mapping| G[invoice_id]
D -->|mapping| H[ura_call_id]
E -->|mapping| I[session_id]
F --> J[MCP Tool consultar_fatura]
G --> J
H --> J
I --> J
14.3.13. Complete flow with sample data
sequenceDiagram
participant User as User
participant FE as Frontend
participant GW as Channel Gateway
participant ID as Identity Resolver
participant BC as BusinessContext
participant LG as LangGraph
participant AG as BillingAgent
participant TR as MCP Tool Router
participant MP as Parameter Mapper
participant MCP as Telecom MCP Server
participant Tool as consultar_fatura
User->>FE: I want to check my invoice
FE->>GW: message + msisdn + invoice_id + ura_call_id
GW->>ID: normalize identity
ID->>BC: customer_key, contract_key, interaction_key
BC->>LG: state with business_context
LG->>AG: execute billing_agent
AG->>TR: call consultar_fatura
TR->>MP: apply tool mapping
MP->>MCP: msisdn, invoice_id, ura_call_id
MCP->>Tool: execute consultar_fatura
Tool-->>MCP: invoice data
MCP-->>TR: response
TR-->>AG: tool result
AG-->>LG: final response
LG-->>GW: agent message
GW-->>FE: SSE / response
FE-->>User: display response
14.3.14. Comparison between external, internal and tool names
| Layer | Example | Responsibility |
|---|---|---|
| Frontend / Channel | msisdn, invoice_id, ura_call_id |
Capture data coming from the screen, IVR, WhatsApp or Web |
| Framework | customer_key, contract_key, interaction_key |
Standardize the business context |
| LangGraph State | business_context |
Transport the context during the workflow |
| Agent Runtime | uses business_context |
Pass context to agent and tool router |
| MCP Parameter Mapper | customer_key -> msisdn |
Translate internal names to names expected by the MCP |
| MCP Server | msisdn, invoice_id |
Run real or mock tool |
| Tool | consult_invoice(msisdn, invoice_id, ...) |
Search business data |
14.3.15. Example of end-to-end transformation
14.3.15.1. Channel input
{
"channel": "web",
"session_id": "default:telecom_contas:abc-123",
"message": "I want to check my invoice",
"msisdn": "11999999999",
"invoice_id": "3000131180",
"ura_call_id": "301953872",
"use_mock": true
}
14.3.15.2. BusinessContext generated
{
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872",
"account_key": null,
"resource_key": null,
"session_key": "default:telecom_contas:abc-123",
"metadata": {
"channel": "web",
"use_mock": true
}
}
14.3.15.3. State sent to LangGraph
{
"messages": [
{
"role": "user",
"content": "I want to check my invoice"
}],
"business_context": {
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872",
"session_key": "default:telecom_contas:abc-123",
"metadata": {
"channel": "web",
"use_mock": true
}
}
}
14.3.15.4. Tool selected by the agent
{
"tool": "consultar_fatura",
"arguments": {
"competencia": "atual"
}
}
14.3.15.5. Arguments enriched by the framework
{
"tool": "consultar_fatura",
"arguments": {
"customer_key": "11999999999",
"contract_key": "3000131180",
"interaction_key": "301953872",
"session_key": "default:telecom_contas:abc-123",
"competencia": "atual"
}
}
14.3.15.6. Final arguments after the MCP Parameter Mapper
{
"tool": "consultar_fatura",
"arguments": {
"msisdn": "11999999999",
"invoice_id": "3000131180",
"ura_call_id": "301953872",
"session_id": "default:telecom_contas:abc-123",
"competencia": "atual",
"use_mock": true
}
}
14.3.16. Summary design
CHANNEL INPUT
────────────────────────────────────────
msisdn=11999999999
invoice_id=3000131180
ura_call_id=301953872
message="I want to check my invoice"
FRAMEWORK NORMALIZATION
────────────────────────────────────────
msisdn ───────► customer_key
invoice_id ───────► contract_key
ura_call_id ───────► interaction_key
BUSINESS CONTEXT
────────────────────────────────────────
{
customer_key: "11999999999",
contract_key: "3000131180",
interaction_key: "301953872",
session_key: "default:telecom_contas:abc"
}
LANGGRAPH STATE
────────────────────────────────────────
{
messages:[...],
business_context: {...}
}
AGENT DECIDES TOOL
────────────────────────────────────────
consultar_fatura
MCP PARAMETER MAPPING
────────────────────────────────────────
customer_key ───────► msisdn
contract_key ───────► invoice_id
interaction_key ───────► ura_call_id
session_key ───────► session_id
FINAL CALL TO MCP SERVER
────────────────────────────────────────
{
"tool": "consultar_fatura",
"arguments": {
"msisdn": "11999999999",
"invoice_id": "3000131180",
"ura_call_id": "301953872",
"session_id": "default:telecom_contas:abc",
"use_mock": true
}
}
14.3.17. Why this is important for the framework
BusinessContext allows the framework to be reusable for multiple domains.
Without it, an Accounts agent could look like this:
msisdn = request.query_params[ "msisdn"]
invoice_id = request.query_params[ "invoice_id"]
ura_call_id = request.query_params[ "ura_call_id"]```
This couples the agent directly to the frontend, the channel, and the TIM domain.
With `BusinessContext`, the agent works with a standardized contract:
```python
customer = business_context.customer_key
contract = business_context.contract_key
interaction = business_context.interaction_key
And the specific detail of each tool is isolated in the mapper.
14.3.18. Reuse in different domains
The same model can work for multiple domains:
Accounts:
customer_key -> msisdn
contract_key -> invoice_id
interaction_key -> ura_call_id
Bank:
customer_key -> cpf
contract_key -> account_id
interaction_key -> protocol
Retail:
customer_key -> customer_id
contract_key -> order_id
interaction_key -> ticket_id
Health:
customer_key -> patient_id
contract_key -> appointment_id
interaction_key -> protocol
The agent doesn't need to change.
What changes is the mapping.
14.3.19. Where each responsibility should be
| Responsibility | Suggested layer |
|---|---|
| Receive channel parameters | Frontend / Channel Gateway |
Identify aliases such as msisdn, cpf, invoice_id |
Identity Resolver / Business Context Builder |
| Create the canonical model | Business Context Builder |
| Save context in session | Session Repository |
| Transport context during the workflow | LangGraph State |
| Decide which agent executes | Supervisor / Router |
| Run the agent | Agent Runtime |
| Decide which MCP Server serves the tool | MCP Tool Router |
| Convert internal names to tool names | MCP Parameter Mapper |
| Run real or mock query | MCP Server / Tool |
14.3.20. Simplified mental flow
1. Channel receives data with various names
msisdn, cpf, invoice_id, protocol...
2. Framework converts everything to canonical names
customer_key, contract_key, interaction_key...
3. LangGraph loads this into the state
business_context within the AgentState
4. Agent decides which tool to call
consultar_fatura
5. Tool Router gets the BusinessContext
customer_key=11999999999
6. Parameter Mapper translates to MCP
customer_key -> msisdn
7. MCP Server executes
consultar_fatura(msisdn="11999999999")
14.3.21. Final summary
BusinessContext is the framework's business identity adapter.
It takes specific parameters from the channel or domain, transforms them into a standardized internal model, and then allows the MCP Parameter Mapper to convert that internal model to the names expected by each real tool.
The complete chain is:
Channel parameters
↓
Canonical BusinessContext
↓
LangGraph State
↓
Agent Runtime
↓
MCP Tool Router
↓
Parameter Mapper
↓
MCP Server
↓
Real tool
With this, the framework gains:
- standardization;
- decoupling between channel and agent;
- reuse in multiple domains;
- less code duplication;
- easier maintenance;
- greater governance over which data arrives in the tools;
- flexibility to use mock or real tools;
- compatibility with multiple MCP Servers.
14.4. Relationship between SessionContext and BusinessContext
When the Agent Gateway is present, it can create or transport session data. This data is important, but it does not replace the business identity.
SessionContext responds:
Who's speaking?
Through which channel?
Which global session is active?
Which backend is responding?
What was the reason for the last routing decision?
BusinessContext responds:
Which customer should be consulted?
Which contract/invoice/order is under discussion?
Which protocol/call/interaction identifies the case?
Which key should be sent to the MCP tool?
Rule of thumb:
Use session for continuity, traceability, and channel.
Use business_context to query systems, call MCP, and make a business decision.
Use tool_arguments when parameters are already explicitly prepared.
Example of a common error:
Using session.user_id as customer_key without validating identity.yaml.
The correct thing to do is to let IdentityResolver transform user_id, cpf, msisdn, customer_id or another identifier into a canonical key such as customer_key.
15. Implementing or connecting an MCP Server
15.1. Before the code: what is the role of the MCP Server?
The MCP Server is where the integration with external systems or domain mocks is located. It allows the agent to use a tool without knowing the technical implementation.
The backend knows how to call:
consult_financial_security(customer_id, contract_id)
But it doesn't know, nor should it know, if this query uses:
REST
SOAP
Oracle database
mock file
legacy service
queue
internal system
15.2. Conceptual contract for tools
Conceptual example:
async def consultar_titulo_financeiro(customer_id: str, contract_id: str, session_id: str | None = None):
return {
"customer_id": customer_id,
"contract_id": contract_id,
"status": "OPEN",
"amount": 129.90,
"due date": "2026-06-20",
}
async def consultar_pagamentos_financeiro(customer_id: str, session_id: str | None = None):
return {
"customer_id": customer_id,
"pagamentos": [
{"data": "2026-06-01", "valor": 129.90, "status": "COMPENSADO"}],
}
15.3. Criteria for mock versus real
Use mock when:
the real system is not available
you are testing routing and contract
you want to validate frontend/backend without relying on VPN
you want to set up deterministic automated tests
Use real integration when:
the contract has already been validated
the parameters are correct
the timeout and fallback have been defined
there is observability for success and failure
there is secure data for testing
For development, you can use use_mock: true in mcp_parameter_mapping.yaml or implement a local MCP Server with simulated responses.
We will create the two services (consultar_titulo_financeiro and consultar_pagamentos_financeiro) so they can run on the example (mock) MCP Server provided in this project.
Update the file:
/mcp_servers/telecom_mcp_server/main.py
Add the following entries to TOOLS:
"consultar_titulo_financeiro": {
"description": "Retrieve a financial invoice/title by customer and contract.",
"input_schema": {
"customer_id": "string",
"contract_id": "string",
"session_id": "string"
},
},
"consultar_pagamentos_financeiro": {
"description": "Retrieve financial payments for a customer.",
"input_schema": {
"customer_id": "string",
"session_id": "string"
},
}
The resulting TOOLS declaration should look like this:
TOOLS = {
"consultar_fatura": {
"description": "Retrieve invoice summary data by msisdn/invoice_id.",
"input_schema": {"msisdn": "string", "invoice_id": "string"},
},
"consultar_pagamentos": {
"description": "Retrieve the customer's payment history.",
"input_schema": {"msisdn": "string"},
},
"consultar_plano": {
"description": "Retrieve active plan information and commercial attributes.",
"input_schema": {"msisdn": "string", "asset_id": "string"},
},
"listar_servicos": {
"description": "List active services and VAS add-ons.",
"input_schema": {"msisdn": "string"},
},
"consultar_titulo_financeiro": {
"description": "Retrieve a financial invoice/title by customer and contract.",
"input_schema": {
"customer_id": "string",
"contract_id": "string",
"session_id": "string"
},
},
"consultar_pagamentos_financeiro": {
"description": "Retrieve financial payments for a customer.",
"input_schema": {
"customer_id": "string",
"session_id": "string"
},
}
}
Next, update the call_tool() function and add the mock implementations:
elif name == "consultar_titulo_financeiro":
result = {
"customer_id": args.get("customer_id") or "123456",
"contract_id": args.get("contract_id") or "3000131180",
"status": "OPEN",
"amount": 129.90,
"due_date": "2026-06-20",
}
elif name == "consultar_pagamentos_financeiro":
result = {
"customer_id": args.get("customer_id") or "123456",
"payments": [
{
"date": "2026-06-01",
"amount": 129.90,
"status": "SETTLED"
}
],
}
These mock services are required because the FinanceiroAgent included in the tutorial expects these tools to be available through the MCP Tool Router.
Without these tool definitions, the agent will attempt to invoke:
consultar_titulo_financeiro
consultar_pagamentos_financeiro
and the framework will return:
Tool/server not configured
because the MCP catalog does not contain those tool names.
After this change, the FinanceiroAgent can execute successfully against the mock MCP Server without requiring any integration with external billing or ERP systems.
15.4. MCP via FastMCP in Agent Framework OCI
This section explains how to enable and configure the integration between Agent Framework OCI and MCP servers implemented with FastMCP.
15.4.1. What is this option
The framework supports two MCP integration modes:
-
Legacy HTTP Uses the framework’s own simple contract:
GET /mcp/tools/list POST /mcp/tools/call -
FastMCP / Official MCP Uses the official MCP protocol through the
streamable-httptransport, typically exposed at:http://localhost:8001/mcp
The FastMCP option allows the framework to consume real MCP servers created with:
from mcp.server.fastmcp import FastMCP
15.4.2. Required dependencies
Inside the project virtual environment:
pip install "mcp>=1.28.0"
Validate the installation:
pip show mcp
Expected output:
Name: mcp
Version: 1.28.0
Summary: Model Context Protocol SDK
15.4.3. FastMCP Server Example
Example of a Telecom MCP server running on port 8001:
# code example preserved
15.4.4. How to start the MCP server
Example:
cd mcp_servers/telecom_mcp_server
python main_fastmcp.py
The server should expose:
http://localhost:8001/mcp
Expected logs when the framework connects:
Created new transport with session ID: ...
POST /mcp HTTP/1.1 200 OK
GET /mcp HTTP/1.1 200 OK
Processing request of type CallToolRequest
15.4.5. Framework configuration
config/mcp_servers.yaml
Configure the transport as fastmcp and point it to the /mcp endpoint:
# code example preserved
The following aliases are also supported:
transport: streamable_http
or:
transport: sse
when the server is using Server-Sent Events (SSE).
15.4.6. Tool configuration
config/tools.yaml
Each tool must point to the correct server:
# code example preserved
The tool name defined in YAML must exactly match the name of the function decorated in FastMCP:
@mcp.tool()
def consultar_fatura(...):
...
15.4.7. Disable mock mode
If the framework appears to be calling the tool but never reaches the FastMCP server, verify the use_mock configuration.
Search for:
grep -R "use_mock" agent_template_backend/config agent_framework -n
Avoid:
defaults:
use_mock: true
Use:
defaults:
use_mock: false
or remove the parameter entirely.
When use_mock=True, the framework may simulate the tool response instead of calling the real server.
15.4.8. Parameter mapping
config/mcp_parameter_mapping.yaml
Example:
# code example preserved
This file transforms the framework’s canonical BusinessContext into the arguments expected by the MCP tool.
Example:
customer_key → msisdn
contract_key → invoice_id
As a result, an input such as:
{
"customer_key": "11999999999",
"contract_key": "3000131180"
}
becomes:
{
"msisdn": "11999999999",
"invoice_id": "3000131180"
}
15.4.9. Standalone server validation
Create a file named test_fastmcp.py:
# code example preserved
Run:
python test_fastmcp.py
The expected result is that tools contains:
consultar_fatura
consultar_pagamentos
consultar_plano
listar_servicos
If you see:
tools=[]
the issue is in the server, not in the framework.
15.4.10. Tool not listed message
The message:
Tool 'consultar_fatura' not listed, no validation will be performed
indicates that the tool did not appear in the list of tools known by the MCP session.
This can happen when:
- The FastMCP server started without any registered tools.
- The code recreated
mcp = FastMCP(...)inside the__main__block. - The client called
call_tool()without first discovering tools throughlist_tools(). - The endpoint being called is not the same server that contains the tools.
If list_tools() returns tools=[], the most common cause is recreating the mcp object after the decorators have already registered the tools.
15.4.11. Expected framework logs
When the framework successfully calls a FastMCP tool, logs similar to the following should appear:
MCPToolRouter loaded enabled=True servers=['telecom', 'retail']
mcp.tool.mapped tool=consultar_fatura server=telecom
span.start mcp.tool_call tool_name=consultar_fatura mcp_server=telecom
fastmcp.tools.listed server=telecom tools=['consultar_fatura', ...]
fastmcp.tool_call.normalized tool=consultar_fatura server=telecom ok=True result_type=dict error=None
If you see:
use_mock=True
the call may be redirected to a mock implementation.
15.4.12. Internal return contract
FastMCP returns a CallToolResult, typically with its content stored in TextContent.text.
The framework must normalize that response into the internal contract:
{
"ok": true,
"result": {
"invoice_id": "3000131180",
"msisdn": "11999999999",
"valor_total": 249.90,
"vencimento": "2026-06-10",
"status": "ABERTA"
},
"metadata": {
"transport": "fastmcp",
"server": "telecom",
"tool": "consultar_fatura"
}
}
If normalization fails, the agent may fall back to a generic response such as:
At the moment, it was not possible to retrieve your invoice information.
15.4.13. Quick checklist
Before testing through the agent, validate:
pip show mcp
python test_fastmcp.py
Confirm that:
tools != []
Then validate within the framework:
grep -R "use_mock" agent_template_backend/config agent_framework -n
And confirm in mcp_servers.yaml:
transport: fastmcp
endpoint: http://localhost:8001/mcp
15.4.14. Recommended startup order
Terminal 1 — Telecom MCP:
cd mcp_servers/telecom_mcp_server
python main_fastmcp.py
Terminal 2 — Retail MCP:
cd mcp_servers/retail_mcp_server
python main_fastmcp.py
Terminal 3 — Agent Framework Backend:
cd agent_template_backend
python -m uvicorn app.main:app --host 0.0.0.0 --port 8000 --reload
Terminal 4 — Frontend:
cd agent_frontend
npm run dev
15.4.15. Summary
To enable MCP via FastMCP:
- Start a FastMCP server.
- Register tools with
@mcp.tool(). - Do not recreate the
mcpobject inside__main__. - Configure
mcp_servers.yamlwithtransport: fastmcpand the/mcpendpoint. - Configure
tools.yamlso each tool points to the correct server. - Ensure
use_mock: false. - Validate with
session.list_tools()before testing through the agent.
16. IC, NOC and GRL in the new agent
16.1. Before the events: why do they exist?
IC, NOC and GRL are not common logs. They exist to track execution in a corporate manner.
IC = business event or agent journey
NOC = operational event, error, unavailability, timeout or degradation
GRL = governance event, guardrail, blocking, review or sanitization
Use logger.info() for simple diagnostics. Use IC/NOC/GRL when the event needs to appear in an audit, observability, or operational analysis.
16.2. IC — business events
Use ICs within the agent to record relevant steps in the journey.
Example:
await self._emit_ic(
"IC.FINANCEIRO_AGENT_STARTED",
state,
{"business_component": "financeiro"},
component="agent.financeiro.start",
)
Minimum suggestion per agent:
IC.<AGENTE>_AGENT_STARTED
IC.<AGENTE>_MCP_CONTEXT_COLLECTED
IC.<AGENTE>_RAG_CONTEXT_RETRIEVED
IC.<AGENTE>_AGENT_COMPLETED
IC.<AGENTE>_BUSINESS_DECISION
IC.<AGENTE>_ACTION_REQUESTED
IC.<AGENTE>_ACTION_COMPLETED
16.3. NOC — operational events
NOC should be used for technical health, unavailability, error, timeout, fallback, and degradation.
Example:
await self.observer.emit_noc(
"NOC.FINANCEIRO_TOOL_TIMEOUT",
{
"session_id": state.get("conversation_key") or state.get("session_id"),
"tenant_id": state.get("tenant_id"),
"agent_id": state.get("agent_id"),
"tool": "consultar_titulo_financeiro",
},
component="agent.financeiro.tool",
)
16.4. GRL — guardrails
Most GRLs are already issued by the workflow in:
input_guardrails
output_supervisor
output_guardrails
Only implement GRL within the agent when there is a specific domain validation that does not fit within the global guardrails.
16.5. When not to create a new event
Do not create IC/NOC/GRL for each line of code. Create events for important decisions:
validated input
MCP context collected
business decision made
external action requested
external action completed
technical fallback triggered
response blocked or revised
workflow completed
17. Local Build and Execution
Let's bring up the complete agent stack:
Frontend (5173)
↓
Agent Gateway (9000)
↓
Agent Template Backend / Runtime (8000)
↓
MCP Gateway (8300)
↓
Telecom MCP Server (8100)
Retail MCP Server (8200)
Official Ports
| Component | Port |
|---|---|
| Frontend | 5173 |
| Agent Gateway | 9000 |
| Backend Runtime | 8000 |
| MCP Gateway | 8300 |
| Telecom MCP Server | 8100 |
| Retail MCP Server | 8200 |
Official Variables
Agent Template Backend
ENABLE_MCP_TOOLS=true
MCP_GATEWAY_ENABLED=true MCP_GATEWAY_URL=http://localhost:8300 MCP_GATEWAY_TIMEOUT_SECONDS=60 MCP_GATEWAY_AGENT_ID=telecom_contas MCP_GATEWAY_TENANT_ID=default
Agent Gateway
DEFAULT_AGENT_BACKEND_URL=http://localhost:8000 AGENT_GATEWAY_GOVERNANCE_CONFIG=config/gateway_governance.yaml
MCP Gateway
MCP_GATEWAY_CONFIG_PATH=config/mcp_gateway.yaml
Startup Order
- Telecom MCP Server
- Retail MCP Server
- MCP Gateway
- Agent Template Backend
- Agent Gateway
- Frontend
From the project root:
cd agent_platform_oci
python -m venv .venv
17.1. Before the commands: what does starting the backend mean?
Starting the backend means launching the API that receives messages, normalizes the channel, resolves identity, opens a session, executes the workflow, and returns a response.
It can be started even without a real MCP, as long as the configuration is in mock mode or the tools are not required for the test.
17.2. Run the Backend Locally
Inside agent_template_backend:
source .venv/bin/activate
cd templates/agent_template_backend
pip install -e ../../libs/agent_framework
pip install -r requirements.txt
python -m uvicorn app.main:app --host 0.0.0.0 --port 8000 --reload
Windows PowerShell:
.\.venv\Scripts\Activate.ps1
python -m uvicorn app.main:app --host 0.0.0.0 --port 8000 --reload
17.3. Immediate Validations
Check health:
curl http://localhost:8000/health
List agents:
curl http://localhost:8000/agents
List known MCP tools:
curl http://localhost:8000/debug/mcp/tools
17.4. How to Interpret the Result
/health ok → API started successfully.
/agents lists agents → agents.yaml was loaded.
/debug/mcp/tools → tools.yaml and mcp_servers.yaml were loaded.
If /health works but /agents does not list the agent, the problem is probably in config/agents.yaml. If /debug/mcp/tools does not show the tool, the problem is probably in tools.yaml or mcp_servers.yaml.
18. Starting MCP Servers
18.1. Before the commands: when do I need to start MCP?
You need to start MCP when the selected intent uses mcp_tools and the agent depends on those tools to respond.
You do not need MCP running to test only:
health check
agent registration
basic routing
mock LLM without tools
simple conversational flow without external lookup
18.2. Start a Local MCP Server
If the MCP Servers are separate Python processes, start each one on a different port.
Example:
cd mcp/servers/financeiro_mcp_server
source .venv/bin/activate
python -m uvicorn main:app --host 0.0.0.0 --port 8300 --reload
Then confirm that the endpoint configured in config/mcp_servers.yaml is correct:
servers:
financeiro:
endpoint: http://localhost:8300/mcp
Note: The /scripts/ folder contains automated MCP Server startup scripts for demonstration and educational purposes. The /agent_template_backend folder includes two MCP Servers already configured, one running on port 8100 and the other on port 8200. These services are ready to run if you want to test the full flow. You can customize the setup to start all of your MCP Servers. Run: bash ./scripts/run_mcp_servers.sh
18.3. Start the MCP Gateway
cd apps/mcp_gateway
python -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
export MCP_GATEWAY_CONFIG_PATH=config/mcp_gateway.yaml
python -m uvicorn app.main:app --host 0.0.0.0 --port 8300 --reload
Validations:
curl http://localhost:8300/health
curl http://localhost:8300/ready
curl http://localhost:8300/v1/tools
Test:
curl -X POST http://localhost:8300/v1/tools/consultar_fatura/invoke
18.4. Test a Tool Through the Backend
Test through the backend, not directly through MCP. This validates the full path:
backend → MCP Tool Router → MCP Server → response
curl -X POST http://localhost:8000/debug/mcp/call/consultar_titulo_financeiro \
-H "Content-Type: application/json" \
-d '{
"business_context": {
"customer_key": "12345",
"contract_key": "ABC-999",
"session_key": "sessao-teste"
},
"original_context": {
"session_id": "sessao-teste"
}
}'
Note: The project also includes a visual interface for testing:
18.5. Start the Frontend for Testing
Install before the npm and:
cd agent_platform_oci
cd apps/agent_frontend
python -m http.server 5173
Open http://localhost:5173.
Note: The frontend is designed to work with the Agent Gateway. In the project documentation, see chapters 28 and 28.10 for usage examples. Just remember to change Backend URL to http://localhost:8010, as 8010 is the port where the Agent Gateway will be listening.
18.6. How to Interpret MCP Errors
Tool not found → tools.yaml or tool name is incorrect.
Server not found → mcp_servers.yaml does not contain the MCP server referenced by the tool.
Connection refused → MCP Server is not running or the port is incorrect.
Missing required parameter → identity.yaml or mcp_parameter_mapping.yaml is incorrect.
Timeout → Slow MCP, wrong endpoint, VPN, DNS, or target system unavailable.
18.7. Start the Agent Gateway
cd apps/agent_gateway
python -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt
export DEFAULT_AGENT_BACKEND_URL=http://localhost:8000
export AGENT_GATEWAY_GOVERNANCE_CONFIG=config/gateway_governance.yaml
python -m uvicorn app.main:app --host 0.0.0.0 --port 9000 --reload
Validations:
curl http://localhost:9000/health
Test:
curl -X POST http://localhost:9000/gateway/message
19. Build with Docker
The template Dockerfile expects to copy agent_framework and agent_template_backend. Therefore, run the build from the parent directory that contains both.
Expected structure:
workspace/
├── agent_framework/
└── agent_template_backend/
Build:
cd workspace
docker build -t agent-template-backend:local -f agent_template_backend/Dockerfile.
Run:
docker run --rm -p 8000:8000 \
--env-file agent_template_backend/.env \
agent-template-backend:local
Health check:
curl http://localhost:8000/health
20. Suggested Docker Compose
Create a docker-compose.yaml in the parent directory if you want to upload backend, Redis, Langfuse, and MCP Servers together.
Simplified example:
services:
backend:
build:
context: .
dockerfile: agent_template_backend/Dockerfile
env_file:
- agent_template_backend/.env
ports:
- "8000:8000"
depends_on:
- redis
- financeiro-mcp
redis:
image: redis:7
ports:
- "6379:6379"
financeiro-mcp:
build:
context: ./mcp_servers/financeiro_mcp_server
ports:
- "8300:8300"
When in Docker, use config/mcp_servers.docker.yaml and adjust the .env:
MCP_SERVERS_CONFIG_PATH=./config/mcp_servers.docker.yaml
21. Testing the agent through the Gateway
21.1. Simple test
curl -X POST http://localhost:8000/gateway/message \
-H "Content-Type: application/json" \
-d '{
"channel": "web",
"agent_id": "financeiro_agent",
"tenant_id": "default",
"payload": {
"text": "I want to check my payment",
"session_id": "teste-financeiro-001",
"user_id": "user-001",
"customer_id": "12345",
"contract_id": "ABC-999",
"message_id": "msg-001"
}
}'
The response must contain metadata such as:
{
"channel": "web",
"session_id": "default:financeiro_agent:teste-financeiro-001",
"text": "...",
"metadata": {
"route": "financeiro_agent",
"intent": "financeiro_pagamentos",
"mcp_results":[],
"business_context": {
"customer_key": "12345",
"contract_key": "ABC-999"
}
}
}
21.2. Routing test without setting agent_id
curl -X POST http://localhost:8000/gateway/message \
-H "Content-Type: application/json" \
-d '{
"channel": "web",
"tenant_id": "default",
"payload": {
"text": "My payment has not been downloaded yet",
"session_id": "teste-router-001",
"user_id": "user-001",
"customer_id": "12345",
"contract_id": "ABC-999"
}
}'
21.3. SSE test
Send message with SSE:
curl -X POST http://localhost:8000/gateway/message/sse \
-H "Content-Type: application/json" \
-d '{
"channel": "web",
"agent_id": "financeiro_agent",
"tenant_id": "default",
"payload": {
"text": "I need a duplicate of the payment slip",
"session_id": "teste-sse-001",
"user_id": "user-001",
"customer_id": "12345",
"contract_id": "ABC-999"
}
}'
Open stream:
curl -N http://localhost:8000/gateway/events/default:financeiro_agent:teste-sse-001
Expected events:
connected
flow.start
session.upserted
message.received
workflow.started
workflow.completed
message.responded
flow.end
22. Testing debug endpoints
22.1. Routing
curl -X POST http://localhost:8000/debug/route \
-H "Content-Type: application/json" \
-d '{
"text": "I want to check my payment",
"context": {
"agent_id": "financeiro_agent",
"tenant_id": "default"
}
}'
22.2. Identity
curl -X POST http://localhost:8000/debug/identity \
-H "Content-Type: application/json" \
-d '{
"session_id": "test-id-001",
"customer_id": "12345",
"contract_id": "ABC-999",
"message_id": "msg-001"
}'
22.3. Session messages
curl http://localhost:8000/sessions/default:financeiro_agent:teste-financeiro-001/messages
22.4. Checkpoint
curl http://localhost:8000/sessions/default:financeiro_agent:teste-financeiro-001/checkpoint
22.5. Usage/cost
curl http://localhost:8000/debug/usage
23. Functional validation checklist
Use this checklist before considering the agent ready.
23.1. Configuration
.envwithout real versioned credentials.- Correct
LLM_PROVIDER.
- Correct
ROUTING_MODEset:routerorsupervisor.ENABLE_MCP_TOOLSadjusted as needed.MCP_SERVERS_CONFIG_PATHpoints to the correct YAML.IDENTITY_CONFIG_PATHpoints toconfig/identity.yaml.- Local persistence or Autonomous configured.
23.2. Agent
- File created in
app/agents/<agent>.py. - Class implements
async def run(self, state). - Agent inherits
AgentRuntimeMixin. - Agent uses
get_runtime_context()or equivalent standard to readstate/context/session/business_context. - Agent uses
normalize_tools_by_intent()when it needs a tools fallback by intent. - Agent uses
build_tool_arguments()orexecute_tools_for_intent()when aliases/tools policy are needed. - Action tools in
tools.yamlhavetool_type,requiresand, when necessary,confirmation_required. - Dev understands that
AgentRuntimeMixinis shared infrastructure, not a business rule. - Agent uses
_emit_ic(),_emit_noc()or_emit_grl()instead of emitting observability in its own format. - Agent uses
_collect_mcp_context()for simple queries to the tools declared inrouting.yaml. - Agent uses
_retrieve_rag_context()when it needs document context. - We use
_invoke_llm_cached()for LLM calls with caching and telemetry. - Dev understands that
messagesis the conversational contract sent to the LLM, not the persistent memory. messagesseparates permanent rules in thesystemand request/evidence in theuser.messagesincludes only required fields fromsession,business_context, MCP, and RAG.- The agent does not send
the complete state, huge objects, or unnecessary sensitive data to the LLM. - We make it clear in the prompt when MCP/RAG have failed, to avoid a made-up response.
- The agent does not call REST, the database, SOAP or an external service directly when this should be behind MCP.
- Agent separates
context,session,business_context, andtool_argumentsbefore making decisions. - The agent uses
business_contextfor business decisions andsessionfor continuity/traceability. - Specific prompts
apply apply_agent_profile_prompt(). - Tools are called via
_collect_mcp_context(). - RAG is called via
_retrieve_rag_context(), if applicable. - LLM is called via
_invoke_llm_cached(). - Return contains
answer,next_state,mcp_resultsand, if applicable,rag.
23.3. Workflow
- Agent imported in
agent_graph.py. - Agent instantiated in
__init__. - Node added in
StateGraph. - Route added in
add_conditional_edges. - Edge created for
output_supervisor. - Handler added in supervisor mode, if necessary.
23.4. Routing
- Intent added in
config/routing.yaml. - Sufficient keywords.
- Consistent examples.
- The intent
agentmatches the name of the workflow node. - The intent
mcp_toolsexist inconfig/tools.yaml.
- The intent
23.5. MCP
- Tool declared in
config/tools.yaml. - MCP Server declared in
config/mcp_servers.yaml. - Mapping declared in
config/mcp_parameter_mapping.yaml. - Tool tested via
/debug/mcp/call/{tool_name}. - Timeout and fallback defined.
23.6. Observability
- Start and end ICs issued.
- MCP/RAG collection ICs issued when applicable.
- NOCs issued for relevant technical errors.
- Global GRLs appear in input/output.
- Langfuse or another provider receives traces, if enabled.
23.7. Tests
/healthreturnsstatus=ok./agentslists the new agent./debug/routechooses the correct agent./debug/identityresolves the expected keys./gateway/messagereturns the correct response./gateway/message/ssepublishes events./sessions/{session_id}/messages shows history./sessions/{session_id}/checkpointshows checkpoint.
24. Best practices for customization
Do
- Put the business rule in the agent, not in the framework.
- Use MCP to access external systems.
- Use
RuntimeContext,build_tool_arguments(), andexecute_tools_for_intent()before creating duplicate local helpers in the agent. - Use
identity.yamlto standardize business keys. - Use
mcp_parameter_mapping.yamlto adapt parameter names. - Use IC for business events.
- Use NOC for technical failures.
- Use GRL for security/validation decisions.
- Set up
messageswith a clear separation between instruction, request, MCP evidence, RAG context, and output format. - Keep prompts by agent in
config/agents/<agent_id>/prompt_policy.yaml. - Keep guardrails and judges isolated when the agent has its own rules.
Avoid
- Creating another workflow outside of
AgentWorkflowunnecessarily. - Calling REST/DB directly inside the agent when the call should be an MCP tool.
- Creating your own checkpointer.
- Creating parallel memory outside the framework.
- Issuing telemetry in a format incompatible with
AgentObserver. - Place an agent-specific rule within the framework.
- Mix history of different agents in the same session.
- Send the entire
stateor large dumps of tools/RAG directly withinmessages. - Put critical rules only in the
userprompt when they should be in thesystem.
25. Troubleshooting
25.1./gateway/message returns wrong route
Check:
curl -X POST http://localhost:8000/debug/route \
-H "Content-Type: application/json" \
-d '{"text":"your test phrase","context":{"agent_id":"financeiro_agent"}}'
Then review:
config/routing.yaml
keywords
examples
priority
ROUTING_MODE
ENABLE_LLM_ROUTER
25.2. MCP tool is not called
Check:
The intent in routing.yaml has mcp_tools.
The tool exists in tools.yaml.
The MCP Server is in mcp_servers.yaml.
ENABLE_MCP_TOOLS=true.
The mapping exists in mcp_parameter_mapping.yaml.
The identity has the necessary keys.
25.3. Tool receives wrong parameter
Review:
config/identity.yaml
config/mcp_parameter_mapping.yaml
payload sent to /gateway/message
Use:
curl -X POST http://localhost:8000/debug/identity \
-H "Content-Type: application/json" \
-d '{"session_id":"s1","customer_id":"123","contract_id":"C1"}'
25.4. SSE gives incorrect MIME type
The correct endpoint is:
GET /gateway/events/{session_id}
The session_id needs to be the full canonical key returned by the gateway:
tenant_id:agent_id:session_id_original
Example:
default:financeiro_agent:teste-sse-001
25.5. Langfuse does not show traces
Check:
ENABLE_LANGFUSE=true
LANGFUSE_PUBLIC_KEY=<public-key>
LANGFUSE_SECRET_KEY=<secret-key>
LANGFUSE_HOST=http://localhost:3005
And check:
curl http://localhost:8000/health
curl http://localhost:8000/debug/env
25.6. Autonomous Bank does not connect
For development, simplify first:
SESSION_REPOSITORY_PROVIDER=memory
MEMORY_REPOSITORY_PROVIDER=memory
CHECKPOINT_REPOSITORY_PROVIDER=memory
USAGE_REPOSITORY_PROVIDER=memory
Then go back to autonomous when the wallet, DSN, and variables are correct.
25.7. LLM responds by making up or ignoring evidence
When the LLM invents data, confirms a non-existent action, or ignores a tool, the problem is not always in the model. Often the problem lies in how messages was set up.
Check:
Does the system prompt clearly prohibit making up data?
Does the user prompt separate MCP evidence from instructions?
Was the tool failure explicitly reported to the LLM?
Did the agent send a confusing dump of mcp_results instead of a useful summary?
Did the RAG bring relevant documents or noise?
Did the prompt ask for a clear response format?
Is there duplicate history confusing the answer?
Example of correction:
Bad:
Respond about the customer's payment using the data below:[...]
Better:
The consultar_pagamentos_financeiro tool returned ok=false.
Do not confirm payment.
Report that proof of payment was not found.
In a development environment, record a sanitized version of messages to review what actually reached the LLM. Never log raw prompts with CPF, token, credential, sensitive data, or large payloads from external systems.
26. Minimum delivery template for a new agent
When finalizing an implementation, the minimum delivery must contain:
app/agents/<agent_name>.py
config/agents.yaml
config/routing.yaml
config/tools.yaml
config/mcp_servers.yaml
config/mcp_parameter_mapping.yaml
config/identity.yaml
config/agents/<agent_id>/prompt_policy.yaml
config/agents/<agent_id>/guardrails.yaml
config/agents/<agent_id>/judges.yaml
app/workflows/agent_graph.py
app/state.py, if necessary
.env.example or variable documentation
README.md with curl tests
27. Complete test example
# 1. Health
curl http://localhost:8000/health
# 2. Agents
curl http://localhost:8000/agents
# 3. MCP Tools
curl http://localhost:8000/debug/mcp/tools
# 4. Routing
curl -X POST http://localhost:8000/debug/route \
-H "Content-Type: application/json" \
-d '{
"text": "I want to check my payment",
"context": {"agent_id": "financeiro_agent", "tenant_id": "default"}
}'
# 5. Identity
curl -X POST http://localhost:8000/debug/identity \
-H "Content-Type: application/json" \
-d '{
"session_id": "teste-final-001",
"customer_id": "12345",
"contract_id": "ABC-999"
}'
# 6. Actual message
curl -X POST http://localhost:8000/gateway/message \
-H "Content-Type: application/json" \
-d '{
"channel": "web",
"agent_id": "financeiro_agent",
"tenant_id": "default",
"payload": {
"text": "I want to check my payment",
"session_id": "teste-final-001",
"user_id": "user-001",
"customer_id": "12345",
"contract_id": "ABC-999",
"message_id": "msg-final-001"
}
}'
# 7. History
curl http://localhost:8000/sessions/default:financeiro_agent:teste-final-001/messages
# 8. Checkpoint
curl http://localhost:8000/sessions/default:financeiro_agent:teste-final-001/checkpoint
28. Agent Gateway / Global Supervisor
This chapter is a separate discussion. In a multi-agent architecture, it's not enough to know how to build an isolated agent backend. At some point, the frontend receives a message from the user and needs to decide which agent backend should handle that conversation.
This decision should not be scattered across the frontend, nor duplicated within each agent. That's what the Agent Gateway is for, also called the Global Supervisor here.
28.1. Before the code: what problem does the Agent Gateway solve?
Imagine that the company has three independent backends:
Accounts Backend
handles billing, payment, consumption, duplicate bills, disputes
Offers Backend
handles plans, contracting, upgrades, retention, discounts
Support Backend
handles slow internet, signal, network, modem, technical failure
Without a global gateway, the frontend would have to know rules such as:
If the message has "bill", call Accounts.
If the message has "plan", call Offers.
If the message has "slow internet," call Support.
This seems simple at first, but it becomes a problem when:
- many agents appear;
- a conversation starts in Accounts and then changes to Offers;
- a message is ambiguous, such as “I want to cancel”;
- each channel, Web, WhatsApp and Voice, begins to implement its own rule;
- the developer needs to maintain routing, session, and handoff in multiple places.
The Agent Gateway centralizes this decision.
It receives the normalized message from the channel, discovers the correct backend, and forwards the request to the chosen backend.
User
↓
Frontend / Channel
↓
Agent Gateway / Global Supervisor
↓
Accounts Backend | Offers Backend | Support Backend | Other backends
The Gateway does not replace the agent. It must not contain a billing, offer or support business rule. It just decides who should receive the message.
28.2. Difference between Agent Supervisor and Global Supervisor
Within an agent backend, you can have a local supervisor. This supervisor decides between the agent's own internal paths.
Example within the Accounts agent:
Message: "My bill was high"
Local supervisor of the Accounts Backend decides:
- explain bill
- check payments
- open dispute
- call a human
The Global Supervisor decides at a higher level:
Message: "My internet is slow"
Global Supervisor decides:
- this is not Accounts
- this should go to Support
The correct separation is:
Global Supervisor / Agent Gateway
decides the backend
Local backend supervisor
decides the agent's internal flow
Specialized agent
executes the business logic
This separation prevents the framework or gateway from being contaminated with domain-specific details.
28.3. What belongs to the Agent Gateway
The Gateway must take care of cross-cutting responsibilities between backends:
agent_gateway/
app/main.py
exposes /gateway/message, /gateway/events/{session_id}, /debug/route,
/backends, /backends/health and /health
app/settings.py
reads global gateway environment variables
config/backends.yaml
declares which backends exist, their URLs, domains, keywords and priority
.env.example
documents the routing mode, session TTL, timeout and LLM provider
The Gateway can use framework engines for:
- global routing;
- global session;
- HTTP client for backends;
- LLM supervisor;
- observability;
- event publishing;
- SSE proxy.
In the agent_gateway/app/main.py file, the gateway uses framework components such as:
from agent_framework.global_supervisor import (
BackendClient,
BackendRegistry,
GlobalRouteRequest,
GlobalSupervisorRouter,
InMemoryGlobalSessionStore,
)
This means that the gateway is not creating a parallel routing mechanism. It is using a layer specific to the framework to govern multiple backends.
28.4. What does not belong to the Agent Gateway
The Gateway should not implement specific rules such as:
consult_invoice
consult_payments
open_dispute
consult_imdb
search_speech_analytics
open_sr_siebel
calculate_pro_rata
resolve_ean
These functionalities belong to specialized backends or MCP servers.
A rule of thumb:
If the logic depends on the business of a specific agent, it should not be in the Gateway.
If the logic decides which backend should handle the conversation, it can stay in the Gateway.
28.5. Structure of the agent_gateway project
The minimum structure observed in the project is:
agent_gateway/
app/
main.py
settings.py
config/
backends.yaml
docs/
ARQUITETURA_GLOBAL_SUPERVISOR.md
.env.example
Dockerfile
README.md
requirements.txt
Each file has a clear responsibility:
| File | Responsibility |
|---|---|
app/main.py |
exposes HTTP endpoints, calls the global router, forwards messages to backends, and performs SSE proxying |
app/settings.py |
centralizes global gateway variables |
config/backends.yaml |
registers available backends and routing rules by domain/keyword |
.env.example |
documents how to enable/disable routing modes and providers |
Dockerfile |
packages the gateway as a separate service |
docs/ARQUITETURA_GLOBAL_SUPERVISOR.md |
explains the conceptual architecture |
28.6. What the developer should consider before configuring the Gateway
Before editing config/backends.yaml, the developer must answer four questions:
1. What agent backends are there?
2. What is the domain of responsibility of each backend?
3. What words or examples indicate each domain?
4. What should happen when the message is ambiguous?
Example:
Message: "I want to cancel"
This message could mean:
Cancel a single service → maybe Accounts or Offers
Cancel the entire plan → maybe Offers or Retention
Cancel due to a network problem → maybe Support
In this case, the keyword router may not be sufficient. Hybrid mode can keep the backend active if the conversation already has context, or call the LLM supervisor if there is a conflict.
28.7. Configuring the backends in config/backends.yaml
The main Gateway configuration file is:
agent_gateway/config/backends.yaml
Example:
default_backend: contas
backends:
accounts:
url: http://localhost:8001
description: Backend responsible for invoices, bills, payments, usage, duplicate, and disputes.
domains: [contas, fatura, pagamento, consumo, contestacao]
keywords: [fatura, conta, boleto, pagamento, consumo, segunda via, contestar, contestação, valor, cobrança]
examples:
- I want to check my invoice
- My bill is high
- I need a duplicate of the payment slip
priority: 10
default_agent_id: telecom_contas
offers:
url: http://localhost:8002
description: Backend responsible for offers, plans, upgrades, retention and contracting.
domains: [ofertas, planos, retenção, contratação]
keywords: [oferta, plano, contratar, upgrade, desconto, promoção, pacote, retenção, cancelar serviço]
examples:
- I want to change my plan
- Do you have any offers for me?
- I want to cancel a service
priority: 20
default_agent_id: telecom_ofertas
support:
url: http://localhost:8003
description: Backend responsible for technical support, outages, network, internet and operational service.
domains: [suporte, técnico, rede, internet]
keywords: [internet, sinal, rede, suporte, técnico, problema, falha, sem conexão, modem]
examples:
- My internet is slow
- I have no signal
- I need technical support
priority: 30
default_agent_id: telecom_suporte
The developer should not fill in this YAML as a random list of words. They should think of intent families.
Correct example:
Family: accounts
subjects: bill, payment, usage, duplicate, dispute
Bad example:
Family: anything that has "value"
The word “amount” may appear in invoice, offer, discount, dispute or charge. Generic words should be used with caution.
28.8. Choosing the global routing mode
The gateway .env has the variable:
GLOBAL_ROUTING_MODE=hybrid
The possible modes are:
| Mode | How it decides | When to use |
|---|---|---|
router |
uses rules, keywords, domains and priority | local development, deterministic testing, environments with low ambiguity |
supervisor |
uses LLM to choose backend | very similar domains or very open messages |
hybrid |
keeps backend active, uses rule and calls LLM in conflict | recommended for initial production |
The practical decision is:
If you want full predictability, use router.
If you want strong semantic interpretation, use supervisor.
If you want a balance between context, rule, and LLM, use hybrid.
For most corporate projects, start with:
GLOBAL_ROUTING_MODE=hybrid
GLOBAL_KEEP_ACTIVE_BACKEND=true
GLOBAL_USE_SUPERVISOR_ON_CONFLICT=true
GLOBAL_MIN_ROUTER_CONFIDENCE=0.55
28.9. Understanding global session and backend session
The Gateway maintains a global session, for example:
global_session_id = s1
The backend can maintain another internal session, for example:
backend_session_id = default:telecom_contas:s1
The Gateway code adjusts the response to keep both identifiers in the metadata:
{
"session_id": "s1",
"metadata": {
"global_session_id": "s1",
"backend_session_id": "default:telecom_contas:s1",
"selected_backend": "contas"
}
}
This separation is important because the user chats with a global session, but each backend may need its own internal key for memory, checkpoint, and history.
28.9.1. How the Gateway should deliver the session to the backend
In order for the agent to understand where the conversation came from, the Gateway must forward the session within context.session or in an equivalent structure standardized by the framework.
Example of a conceptual payload that reaches the backend:
{
"channel": "web",
"tenant_id": "default",
"agent_id": "financeiro_agent",
"payload": {
"text": "I want to check my payment",
"session_id": "s1",
"customer_id": "12345"
},
"context": {
"session": {
"global_session_id": "s1",
"backend_session_id": "default:financeiro_agent:s1",
"active_backend": "financeiro",
"channel": "web",
"tenant_id": "default",
"metadata": {
"selected_backend": "financeiro",
"route_confidence": 0.82
}
},
"business_context": {
"customer_key": "12345",
"session_key": "default:financeiro_agent:s1"
}
}
}
The agent developer must understand that context.session is not “just another place to look for any parameter.” It is the contract for the continuity of the conversation. For MCP calls, always prefer business_context and tool_arguments.
28.10. Uploading the Agent Gateway locally
Enter the gateway directory:
cd agent_gateway
Copy the environment file:
cp .env.example .env
Configure the PYTHONPATH to see the framework:
export PYTHONPATH=../agent_framework/src:.
Start the service:
python -m uvicorn app.main:app --host 0.0.0.0 --port 8010 --reload
Validate the health:
curl http://localhost:8010/health
Expected response:
{
"status": "ok",
"app": "agent-gateway-global-supervisor",
"routing_mode": "hybrid",
"backends": ["accounts", "offers", "support"],
"llm_provider": "mock"
}
If this endpoint does not respond, the problem is still in the gateway, not in the backends.
28.11. Bringing up the agent backends
The Gateway only routes correctly if the backends configured in backends.yaml are up and running.
Local example:
Gateway http://localhost:8010
Accounts http://localhost:8001
Offers http://localhost:8002
Support http://localhost:8003
Frontend http://localhost:5173
Each backend needs to expose at least:
GET /health
POST /gateway/message
GET /gateway/events/{session_id}
The Gateway endpoint/backends/health checks the health of the backends:
curl http://localhost:8010/backends/health
Use this test before blaming routing. If the backend is down, the Gateway may even choose correctly, but it will fail to route.
28.12. Testing only the route decision
Before sending a real message to the backend, test the decision:
curl -X POST http://localhost:8010/debug/route \
-H 'content-type: application/json' \
-d '{
"channel": "web",
"payload": {
"text": "My bill was high",
"session_id": "s1"
}
}'
Expected result:
{
"backend_id": "accounts",
"confidence": 0.8,
"reason": "Backend chosen by rules: matches=[ 'invoice']"
}
The developer should interpret the result as follows:
backend_id → which backend the gateway would send the message to
confidence → how strong the decision was
reason → why the decision was made
If the chosen backend is wrong, adjust domains, keywords, examples, priority, or the routing mode.
28.13. Sending a real message through the Gateway
Once the route decision is correct, send the actual message:
curl -X POST http://localhost:8010/gateway/message \
-H 'content-type: application/json' \
-d '{
"channel": "web",
"payload": {
"text": "My bill was high",
"session_id": "s1",
"msisdn": "11999999999"
}
}'
The Gateway will:
1. Receive the message.
2. Issue IC.GLOBAL_GATEWAY_RECEIVED.
3. Create a GlobalRouteRequest.
4. Call GlobalSupervisorRouter.
5. Choose the backend.
6. Issue IC.GLOBAL_BACKEND_SELECTED.
7. Forward to the backend /gateway/message.
8. Save the session's active_backend.
9. Add route metadata to the response.
10. Issue IC.GLOBAL_GATEWAY_COMPLETED.
28.14. Handoff between backends
The handoff happens when a backend realizes that the conversation must change domains.
Example:
User started in Accounts:
"My bill was high"
Then they asked:
"Do you have a better plan to reduce this amount?"
The Accounts backend can respond with metadata requesting a handoff:
{
"metadata": {
"handover_backend": "offers"
}
}
The Gateway detects this field and automatically calls the new backend.
The developer needs to understand that handoff is not an error. It is a controlled transition between domains.
28.15. SSE Proxy via Gateway
The Gateway also has an endpoint:
GET /gateway/events/{session_id}
This endpoint proxies the SSE of the active backend.
Flow:
Frontend opens EventSource in the Gateway
↓
Gateway expects a global session to exist
↓
Gateway discovers active_backend
↓
Gateway assembles backend SSE URL
↓
Gateway passes the text/event-stream events to the frontend
Test:
curl -N http://localhost:8010/gateway/events/s1
Events expected at the beginning:
event: connected
data: {"session_id":"s1","component":"agent_gateway"}
After a message is sent to/gateway/message, the Gateway should output something like:
event: backend.selected
data: {"session_id":"s1","backend_id":"contas","backend_session_id":"s1"}
If a MIME type error appears, the active backend is probably not returning text/event-stream in/gateway/events/{session_id}.
28.16. Agent Gateway IC and NOC
The Gateway must issue its own events, different from the agents' internal events.
Events found in the project:
| Event | Meaning |
|---|---|
IC.GLOBAL_GATEWAY_RECEIVED |
Gateway received message from the channel |
IC.GLOBAL_BACKEND_SELECTED |
Gateway chose a backend |
IC.GLOBAL_BACKEND_HANDOVER |
There was a backend change during the conversation |
IC.GLOBAL_GATEWAY_COMPLETED |
Gateway completed the forwarding |
NOC.005 |
operational failure in the Gateway or in the call to the backend |
NOC.006 |
HTTP completion observed by the middleware |
These events do not replace the backend IC/NOC/GRL. They complement the end-to-end view.
In full traceability, you should be able to see:
IC.GLOBAL_GATEWAY_RECEIVED
IC.GLOBAL_BACKEND_SELECTED
IC.BACKEND_WORKFLOW_STARTED
IC.TOOL_CALLED
GRL.INPUT_STARTED
GRL.OUTPUT_COMPLETED
IC.BACKEND_WORKFLOW_COMPLETED
IC.GLOBAL_GATEWAY_COMPLETED
28.17. How to integrate the frontend with the Agent Gateway
The frontend should not directly call each agent backend.
Instead, it should point to:
POST http://localhost:8010/gateway/message
GET http://localhost:8010/gateway/events/{session_id}
The frontend continues to send a normalized message:
{
"channel": "web",
"payload": {
"text": "My bill was high",
"session_id": "s1"
}
}
The frontend does not need to know if the message was for Accounts, Offers or Support. This information may appear in metadata.selected_backend, but it should not become a business rule on the frontend.
28.18. Gateway Build with Docker
The Gateway Dockerfile uses:
FROM python:3.12-slim
WORKDIR /app
COPY agent_framework /agent_framework
COPY agent_gateway /app
RUN pip install --no-cache-dir -e /agent_framework -r requirements.txt
CMD ["uvicorn", "app.main:app", "--host", "0.0.0.0", "--port", "8010"]```
This assumes that, in the build context, the following directories exist:
```text
agent_framework/
agent_gateway/
Build:
docker build -t agent-gateway:local -f agent_gateway/Dockerfile.
Run:
docker run --rm -p 8010:8010 \
--env-file agent_gateway/.env \
agent-gateway:local
28.19. Agent Gateway implementation checklist
Before considering the Gateway ready, validate:
[ ] /health responds.
[ ] /backends lists all expected backends.
[ ] /backends/health can call each backend.
[ ] /debug/route chooses the correct backend for obvious messages.
[ ] /debug/route explains the reason for the decision.
[ ] /gateway/message forwards to the chosen backend.
[ ] response.metadata.selected_backend appears in the response.
[ ] response.metadata.global_route_decision appears in the response.
[ ] /debug/sessions shows active_backend after the first message.
[ ] /gateway/events/{session_id} returns text/event-stream.
[ ] handoff_backend works when a backend requests a switch.
[ ] IC.GLOBAL_* appears in observability.
[ ] NOC.005 appears in actual backend failures.
28.20. Common errors in the Agent Gateway
Error 1: Gateway chooses wrong backend
Common causes:
keywords too generic
priority poorly defined
insufficient examples
GLOBAL_MIN_ROUTER_CONFIDENCE too low
router mode used for ambiguous domain
Correction:
1. Test /debug/route.
2. Read the reason field.
3. Adjust domains, keywords, and examples.
4. If it remains ambiguous, use hybrid or supervisor.
Error 2: Gateway chooses correctly, but returns 502
This usually means that the chosen backend is down or does not expose/gateway/message.
Test:
curl http://localhost:8001/health
curl -X POST http://localhost:8001/gateway/message \
-H 'content-type: application/json' \
-d '{"channel":"web","payload":{"text":"teste","session_id":"s1"}}'
Error 3: SSE returns application/json instead of text/event-stream
The active backend needs to expose SSE correctly.
Test directly on the backend:
curl -i -N http://localhost:8001/gateway/events/s1
The expected header is:
content-type: text/event-stream
Error 4: Global session exists, but the active backend does not appear
Check:
curl http://localhost:8010/debug/sessions
Then send a message via/gateway/message. The active_backend is only defined after the Gateway successfully routes a message.
28.21. How to explain this architecture to a new developer
A simple way to teach it is:
The agent backend knows how to solve a type of problem.
The Gateway knows how to choose which backend should solve the problem.
The framework provides the reusable engines for both.
Therefore, when implementing a new agent, the developer must make two integrations:
1. Create the specialized backend using agent_template_backend.
2. Register this backend in agent_gateway/config/backends.yaml.
They should not change the frontend for each new agent. You also should not put the new agent's business rule inside the Gateway.
29. Context compression with ConversationSummaryMemory
This chapter explains the theory, architecture, and step-by-step process for implementing conversational context compression using ConversationSummaryMemory.
The motivation is simple: long corporate conversations accumulate many messages, tool results, MCP evidence, RAG context, routing decisions, operational errors, and user confirmations. If all this history is sent in full to the LLM at each turn, the agent becomes more expensive, slower, and more prone to extrapolating the context window.
ConversationSummaryMemory solves this problem by maintaining two levels of memory:
Raw memory
Complete history saved in the message repository.
It is used for auditing, replay, debugging, and traceability.
Summarized memory
Incremental summary of the old part of the conversation.
It is used to assemble the prompt without loading the entire history.
Recent messages
Most recent complete interactions.
They serve to preserve immediate details, confirmations, and local continuity.
The goal is not to erase the history. The goal is to separate complete persistence from useful context for inference.
29.1. Problem that compression solves
Without compression, the agent tends to use one of these strategies:
Strategy 1: send the entire history to the LLM
Problem: high cost, higher latency, and risk of context limit.
Strategy 2: send only the last N messages
Problem: the agent forgets important decisions made earlier.
Strategy 3: each agent builds its own memory
Problem: loss of standardization, inconsistent behavior, and difficult maintenance.
With ConversationSummaryMemory, the framework starts to follow a standardized strategy:
Old history → incremental summary
Recent history → full messages
Agent prompt → summary + recent messages + current message + MCP + RAG + business_context
This way, the agent maintains continuity in long conversations without turning the prompt into a complete session dump.
29.2. Difference between memory, checkpoint and state
It is important not to mix up three different concepts.
| Concept | Purpose | Example | Should it go to the prompt? |
|---|---|---|---|
state |
Transient data from the current LangGraph flow | intent, route, partial answer, tool results | Only curated fields |
| checkpoint | Technical resumption of the workflow | state persisted by LangGraph | Not directly |
| conversational memory | Semantic continuity of the conversation | summary, history, recent messages | Yes, in summary form |
The checkpoint allows you to recover the technical execution. Conversational memory helps the LLM understand what has already been discussed.
The rule of thumb is:
Checkpoint answers: where was the workflow?
State answers: What's happening in this turn?
ConversationSummaryMemory answers: what is important to remember from the previous conversation?
29.3. Where ConversationSummaryMemory enters the flow
Compression must come in before the agent prompt is assembled.
Recommended flow:
Channel / Frontend / API
↓
POST /gateway/message
↓
ChannelGateway.normalize()
↓
IdentityResolver
↓
SessionRepository
↓
MemoryRepository loads raw history
↓
ConversationSummaryMemory prepares context
↓
AgentWorkflow.ainvoke()
↓
Specialized agent
↓
AgentRuntimeMixin.build_messages()
↓
LLM
↓
Response
↓
Turn persistence and summary update
In other words, the agent should not know how to summarize the conversation. The agent should only receive the context prepared by the framework.
29.4. When compression kicks in
Compression is usually triggered by a message limit or context limit.
Example by number of messages:
MEMORY_SUMMARY_TRIGGER_MESSAGES=20
MEMORY_RECENT_MESSAGES_LIMIT=8
With this configuration:
When the session exceeds 20 messages:
old messages → summary
last 8 messages → preserved in full
Conceptual example:
M1 to M12 → enter the summary
M13 to M20 → remain complete in the prompt
M21 → current user message
In future turns, the framework can do incremental summarization:
Previous summary + new old messages → new updated summary
Latest messages → kept in full
29.5. What should be preserved in the summary
A good summary is not a generic paraphrase of the conversation. It must preserve useful information for operational continuity.
For corporate agents, preserve:
user's current objective
relevant channel and session
active agent/backend
routing decisions
current intent and relevant previous intents
resolved business_context
canonical identifiers, preferably masked when sensitive
explicit user confirmations
actions already performed
MCP tools called and key evidence
relevant operational errors
pending issues and next steps
domain restrictions already explained
Avoid preserving:
huge logs
complete stack traces
unnecessary raw payloads
complete tool responses when a structured summary is sufficient
unnecessary sensitive data
redundant or outdated content
29.6. Recommended architecture in the framework
The recommended implementation separates raw storage, summary storage, and context assembly.
agent_framework/memory/
├── message_history.py # current raw memory: append/list
├── summary_store.py # summary persistence by session_id
├── summary_memory.py # compression rule and context preparation
└── __init__ .py
Responsibilities:
ConversationMemory
Saves and lists raw messages.
ConversationSummaryStore
Saves and retrieves the incremental summary of the session.
ConversationSummaryMemory
Decides when to compress, calls the summarizing LLM when enabled,
preserves recent messages, and returns MemoryContext.
AgentRuntimeMixin.build_messages()
Injects memory_summary and recent_messages into the final prompt.
29.7. Configuration in .env
Include these properties in the backend .env:
ENABLE_CONVERSATION_SUMMARY_MEMORY=true
MEMORY_CONTEXT_STRATEGY=summary
MEMORY_HISTORY_LIMIT=80
MEMORY_RECENT_MESSAGES_LIMIT=8
MEMORY_SUMMARY_TRIGGER_MESSAGES=20
MEMORY_MAX_SUMMARY_CHARS=6000
MEMORY_SUMMARY_USE_LLM=true
MEMORY_INJECT_RECENT_MESSAGES=true
MEMORY_INJECT_SUMMARY=true
Meaning of the main options:
| Setting | Function |
|---|---|
ENABLE_CONVERSATION_SUMMARY_MEMORY |
Turns summary memory on or off |
MEMORY_CONTEXT_STRATEGY |
Defines the strategy: none, window or summary |
MEMORY_HISTORY_LIMIT |
Maximum number of messages loaded from the raw history |
MEMORY_RECENT_MESSAGES_LIMIT |
Number of recent messages preserved in full |
MEMORY_SUMMARY_TRIGGER_MESSAGES |
Number of messages that trigger compression |
MEMORY_MAX_SUMMARY_CHARS |
Approximate maximum summary length |
MEMORY_SUMMARY_USE_LLM |
Uses LLM to summarize; if false, uses deterministic fallback |
MEMORY_INJECT_RECENT_MESSAGES |
Injects recent messages into the prompt |
MEMORY_INJECT_SUMMARY |
Injects accumulated summary into the prompt |
For local development, a secure configuration is:
ENABLE_CONVERSATION_SUMMARY_MEMORY=true
MEMORY_CONTEXT_STRATEGY=summary
MEMORY_REPOSITORY_PROVIDER=memory
LLM_PROVIDER=mock
For a persistent environment:
ENABLE_CONVERSATION_SUMMARY_MEMORY=true
MEMORY_CONTEXT_STRATEGY=summary
MEMORY_REPOSITORY_PROVIDER=autonomous
ADB_TABLE_PREFIX=AGENTFW
29.8. Summary persistence
The summary should not be recalculated from scratch each turn. It must be persisted per session.
Logical model:
session_id
summary
last_message_id_summarized
message_count_summarized
metadata_json
created_at
updated_at
Destination examples:
SQLite → agent_memory_summaries
Oracle → <ADB_TABLE_PREFIX>_MEMORY_SUMMARY
MongoDB → memory_summaries
Memory → InMemoryConversationSummaryStore
This separation allows:
full replay using raw history
light prompt using summary
investigation/audit using both
future migration to corporate storage
29.9. Updating the backend main.py
The backend must initialize the raw memory and the summarized memory.
Example:
from agent_framework.memory.message_history import create_memory
from agent_framework.memory.summary_memory import create_conversation_summary_memory
memory = create_memory(settings)
summary_memory = create_conversation_summary_memory(
settings=settings,
message_history=memory,
llm=llm,
telemetry=telemetry,
)
workflow = AgentWorkflow(
llm,
memory,
telemetry,
analytics,
settings,
observer=observer,
tool_router=tool_router,
summary_memory=summary_memory,
)
The main point is that summary_memory must be created at the same level as the other shared backend engines.
29.10. Workflow update
The workflow must receive summary_memory and pass this resource on to the agents.
Example:
class AgentWorkflow:
def __init__(
self,
llm,
memory,
telemetry,
analytics,
settings,
observer=None,
tool_router=None,
summary_memory=None,
):
self.llm = llm
self.memory = memory
self.summary_memory = summary_memory
When setting up agent_kwargs:
agent_kwargs = {
"telemetry": telemetry,
"tool_router": tool_router,
"rag_service": rag_service,
"cache": cache,
"settings": settings,
"observer": observer,
"summary_memory": summary_memory,
}
This way, all agents receive the same summarized memory capacity.
29.11. Updating agents
Agents that already use build_messages() only need to prepare the memory context before assembling the prompt:
await self.prepare_memory_context(state)
messages = self.build_messages(
state,
system_prompt=system_prompt,
mcp_results=mcp_results,
rag_context=rag_context,
rag_metadata=rag_metadata,
)
Agents that assemble messages manually should be adjusted to use build_messages() whenever possible.
Before:
messages = [
{"role": "system", "content": system_prompt},
{"role": "user", "content": f"Message: {user_text}\nMCP: {tool_context}"},
]
After:
await self.prepare_memory_context(state)
messages = self.build_messages(
state,
system_prompt=system_prompt,
mcp_results=tool_context,
rag_context=rag_context,
rag_metadata=rag_metadata,
)
The architectural rule is:
We don't compress memory.
Agent does not duplicate history.
Agent calls prepare_memory_context().
Agent uses build_messages().
Framework injects summary, recent messages, MCP, RAG, and business_context.
29.12. How the summary appears in the prompt
The final prompt has a structure similar to this:
System:
You are a specialized corporate agent...
User:
Summary of the conversation so far:
The user is testing the account agent on the web channel. The session has already been routed to billing_agent, there was an MCP invoice query, and a previous SSE failure.
Latest messages:
User: My bill was high.
Agent: I checked the available data...
User: Can you explain the additional services?
Current user message:
I want to dispute this item.
Intent and route chosen by the framework:
intent=invoice_dispute route=billing_agent
Business context:
customer_key=***9999
contract_key=***1180
MCP evidence:
...
RAG context:
...
This format maintains continuity without sending the entire raw history.
29.13. Recommended IC/NOC/GRL events
For traceability, issue specific memory events.
| Event | When to issue |
|---|---|
IC.MEMORY_CONTEXT_LOADED |
History and summary have been loaded |
IC.MEMORY_COMPRESSION_TRIGGERED |
The configured limit has been reached |
IC.MEMORY_SUMMARY_UPDATED |
The incremental summary has been updated |
IC.MEMORY_CONTEXT_INJECTED |
The prompt received a summary/recent messages |
NOC.MEMORY_SUMMARY_FAILED |
Compression failed and the framework used fallback |
Payload example:
{
"session_id": "default:billing:s1",
"messages_total": 42,
"messages_summarized": 30,
"recent_messages_kept": 8,
"summary_chars": 3840,
"strategy": "summary"
}
These events help prove that summarized memory is really working.
29.14. Minimum functional test
After uploading the backend, run a long conversation using the same session_id.
Example:
SESSION_ID="summary-test-001"
for i in $(seq 1 25); do
curl -s -X POST http://localhost:8000/gateway/message \
-H 'content-type: application/json' \
-d "{\"channel\":\"web\",\"payload\":{\"text\":\"Test message $i about my high bill\",\"session_id\":\"$SESSION_ID\",\"customer_key\":\"11999999999\",\"contract_key\":\"3000131180\"}}" \
| jq '.metadata.memory // .memory // .'
done
Check:
The same session_id was used in all turns.
The raw history is still being saved.
After the configured limit, the summary was created or updated.
The prompt does not contain the complete history.
The latest messages remain complete.
IC.MEMORY_* events appear in observability when enabled.
29.15. Troubleshooting
| Symptom | Probable cause | Correction |
|---|---|---|
| Summary never appears | ENABLE_CONVERSATION_SUMMARY_MEMORY=false |
Enable in .env |
| Summary is not injected | MEMORY_INJECT_SUMMARY=false or agent does not use build_messages() |
Enable config and refactor agent |
| Recent messages do not appear | MEMORY_INJECT_RECENT_MESSAGES=false |
Enable config |
| Agent forgets old decisions | Trigger too high or poor summary | Reduce MEMORY_SUMMARY_TRIGGER_MESSAGES and improve summary prompt |
| Prompt was duplicated | Agent still injects history manually | Remove manual history and use build_messages() |
| Latency increased | Summary with LLM throughout the shift | Use incremental summary and only compress when limit is reached |
| Sensitive data appears in the summary | Lack of masking policy | Mask identifiers before saving/injecting |
29.16. Acceptance criteria
Consider the implementation correct when:
[ ] The backend initializes summary_memory in main.py.
[ ] The workflow receives and passes summary_memory to the agents.
[ ] The agents call prepare_memory_context(state).
[ ] The agents use build_messages() instead of assembling a duplicate manual prompt.
[ ] The raw history remains persistent.
[ ] The incremental summary is persisted by session_id.
[ ] The prompt contains summary + latest messages, but not the entire history.
[ ] Compression only runs when the configured limit is reached.
[ ] There is a fallback when the summarizer fails.
[ ] Memory IC/NOC appear in observability when enabled.
ConversationSummaryMemory should be treated as a framework capability, not as a rule for a specific agent. This way, every new agent inherits conversational continuity, cost control, lower latency, and better standardization.
30. Retrieval-Augmented Generation (RAG)
30.1. What is RAG?
RAG (Retrieval Augmented Generation) is an architecture that allows an agent to consult corporate documents before generating a response.
Without RAG, the LLM responds based solely on its training.
text User ↓ LLM ↓ Response
With RAG, the agent consults a document base before calling the model.
text User ↓ Retriever ↓ Relevant Documents ↓ LLM ↓ Reasoned Response
The main objective of RAG is to allow the agent to use updated corporate knowledge without the need for model retraining.
30.2. When to use RAG
RAG is indicated when the answer depends on documentary content.
Examples:
- Manuals
- Procedures
- Corporate policies
- Contracts
- FAQ
- Technical documentation
- Catalogs
- Regulatory standards
- Knowledge base
Typical questions:
- What is the cancellation policy?
- Explain the plan regulations.
- What does the onboarding procedure say?
- How does the return process work?
30.3. When NOT to use RAG
RAG does not replace operational inquiries.
The cases below should normally use MCP:
- View invoice
- Check order
- Check payment
- Check inventory
- Check protocol
- Update registration
- Open request
- Perform operational action
In these scenarios, the agent needs to consult transactional systems and not documents.
30.4. RAG versus MCP
| Status | MCP | RAG |
|---|---|---|
| Check payment | ✅ | ❌ |
| View order | ✅ | ❌ |
| Check ERP | ✅ | ❌ |
| Product manual | ❌ | ✅ |
| Internal procedure | ❌ | ✅ |
| Regulation | ❌ | ✅ |
| Corporate policy | ❌ | ✅ |
Rule of thumb:
text Systems → MCP Documents → RAG
30.5. Framework RAG Architecture
The framework separates the document retrieval step from the generation step.
text Document ↓ Loader ↓ Chunking ↓ Embeddings ↓ Vector Store ↓ Retriever ↓ RagService ↓ AgentRuntimeMixin ↓ Agent ↓ LLM
This separation allows components to be swapped without changing the agent implementation.
30.6. Framework Components
The framework provides a generic RAG architecture composed of the following elements:
- rag_service
- retriever
- embedding_provider
- vector_store
- graph_store
Responsibilities:
| Component | Responsibility |
|---|---|
| RagService | Orchestrates context retrieval |
| Retriever | Performs vector search |
| Embedding Provider | Generates embeddings |
| Vector Store | Stores vectors |
| Graph Store | Stores relationships for GraphRAG |
30.7. Configuration via .env
Example:
VECTOR_STORE_PROVIDER=sqlite
GRAPH_STORE_PROVIDER=memory
EMBEDDING_PROVIDER=mock
RAG_TOP_K=5
Description:
| Variable | Function |
|---|---|
| VECTOR_STORE_PROVIDER | Defines the vector database |
| GRAPH_STORE_PROVIDER | Defines the graph |
| EMBEDDING_PROVIDER | Defines the embedding provider |
| RAG_TOP_K | Number of documents retrieved |
| RAG_ENABLED | Enables or disables RAG |
30.8. Indexing Process
The indexing process takes place before the agent is executed.
text PDF ↓ Loader ↓ Chunking ↓ Embeddings ↓ Vector Store
During indexing:
- The document is loaded.
- The text is divided into chunks.
- Embeddings are generated.
- The vectors are persisted.
30.9. Chunking
Chunking is the process of dividing the document.
Example:
python splitter = RecursiveCharacterTextSplitter( chunk_size=1000, chunk_overlap=200, )
Parameters:
| Parameter | Function |
|---|---|
| chunk_size | Maximum chunk size |
| chunk_overlap | Overlap between chunks |
Trade-off:
Very small text chunks ↓ Little context Very large chunks ↓ Higher cost and more noise
30.10. Embeddings
Embeddings transform text into numerical vectors.
OCI example:
python embeddings = OCIGenAIEmbeddings( model_id="cohere.embed-multilingual-v3.0" )
Common providers:
- OCI Generative AI
- HuggingFace
- OpenAI Compatible
- Sentence Transformers
30.11. Vector Stores
The framework supports different vector stores.
FAISS
Suitable for:
- Local development
- POCs
- Prototypes
Oracle Vector Search
Suitable for:
- Production
- Persistence
- Scalability
- Oracle Autonomous Database
MongoDB Atlas Vector Search
Suitable for:
- MongoDB environments
- Cloud-native architectures
30.12. Retriever
The Retriever performs the vector search.
Example:
python retriever = vector_store.as_retriever( search_kwargs={ "k": 5 } )
Flow:
text Question ↓ Question embedding ↓ Vector search ↓ Top-K documents
30.13. RagService
RagService centralizes context retrieval.
Simplified example:
python class RagService: async def retrieve(self, query): docs = self.retriever.invoke(query) return "\n".join( doc.page_content for doc in docs )
The agent does not access the retriever directly.
It always uses RagService.
30.14. Integration with AgentRuntimeMixin
Agents typically use:
rag_context, rag_metadata = await self._retrieve_rag_context(state)
Internal flow:
text Agent ↓ AgentRuntimeMixin ↓ RagService ↓ Retriever ↓ Vector Store
The returned result contains:
- rag_context
- rag_metadata
Where:
| Field | Description |
|---|---|
| rag_context | Retrieved textual content |
| rag_metadata | Debug and audit information |
30.15. Integrating RAG with the Agent
Example:
rag_context, rag_metadata = await self._retrieve_rag_context(state) messages = [{ "role": "system", "content": system_prompt, }, { "role": "user", "content": f""" Question: {user_text} RAG Context: {rag_context} """ }]
The LLM starts to respond using documentary evidence.
30.16. RAG + MCP
The framework allows you to use both approaches simultaneously.
Example:
Question
What is the regulation of my plan?
Flow:
RAG
Question
What is my account balance?
Flow:
MCP
Question
Explain the policy and check my bill.
Flow:
RAG + MCP
Architecture:
text User
↓
Agent
↓
┌─────────────┐
│ MCP │
│ RAG │
└─────────────┘
↓
LLM
↓
Response
30.17. Oracle Vector Search
In corporate environments, Oracle Vector Search is recommended.
Advantages:
- Persistence
- High availability
- Backup
- Governance
- Integration with Autonomous Database
Example:
VECTOR_STORE_PROVIDER=oracle
EMBEDDING_PROVIDER=oci
30.18. GraphRAG
GraphRAG adds relationship-based knowledge.
Architecture:
text Document ↓ Entity Extraction ↓ Graph ↓ PGQL Query ↓ Context ↓ LLM
Use cases:
- Dependency mapping
- Relationships between products
- Complex catalogs
- Technical documentation
30.19. Observability
Recommended events:
- IC.RAG_QUERY
- IC.RAG_DOCUMENTS_FOUND
- IC.RAG_NO_RESULTS
- IC.RAG_RESPONSE_GROUNDED
Example:
python await self._emit_ic( "IC.RAG_QUERY", state, {"query": user_text}, )
30.20. Testing the RAG
Suggested flow:
- Upload document.
- Run indexing.
- Start backend.
- Ask a question.
- Check retrieved context.
- Check the generated response.
- Check observability.
Checklist:
- Did the Retriever find documents?
- Did Top-K return results?
- Was the context sent to the LLM?
- Did the response use evidence?
- Were the IC events emitted?
If all the answers are positive, the RAG implementation is working correctly.
30.21. Project Embeddings Generator
In addition to runtime retrieval, the project now has an embedding generator to load documents into the RAG before starting agent tests.
Main file:
scripts/generate_rag_embeddings.py
Internal components added to the framework:
agent_framework/src/agent_framework/rag/embedding_provider.py
agent_framework/src/agent_framework/rag/ingest.py
Responsibilities:
| File | Responsibility |
|---|---|
embedding_provider.py |
Creates the mock or oci embedding provider |
ingest.py |
Reads documents, breaks them into chunks, generates metadata, and saves them in the vector store |
generate_rag_embeddings.py |
Operational CLI for indexing project documents |
Operational flow:
Documents in ./docs
↓
File loader
↓
Chunking
↓
Embedding Provider
↓
Vector Store
↓
RagService.retrieve()
↓
AgentRuntimeMixin._retrieve_rag_context()
30.22. Embedding Generator Configuration
The main variables are in the .env:
VECTOR_STORE_PROVIDER=sqlite
GRAPH_STORE_PROVIDER=memory
RAG_TOP_K=5
RAG_NAMESPACE=default
RAG_DOCS_DIR=./docs
RAG_FILE_GLOBS=* .md,* .txt,* .yaml,* .yml,*.json
RAG_CHUNK_SIZE=1200
RAG_CHUNK_OVERLAP=200
EMBEDDING_PROVIDER=mock
MOCK_EMBEDDING_DIMENSIONS=384
OCI_EMBEDDING_MODEL=cohere.embed-multilingual-v3.0
OCI_EMBEDDING_ENDPOINT=
Description:
| Variable | Description |
|---|---|
VECTOR_STORE_PROVIDER |
Defines where the chunks and vectors will be stored |
RAG_DOCS_DIR |
Directory where documents will be read |
RAG_NAMESPACE |
Namespace used to separate knowledge bases |
RAG_FILE_GLOBS |
Types of files read by the indexer |
RAG_CHUNK_SIZE |
Maximum size of each chunk |
RAG_CHUNK_OVERLAP |
Overlap between chunks |
EMBEDDING_PROVIDER |
Embeddings provider: mock or OCI |
OCI_EMBEDDING_MODEL |
Embeddings model used in OCI |
OCI_EMBEDDING_ENDPOINT |
Optional endpoint for OCI embeddings |
For persistent local development, use:
VECTOR_STORE_PROVIDER=sqlite
EMBEDDING_PROVIDER=mock
SQLITE_DB_PATH=./data/agent_framework.db
For production with Oracle Autonomous Database / Oracle Vector Search, use:
VECTOR_STORE_PROVIDER=autonomous
EMBEDDING_PROVIDER=oci
OCI_COMPARTMENT_ID=ocid1.compartment.oc1..xxxx
OCI_REGION=sa-saopaulo-1
OCI_EMBEDDING_MODEL=cohere.embed-multilingual-v3.0
Important note:
VECTOR_STORE_PROVIDER=memory is not recommended for indexing via script,
because the content remains only in the memory of the process that executed the script.
For reusable local tests, use VECTOR_STORE_PROVIDER=sqlite.
30.23. How to Upload Documents to RAG
Create the document directory:
mkdir -p docs
Copy the documents to this directory:
docs/
identity_yaml_chapter_14_1_1_en.md
business_context_framework_translated_en.md
manual_operacional.md
Run the generator:
python scripts/generate_rag_embeddings.py \
--docs-dir ./docs \
--namespace default
Example with chunking adjustments:
python scripts/generate_rag_embeddings.py \
--docs-dir ./docs \
--namespace telecom_contas \
--chunk-size 1200 \
--chunk-overlap 200 \
--globs "*.md,* .txt,*.yaml"
Expected output:
RAG embedding generation completed
namespace: telecom_contas
files read: 3
chunks created: 42
documents saved: 42
30.24. How the Script Works Internally
The script performs these steps:
1. Loads settings from .env
2. Reads documents from RAG_DOCS_DIR or --docs-dir
3. Filters files using RAG_FILE_GLOBS or --globs
4. Divides the text into chunks
5. Creates metadata per chunk
6. Generates embeddings using EMBEDDING_PROVIDER
7. Saves chunks and vectors to the configured Vector Store
Metadata written by chunk:
{
"source": "manual_operacional.md",
"file_name": "manual_operacional.md",
"path": "/absolute/path/docs/manual_operacional.md",
"chunk_index": 1,
"chunk_total": 10,
"content_sha256": "..."
}
This metadata helps with auditing, debugging, traceability, and source display.
30.25. Embedding Providers
The framework now has a provider factory:
from agent_framework.rag.embedding_provider import create_embedding_provider
embedding_provider = create_embedding_provider(settings)
Available providers:
| Provider | Recommended use |
|---|---|
mock |
Local development, testing and pipeline validation |
oci |
Corporate environments and production |
The mock provider generates deterministic vectors locally. It should not be used for real semantic quality, but it is useful for validating ingestion, persistence, and RAG flow without relying on external calls.
The oci provider uses OCI Generative AI to generate real embeddings and should be used when the RAG needs corporate semantic search.
30.26. Integration with the Workflow
The backend workflow now creates the embedding provider and injects this provider into the RagService:
from agent_framework.rag.embedding_provider import create_embedding_provider
from agent_framework.rag.rag_service import RagService
self.embedding_provider = create_embedding_provider(settings)
self.rag_service = RagService(
settings,
embedding_provider=self.embedding_provider,
telemetry=telemetry,
)
This way, the runtime retrieval uses the same provider configured in the indexing.
Flow at question time:
User asks question
↓
AgentRuntimeMixin._retrieve_rag_context(state)
↓
RagService.retrieve(query, namespace)
↓
Question embedding
↓
Vector search
↓
Top-K chunks
↓
RAG context in the prompt
↓
LLM responds with reasoning
30.27. Generator Validation Checklist
After running the script, validate:
- The
docs/directory contains the expected files. - The
.envusesVECTOR_STORE_PROVIDER=sqliteorautonomous. - The namespace used in the script is the same namespace used by the agent.
- The script reported
chunks createdgreater than zero. - The SQLite or Oracle database received records in
rag_documentsorAGENTFW_RAG_DOCUMENT. - The agent calls
_retrieve_rag_context(state). - The agent's return includes
rag_metadata.document_countgreater than zero when the question finds context.
Quick query in SQLite:
sqlite3 ./data/agent_framework.db \
"select namespace, count(*) from rag_documents group by namespace;"
Quick query in Oracle:
select namespace, count(*)
from AGENTFW_RAG_DOCUMENT
group by namespace;
31. Conclusion
The agent_template_backend provides the corporate backbone for new agents. The implementation of a new agent should be limited to the domain: prompts, rules, tools, clients, schemas, and specific decisions.
The correct standard is:
Framework = reusable engine
Agent = business customization
MCP = standardized boundary with external systems
Config YAML = changeable behavior without touching the engine
IC/NOC/GRL = corporate traceability
A developer should not just copy files. They must understand that each change represents an architectural decision:
Create agent → defines the domain logic.
Register workflow → makes the agent executable by LangGraph.
Adjust state → shares data between nodes.
Configure agents → declares the agent to the framework.
Configure routing → teaches the framework when to call the agent.
Configure tools → declares external capabilities.
Configure MCP → connects tools to systems or mocks.
Configure identity → normalizes business keys.
Issue IC/NOC/GRL → makes the execution auditable.
Test gateway → validates the actual end-to-end flow.
Following this model, new agents can be created with simpler standardization, scalability, traceability, and maintenance.
32. Final delivery with Agent Gateway
At the end of the implementation, the recommended delivery should contain four clearly separated projects or directories:
agent_framework/
reusable library with workflow engines, routing, guardrails,
judges, supervisor, memory, checkpoint, observability and MCP tool router
agent_template_backend/
specialized backend of an agent, with domain, prompts, tools,
state, workflow and its own configurations
agent_gateway/
global supervisor that routes conversations between multiple agent backends
agent_frontend/
Web, WhatsApp or Voice interface that talks to the Agent Gateway
The correct relationship is:
Frontend
calls Agent Gateway
Agent Gateway
chooses the backend
Agent backend
executes the specialized workflow
MCP Server
runs or simulates business tools
Framework
provides reusable engines for gateway and backends
32.1. Final local upload sequence
A complete local sequence can be:
# 1. Upload agent MCP, if any
cd mcp_servers/telecom_mcp_server
python -m uvicorn main:app --host 0.0.0.0 --port 8100 --reload
cd mcp_servers/telecom_mcp_server
python -m uvicorn main:app --host 0.0.0.0 --port 8200 --reload
# 2. Upload the Accounts agent backend
cd agent_template_backend
cp .env.example .env
python -m uvicorn app.main:app --host 0.0.0.0 --port 8000 --reload
# 3. Upload Agent Gateway
cd agent_gateway
cp .env.example .env
export PYTHONPATH=../agent_framework/src:.
python -m uvicorn app.main:app --host 0.0.0.0 --port 8010 --reload
# 4. Upload frontend
cd agent_frontend
npm install
npm run dev
32.2. Final test sequence
# Live gateway
curl http://localhost:8010/health
# Registered backends
curl http://localhost:8010/backends
# Backend health
curl http://localhost:8010/backends/health
# Route decision
curl -X POST http://localhost:8010/debug/route \
-H 'content-type: application/json' \
-d '{"channel":"web","payload":{"text":"My bill was high","session_id":"s1"}}'
# Real end-to-end message
curl -X POST http://localhost:8010/gateway/message \
-H 'content-type: application/json' \
-d '{"channel":"web","payload":{"text":"My bill was high","session_id":"s1","msisdn":"11999999999"}}'
# Global sessions
curl http://localhost:8010/debug/sessions
# SSE via Gateway
curl -N http://localhost:8010/gateway/events/s1
32.3. Architectural acceptance criteria
The implementation is architecturally correct when:
[ ] the frontend does not know individual URLs of the agent backends;
[ ] the Gateway does not contain a specific business rule for billing, offers or support;
[ ] each backend remains independent;
[ ] each backend uses the framework engines;
[ ] the Gateway uses the framework's GlobalSupervisorRouter;
[ ] global routing is observable;
[ ] each backend change generates metadata and a handoff event;
[ ] the MCP servers remain pluggable by backend/agent;
[ ] the global session and the backend session are preserved in the metadata;
[ ] the developer can test the route before testing the actual execution.
With this design, adding a new agent does not require rewriting the frontend or copying logic between backends. The developer creates the specialized backend, registers it in the Agent Gateway, and lets the framework take care of the cross-cutting engines.
